- Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- LF Driver: 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
- HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
- Crossover: 2 kHz
- Maximum SPL: 131 dB peak, 128 dB continuous (dB SPL @ 1 m)
- Frequency Response: 53 Hz – 20 kHz (+/- 3 dB)
- Frequency Range: 46 Hz – 22 kHz (-10 dB)
- Horn Coverage: 90° H x 60° V nominal
- Equalization: Contour Switch Low and High Frequency +3dB Boost

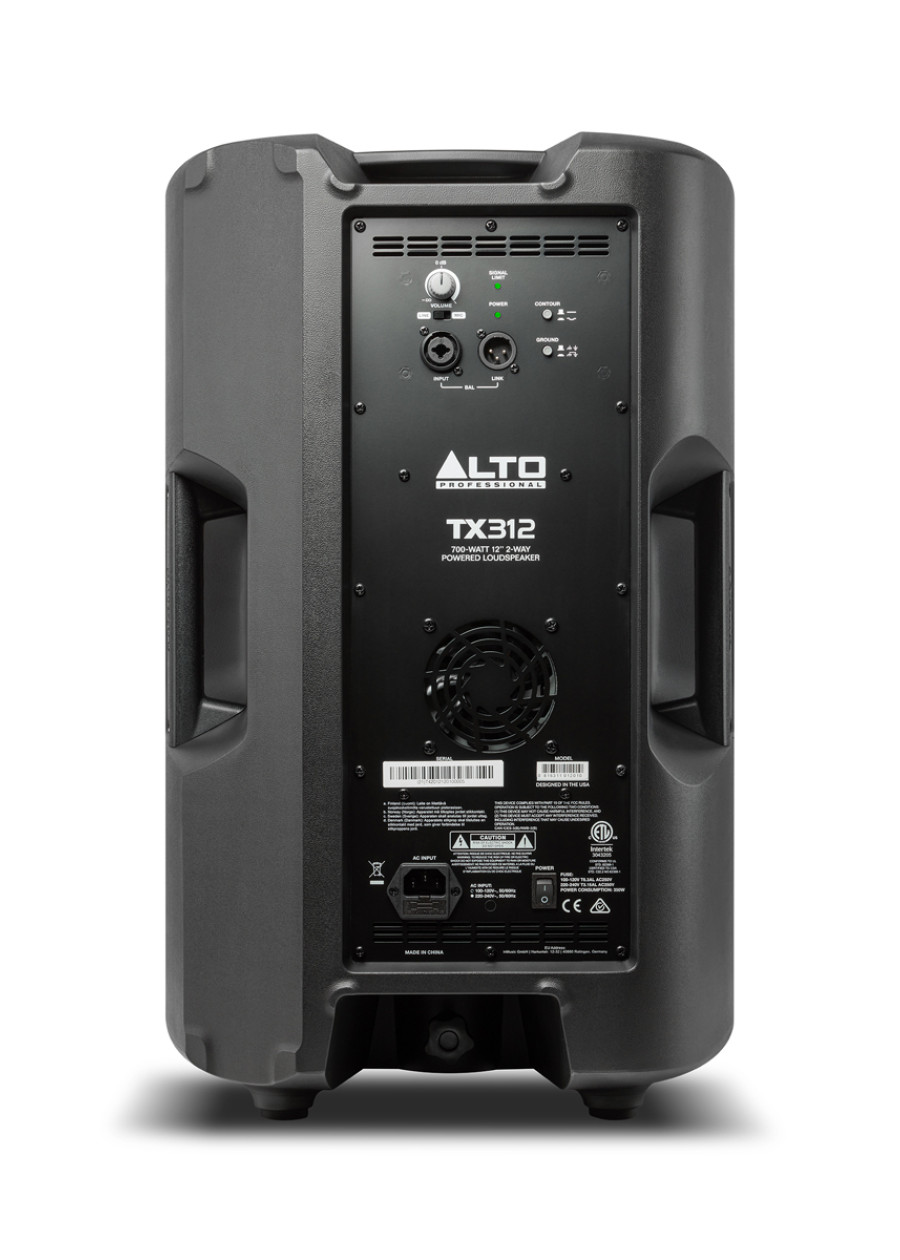

- Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
- Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
- Indicators: 2 x Power LED (front and rear), Clip limiter LED
- Protection: Electronic clip, Thermal and transducer overdrive protection
- Power Connection: IEC with Mains Fuse
- AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
- Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
- Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor
- Dimensions: (H x W x D): 23.8” x 13.9” x 13.8” / 605mm x 354mm x 350mm
- Net Weight: 35.9 lbs. / 16.3 kg.
- Design Origin: Designed and tuned in the USA
Lisainformatsioon
| Tootja | ALTO |
|---|---|
| Mudel | TX312 |
