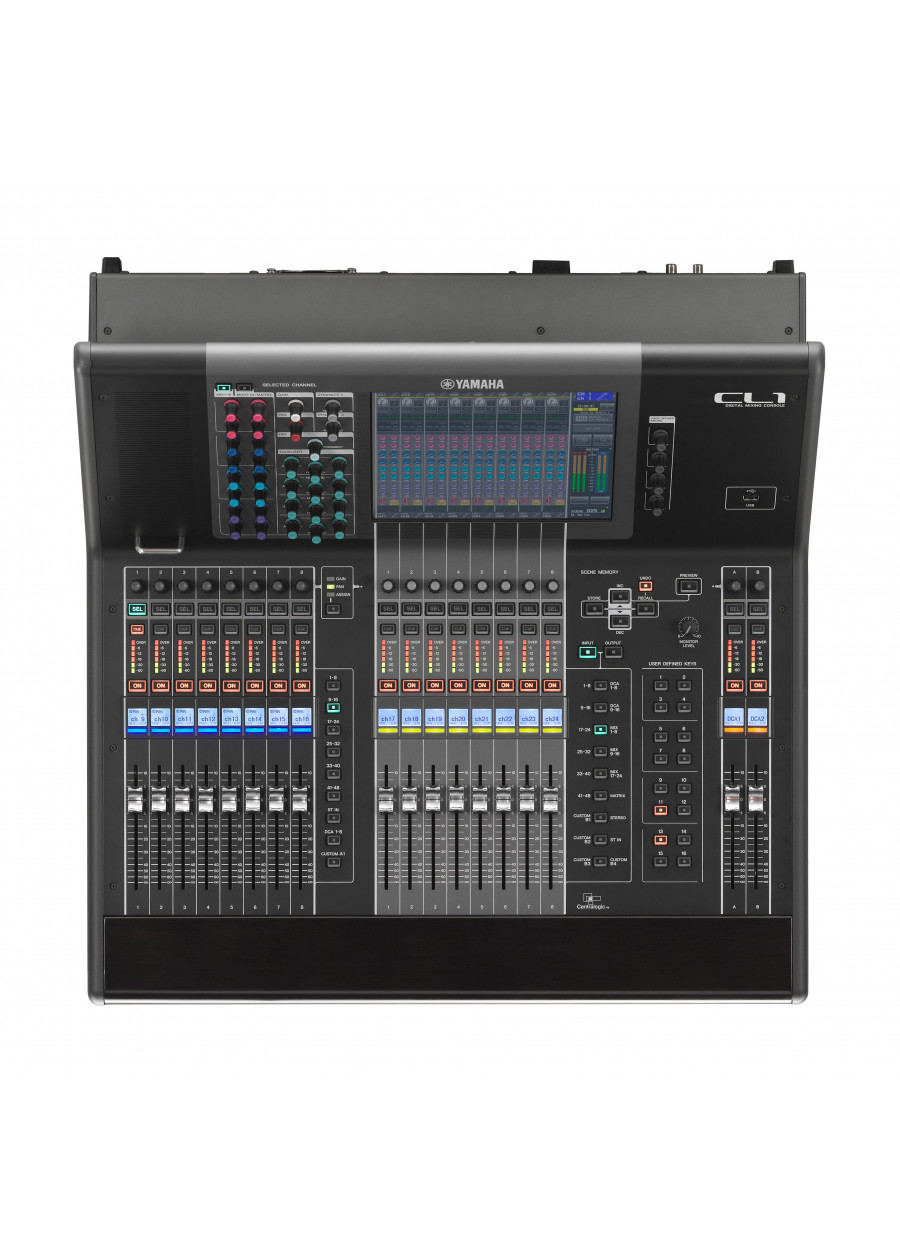

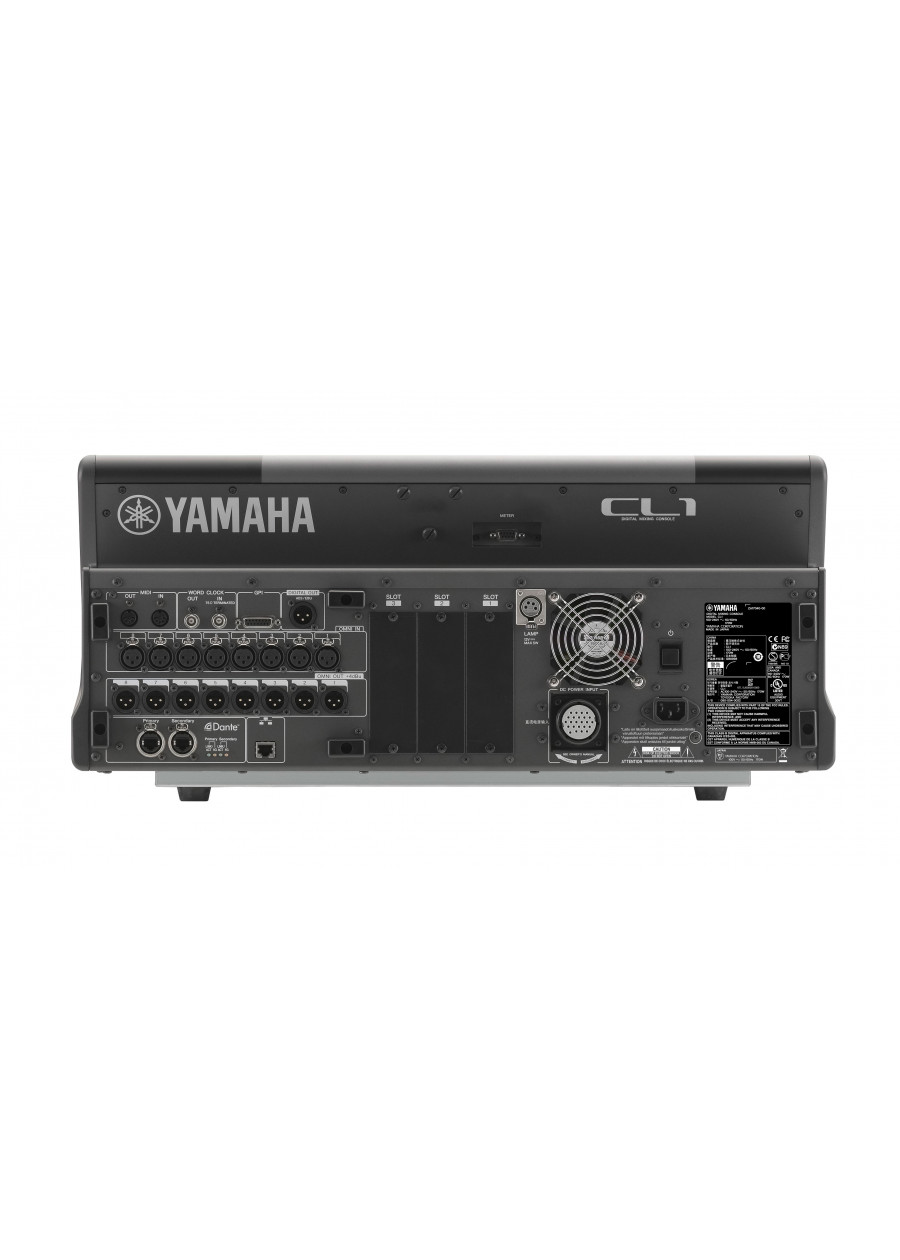

- 48 Mono, 8 Stereo Inputs
- 16 Channels and 2 Master Fader
- Internal Sampling Frequency 44,1 kHz / 48 kHz
- External Sampling Frequency 44,1 kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48 kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
- Dimensions: 648 x 299 x 667 mm
- Weight: 24 Kg
- Optional Meter bridge
I/O RACK
R Series I/O racks employ Dante network audio protocol for
exceptional flexibility and freedom in setup and placement,
while delivering natural, musical sound that brings out the
full sonic potential of mixing consoles and other system
components.
more information about R Series.
Rio3224-D
The 5U size Rio3224-D provides 32 ins, 16 outs, and four AES/EBU outputs.
Rio1608-D
The 3U size Rio1608-D has 16 ins and 8 outs.
RSio64-D
The RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs
RMio64-D
The RMio64-D Dante/MADI conversion I/O rack is here. It supports a wide range of broadcast and live sound applications with extraordinary flexibility, and without getting in the way.
Ri8-D
The 1U size Ri8-D has 8 ins.
Ro8-D
The 1U size Ro8-D has 8 outs.
Option

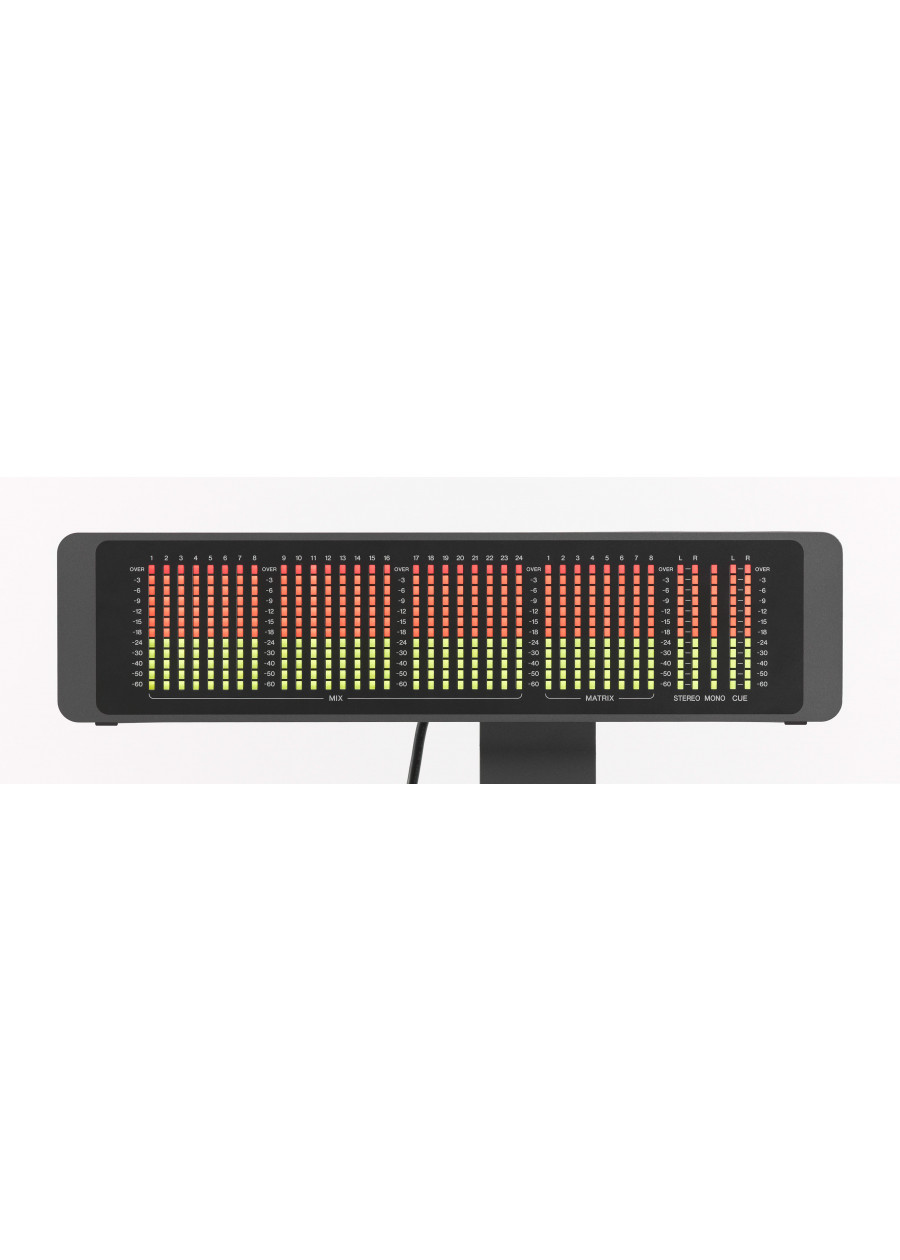

- MBCL
-
Peak Meter Bridge for CL3 and CL1.
- Mini-YGDAI Cards
-
MY (Mini-YGDAI) series expansion cards for use in the option I/O slots of digital mixers and DME. 3rd-party cards also available.
- PW800W
-
The PW800W is extremely compact and lightweight (3U, 10kg). Thanks to its high efficiency, the low speed cooling fans are extremely quiet. PW800W can be added as a redundant power supply for CL Series or M7CL. When using with PM5D, two units can be serially connected to achieve failsafe operation. PW800W accepts 100 - 240 volts so it can be used anywhere.
- LA1L
-
LED Gooseneck Console Lamp.
Lisainformatsioon
| Tootja | YAMAHA |
|---|---|
| Mudel | CL1 |
