BODY
- Body Style: ES, Archtop
- Body Shape: Riviera
- Body Material: Layered Maple
- Top: Layered Maple
- Back: Layered Maple
- Side: Layered Maple
- Centerblock: Maple
- Binding: Single ply cream - top, back and fretboard
- Body Finish: Gloss
NECK
- Profile: Rounded "C"
- Scale Length: 628 mm / 24.724 in
- Fingerboard Material: Laurel
- Fingerboard Radius: 305 mm / 12.007 in
- Neck Material: Mahogany
- Fret Count: 22
- Frets: Medium Jumbo
- Nut Material: Graph Tech® NuBone®
- Nut Width: 43 mm / 1.692 in
- Inlays: Trapezoid
- Joint: Glued in; Set Neck
HARDWARE
- Finish: Nickel
- Bridge: LockTone™ Tune-O-Matic™
- Tailpiece: Frequensator

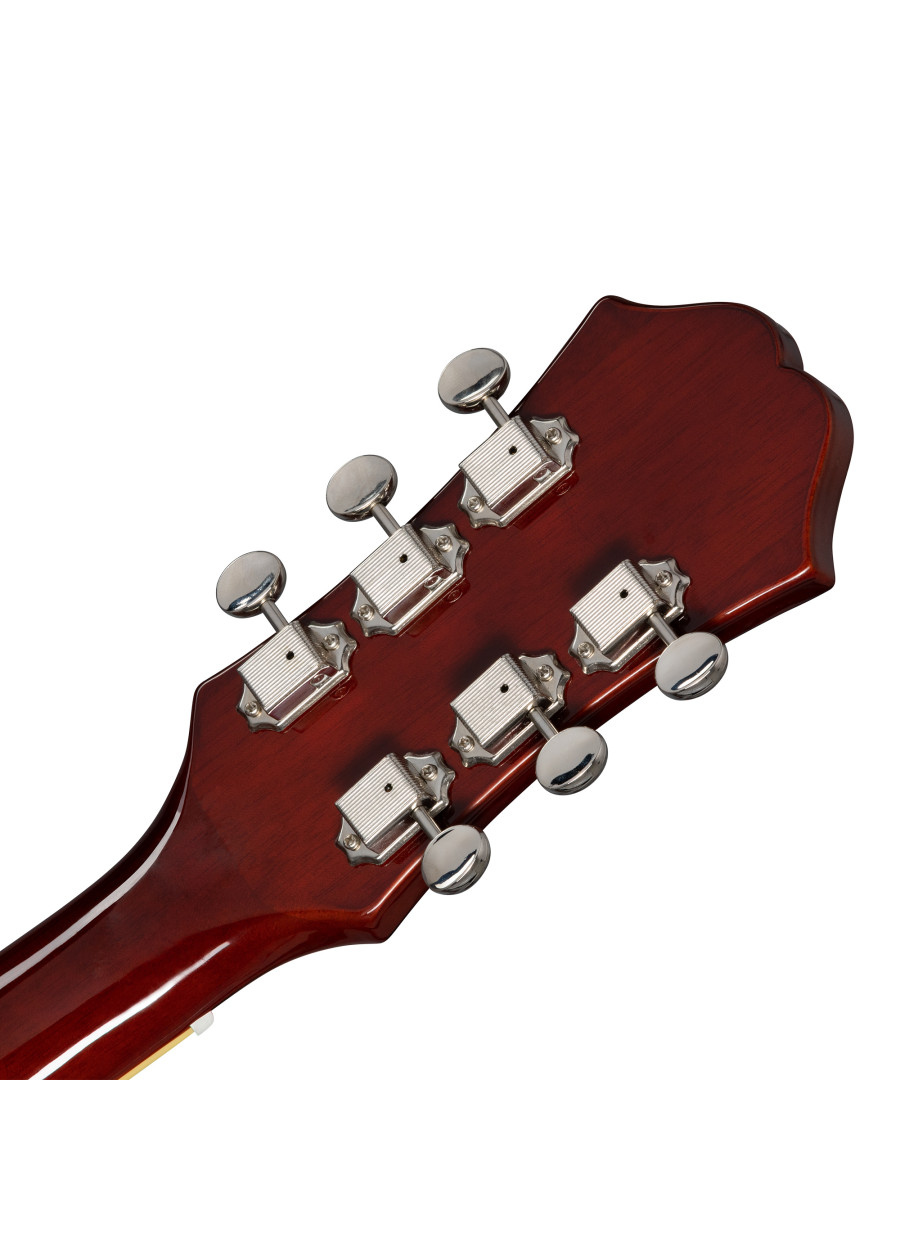

- Tuning Machines: Epiphone Vintage Deluxe metal button with press in bushing
- Pickguard: Riviera with foil "E" logo, 3-ply
- Truss Rod: Dual Action
- Control Knobs: Black Top Hat knobs with metal inserts
- Switch Tip: Black
- Switch washer: None
- Jack Plate Cover: None
- Plastic Parts: Black; PVC
- Strap Buttons: 2 - bottom and back of heel
- Mounting Rings: Black
- Pickup Covers: Nickel
ELECTRONIS
- Neck Pickup: Epiphone PRO Mini Humbucker™ R
- Bridge Pickup: Epiphone PRO Mini Humbucker™ T
- Controls: 2 Volume, 2 Tone, CTS® potentiometers
- Pickup Selector: 3-way Epiphone toggle
- Output Jack: Heavy Duty Epiphone 1/4" Output Jack
MISCELLANEOUS
- Strings Gauge: .010, .013, .017, .026, .036, .046
- Case: Optional 335/Casino-Type Hard Case (6 & 12 string) 940-E519; Casino/ES-335 EpiLite™ Case 940-E519HG
Lisainformatsioon
| Tootja | EPIPHONE |
|---|---|
| Mudel | EORRTNH1 |
