INPUTS
- INPUT: impedance 500 Kohm, max. voltage 9 Vpp
- EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp
CONTROLS
- GAIN: -46 dB to +23 dB range
- MASTER VOLUME
- LINE OUT LEVEL
- MUTE switch

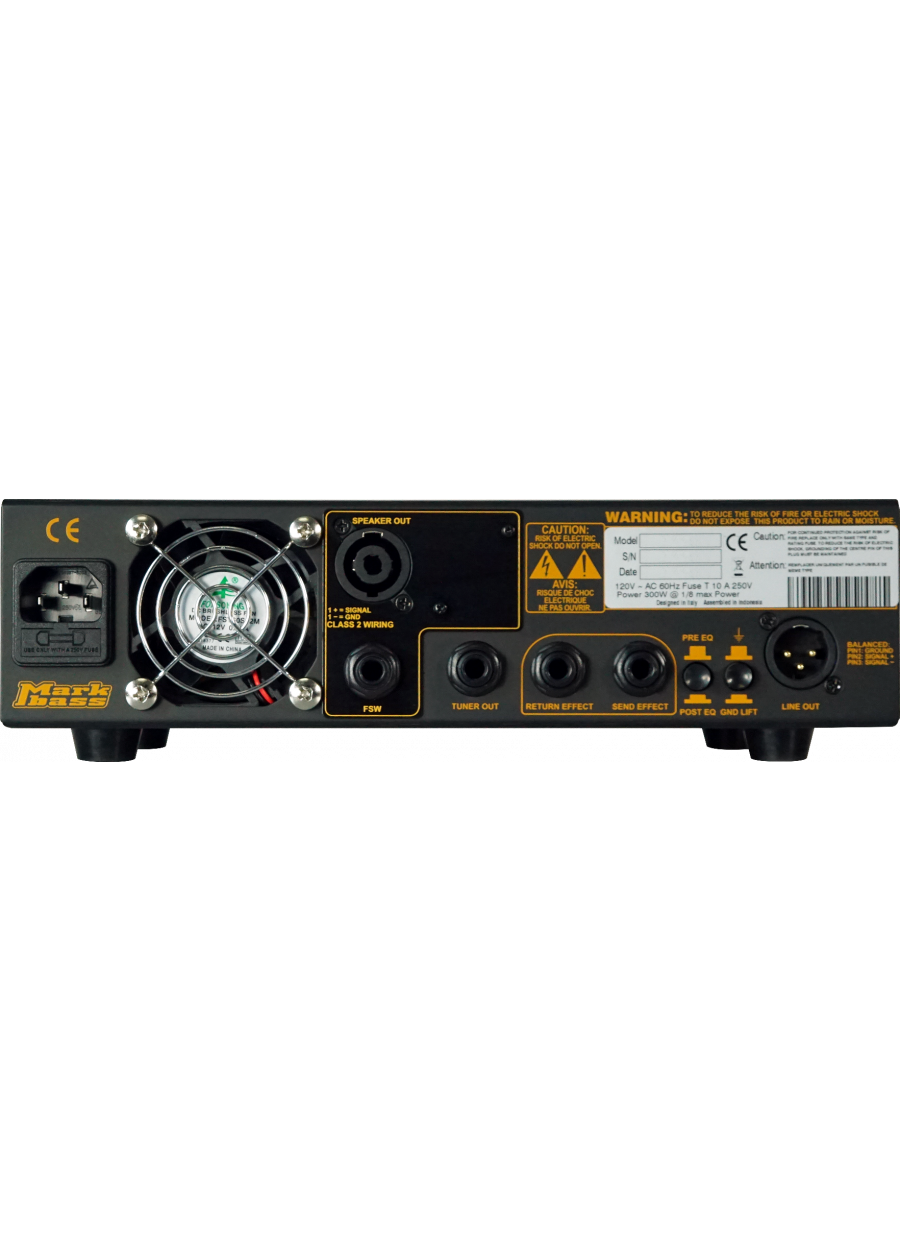

- GROUND LIFT (switch on rear panel)
- PRE/POST EQ (switch on rear panel)
- FSW input for (optional) footswitch to turn on/off EQ1 and EQ2
EQUALIZATION
EQ1
- ULTRALOW: Level ±16 dB (Freq. 65Hz)
- LOW: Level ±16 dB (Freq. 180Hz)
- MID: Level ±16 dB (Freq. 500 Hz)
- HIGH MID: Level ±16 dB (Freq. 1.4 KHz)
- HIGH: Level ±16 dB (Freq. 3.8 KHz)
EQ2
- OLD SCHOOL: Variable LOW PASS From 20KHz to 200Hz
- MILLERIZER: 5-12 KHz BAND PASS Filter (Level 0 /+10 dB)
OUTPUTS
- LINE OUT: balanced XLR, max. voltage 20 Vpp
- EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
- TUNER OUT: unbalanced, max. voltage 2 Vpp
- SPEAKER OUT: speakon
OTHER
- WEIGHT: 5.29 lbs / 2.4 Kg
- WIDTH: 10.87 in. / 27.6 cm
- DEPTH: 9.84 in. / 25 cm
- HEIGHT: 3.27 in. / 8.3 cm
- OUTPUT POWER: 500W RMS @ 4 ohms / 300W RMS @ 8 ohms
- POWER REQUIREMENT: 100/120V; 230V; 240V - 50/60Hz (Voltage is factory preset according to region of sale)
Lisainformatsioon
| Tootja | MARKBASS |
|---|---|
| Mudel | LITTLEMARCUS250 |
