- Integrated hardware/software system includes sampler, arranger, mixer, sound library, FX, and more
- 8 GB MASCHINE library with samples, one-shots, sliced loops, sampled instruments, drums synths, presets, patterns, drum kits, and songs
- Includes 45 GB KOMPLETE 12 SELECT library
- 25 pro-quality studio and creative FX including filter, EQ, delay, reverb and compressor

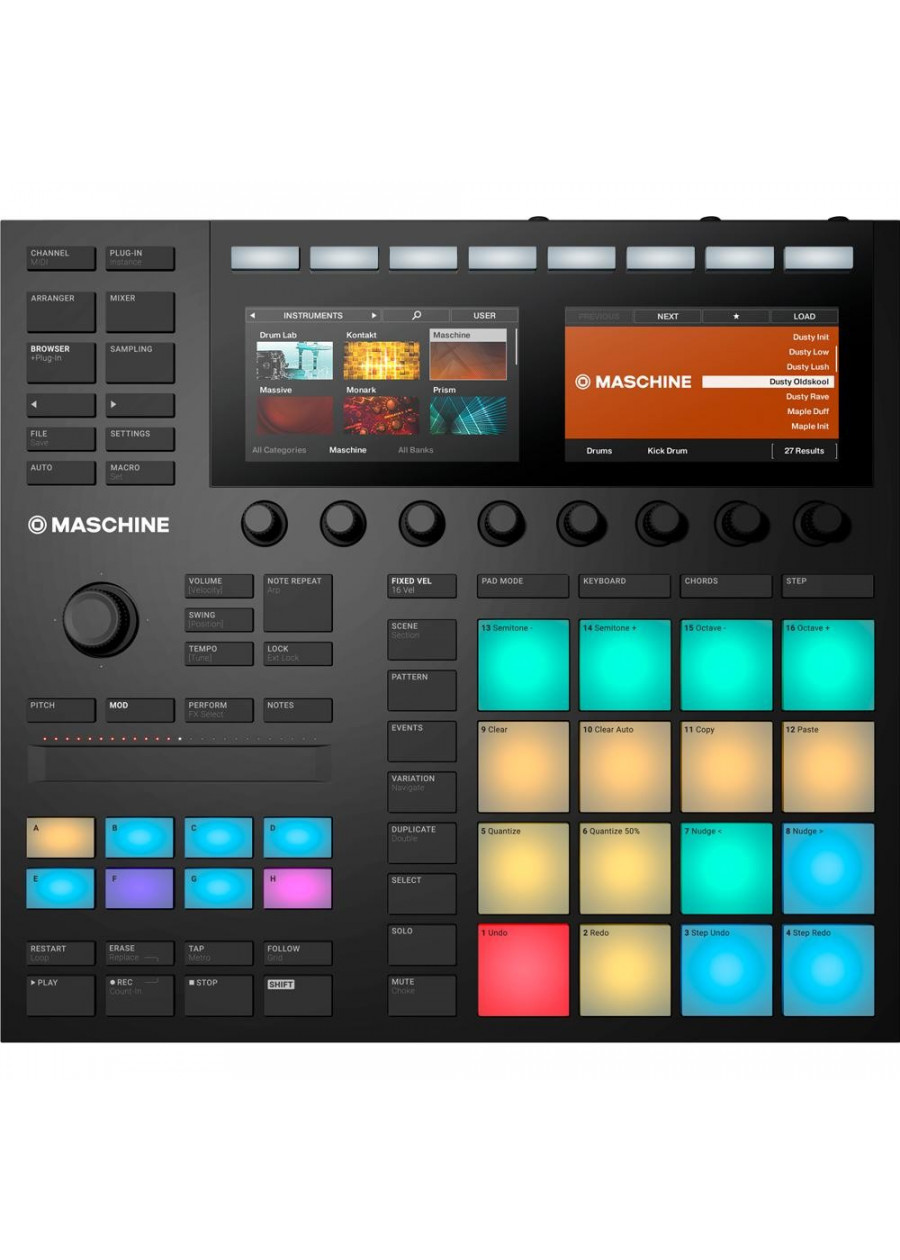

- 2 high-resolution RGB color displays for precision sample slicing, sound tweaking, note editing, mixing, browsing, and more
- 16 large, ultra-sensitive pads make two-handed drumming easy

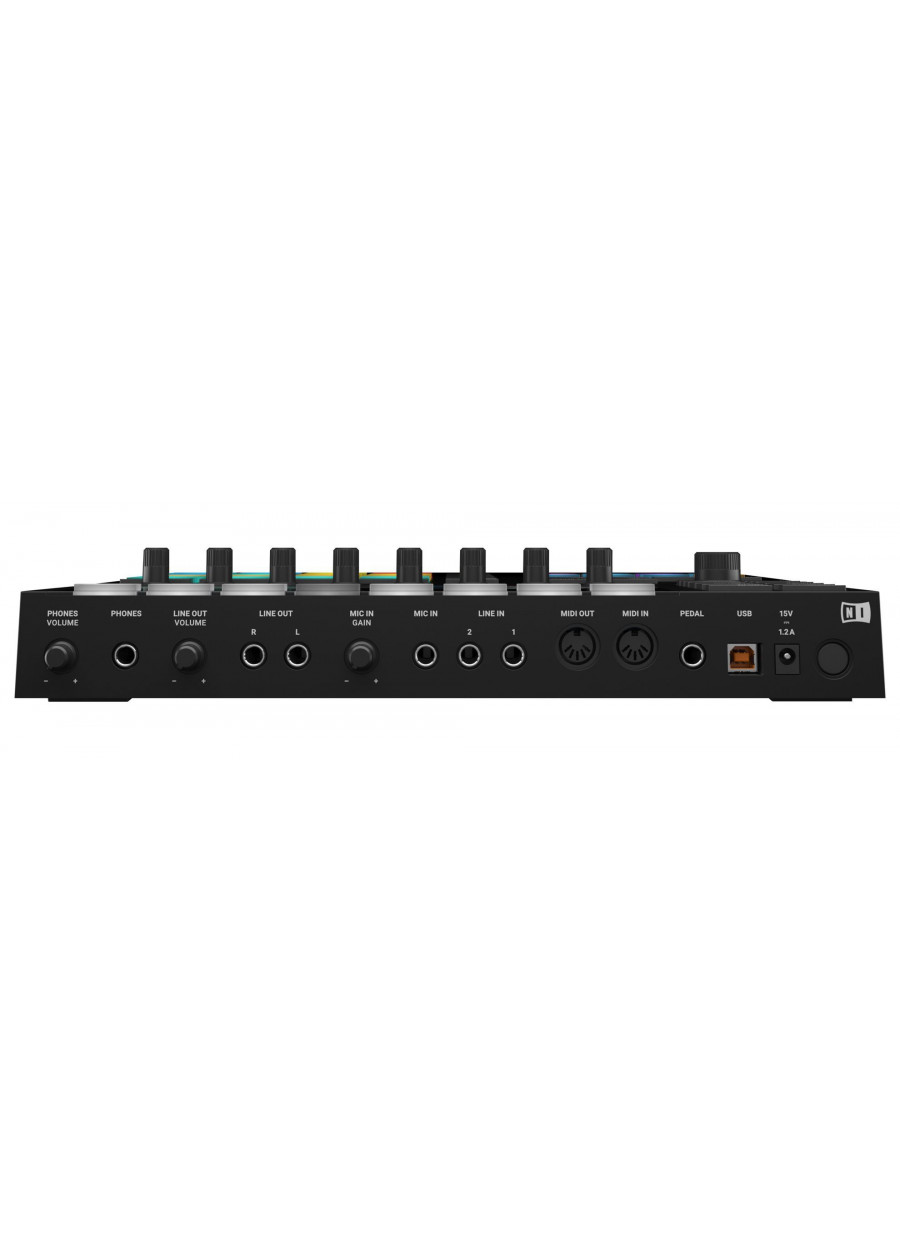

- Pro-grade, 96 kHz / 24-bit audio interface with 2 x ¼” TRS line outputs, 2 x ¼” TRS line inputs, ¼” dynamic mic input, stereo headphone output, 1 x MIDI In, 1 x MIDI out; 1 x Footswitch
- 8 touch sensitive knobs for parameter tweaking
- Smart Strip for strumming notes, pitch bending sounds, performing with FX, and more
- Four-directional push encoder for browsing, navigating, adjusting levels and balance
- Powered via USB 2.0 or with the included 15V 1.2A power supply unit
- Seamless integration with KOMPLETE, NKS-ready instruments, MASCHINE Expansions, and the new KOMPLETE KONTROL S49/S61 Keyboards
- Classic groovebox features including 16 velocity levels, swing, pad link, note repeat, step sequencer, and vintage MPC 60/SP 1200 sampling emulation
- Compatible with all major DAWs (including Ableton Live, Logic Pro, Cubase, GarageBand, FL Studio, Avid Pro Tools, PreSonus Studio One, and more) as a VST, Audio Units, or AAX 32 and AAX 64 plug-in with full multi-core support
AUDIO INTERFACE SPECIFICATIONS
All results measured in accordance with the Audio Engineering
Society’s AES17 standards.
| Line-In | |
| Full Scale Level | +18,6 dBu |
| Dynamic Range | 100 dB |
| THD+N | 0.003 % |
| Frequency Response: | 20Hz-20kHz +/- 0.1 dB |
| Crosstalk L/R | -96 dB |
| Mic Input (max gain) | |
| Full Scale Level | -32 dBu |
| Dynamic Range | 90 dB |
| THD+N | 0.01 % |
| Frequency Response: | 20Hz-20kHz +/- 0.4 dB |
| Mic Input (min gain) | |
| Full Scale Level | -3.4 dBu |
| Dynamic Range | 102 dB |
| THD+N | 0.004 % |
| Frequency Response: | 20Hz-20kHz +/- 0.15 dB |
| Line Out | |
| Maximum Output Level | +18.0 dB |
| Dynamic Range | 102 dB |
| THD+N | 0.003 % |
| Frequency Response: | 20Hz-20kHz +/- 0.5 dB |
| Crosstalk L/R | -100 dB |
| Headphone Out | |
| Maximum Output Level | 29.4 mW @ 33 Ohm load |
| Dynamic Range | 102 dB |
| THD+N | 0.007 % |
| Frequency Response: | 20Hz-20kHz +/- 0.35 dB |
| Crosstalk L/R | -60 dB |
Lisainformatsioon
| Tootja | KOMPLETE |
|---|---|
| Mudel | MMK3 |
