Tech Specs
- Pedal Type:Guitar/Bass Octave
- Effects:Octave-up, Octave-down, Poly Chord Mode, Vintage Mode
- Inputs:1 x 1/4"
- Outputs:1 x 1/4" (main out), 1 x 1/4" (direct out)
- Bypass Switching:Buffered
- Power Source:9V DC power supply required (sold separately)
- Power Usage:55mA
- Batteries:1 x 9V
- Height:2.32"
- Width:2.87"
- Depth:5.07"
- Weight:0.97 lbs.
- Manufacturer Part Number:OC-5
SPECIFICATIONSNominal Input Level-20 dBuInput Impedance1 M
ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended
Load Impedance10 k ohms or greaterBypassBuffered
bypassControlsPedal switch, GUITAR/BASS switch, VINTAGE/POLY
switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE
knobIndicatorCHECK indicator (Serves also as battery check
indicator)ConnectorsINPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type

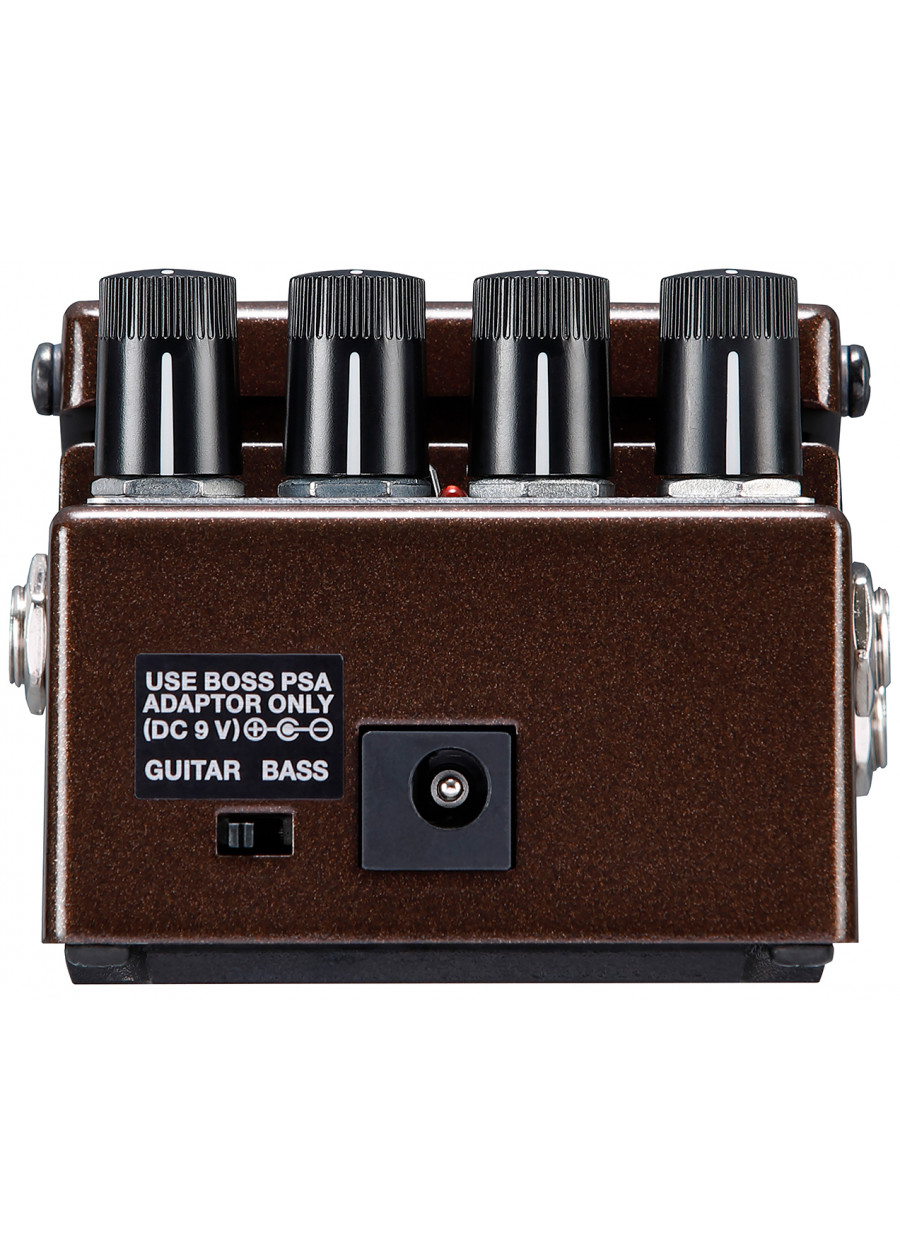

DC IN jackPower SupplyAlkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)Current Draw55 mAExpected
battery life under continuous useAlkaline: Approx. 7 hours*These
figures will vary depending on the actual conditions of
use.AccessoriesOwner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and
"Information")
Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor:
PSA seriesSIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)440 g
1 lb
Lisainformatsioon
| Tootja | BOSS |
|---|---|
| Mudel | OC5 |
