TECHNICAL SPECIFICATIONS
- CODE: 39694
- BOTH CHANNEL DRIVEN 8 OHM 1% THD CONTINOUS/IMPULSIVE: 230/250
- BOTH CHANNEL DRIVEN 4 OHM 1% THD CONTINOUS/IMPULSIVE: 350/400
- BRIDGE 8OHM 1% THD: 700/800
- INPUT IMPEDANCE: 20KBALANCED
- SIGNAL TO NOISE RATIO S/N: >100DB
- TOTAL HARMONIC DIST. (1KHZ-4OHM): < 0.03%
- FREQUENCY RESPONSE: 20HZ-40KHZ -6DB
- DAMPING FACTOR: > 400
- CLASS: AB
- MAXIMUM POWER CONSUPTION: 1000VA
- POWER SUPPLY VOLTAGE: 220-230 VAC 50/60 HZ
- PROTECTIONS: SHORT CIRCUIT / THERMAL

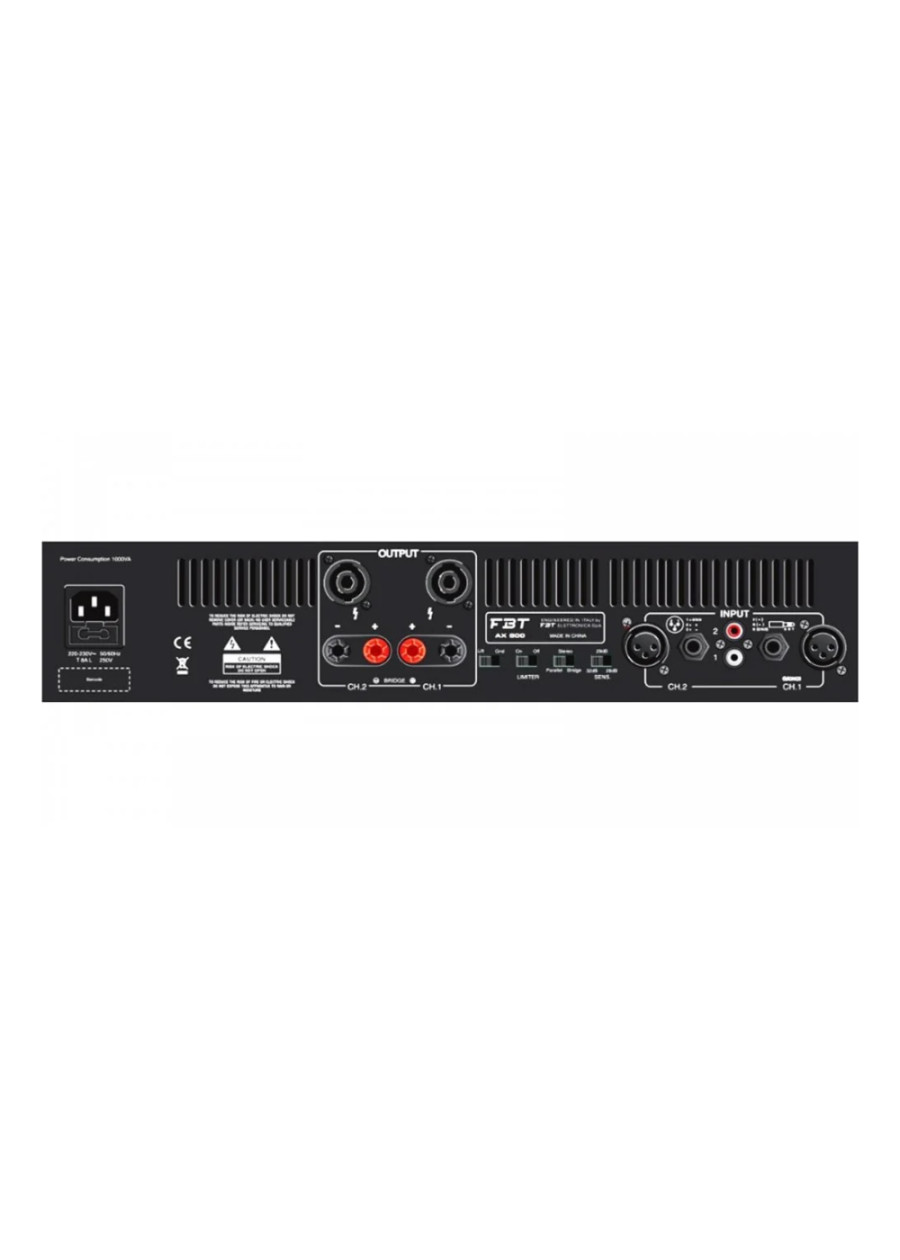

- CONNECTORS: IN: XLR/JACK - OUT: SPEAKON/BINDING POST
- NET DIMENSIONS (WXHXD): 482X88X290 / 19”X3.5”X11.4”
Lisainformatsioon
| Tootja | FBT |
|---|---|
| Mudel | AX800 |
