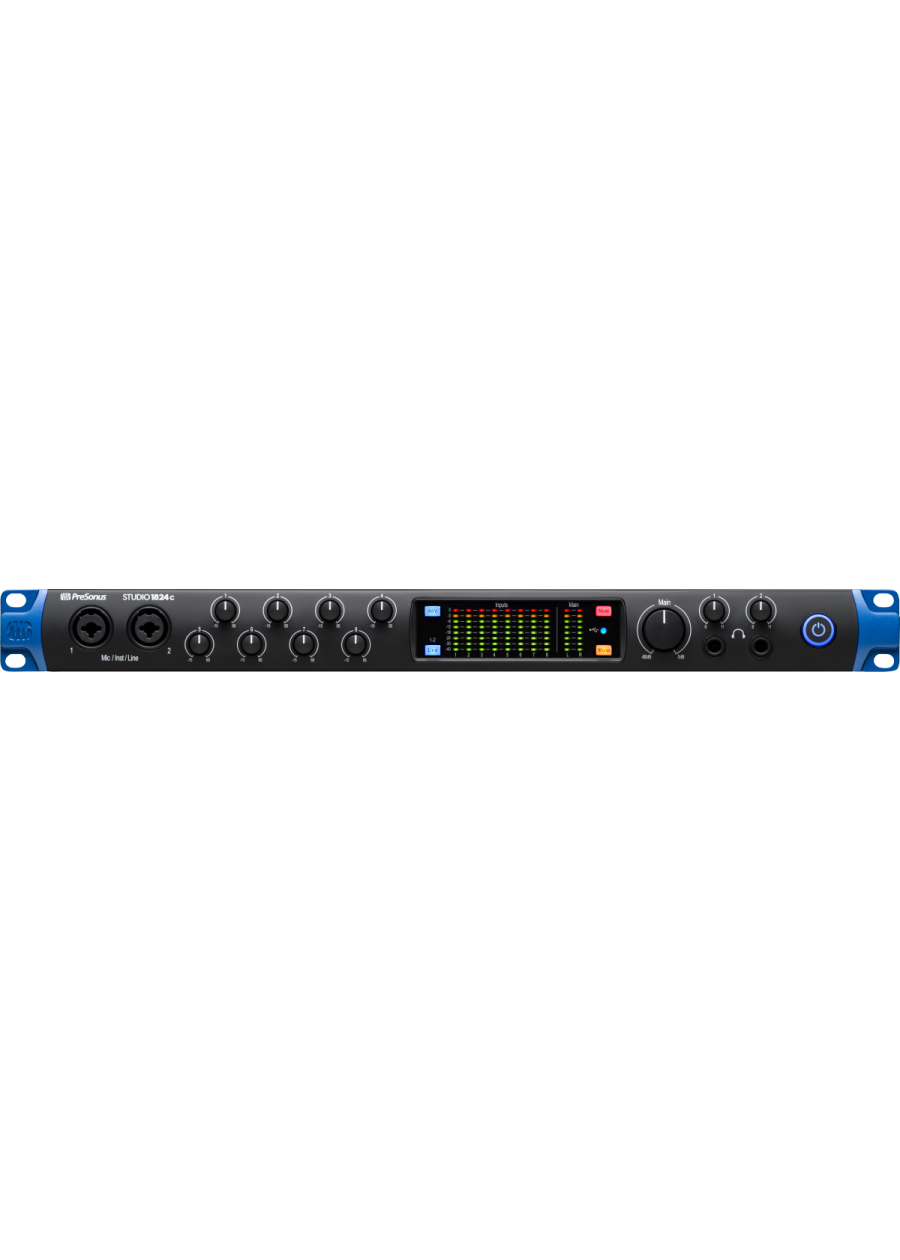

PRESONUS Studio 1824C - USB heliliides 2777706402

PreSonus® was a pioneer in high-channel-count audio interfaces and has spent the last 20 years creating the best audio interfaces for recording large sessions. Building on this legacy, the Studio 1824c provides amazing sound-quality with eight of PreSonus' lauded XMAX analog mic preamps onboard and pristine 24-bit 192 kHz conversion. Add two low-noise instrument preamps, balanced line-level inputs, and an ADAT input to add 8 more channels whenever you need them, and you have an audio interface ready to record just about any session.

When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX mic preamps capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you'll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels. A flexible DSP mixer lets you create four discrete near-zero-latency monitor mixes. Front-panel Mute, Mono, and level controls let you work with your main mix.

Whether you're upgrading your studio or building a new space for your band to record, the Studio 1824c has you covered with superior mic preamps, expandable inputs, and powerful, easy-to-use onboard monitor mixing to give you the world-class results you want.

  • Up to 18 inputs/20 outputs simultaneously (8x8 at 192 kHz)
  • 2 mic/instrument/line inputs with XMAX Class A mic preamps
  • 6 mic/line inputs with XMAX Class A mic preamps
  • 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
  • 2 balanced ¼-inch TRS main outputs and 8 balanced ¼-inch TRS line outputs for monitor mixing, all DC coupled for sending control voltages
  • 2 stereo headphone outputs with individual level controls
  • Stereo S/PDIF digital I/O and MIDI In/Out
  • 18x8 onboard DSP monitor mixer
  • Front-panel level controls plus Mono and Mute buttons for the main outputs
  • True +48V phantom power for condenser microphones (global)
  • 10 ladder-style 8-LED level meters (8 input, 2 main output)
  • 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
  • USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
  • Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
425,00 €

Saadavus: Laos

Tootja: PRESONUS

Mudel: 2777706402

SKU: INV08850

Laos

Electronics

  • INPUTS: Eight - Eight Combo Mic/Instrument/Line Inputs (XLR Female Balance, 1/4" TS Female Unbalanced (Inst))
  • HEADPHONE JACK: 1/8" TRS Active Stereo
  • LINE OUT: Four - 1/4" TRS Balanced, DC Coupled
  • CONNECTIVITY: USB-C®
  • VOLTAGE: 220-240V EU
  • PHANTOM POWER: 48V (>10 mA per Channel)

Performance

  • DIGITAL AUDIO BIT DEPTH: 24 Bit
  • DIGITAL AUDIO DYNAMIC RANGE: 114 dB

Inputs

  • INSTRUMENT INPUTS DYNAMIC RANGE: 112 dB (A-Weighted, Minimum Gain)
  • INSTRUMENT INPUTS FREQUENCY RESPONSE: 20 Hz - 20 kHz (Minimum Gain)
  • INSTRUMENT INPUTS GAIN RANGE: 80 dB
  • INSTRUMENT INPUTS MAXIMUM LEVEL: +15 dBu (Unbalanced, Minimum Gain)
  • LINE INPUTS DYNAMIC RANGE: 112 dB (A-Weighted, Minimum Gain)
  • LINE INPUTS FREQUENCY RESPONSE: 20 Hz - 20 kHz (Unity Gain)
  • LINE INPUTS GAIN RANGE: 40 dB
  • LINE INPUTS IMPEDANCE: 10 kΩ
  • LINE INPUTS MAXIMUM LEVEL: +21 dBu (Balanced, Minimum Gain)
  • LINE INPUTS TOTAL HARMONIC DISTORTION: 0.005% (1 kHz, +18 dBu, Minimum Gain)
  • MICROPHONE INPUT CONNECTION TYPE: Combo Locking XLR Mic - 1/4” TRS Line
  • MICROPHONE PREAMP DYNAMIC RANGE: 110 dB (A-Weighted, Minimum Gain)
  • MICROPHONE PREAMP EQUIVALENT INPUT NOISE: -128 dBu (A-Weighted, 20 kHz BW, Rs=150Ω, Maximum Gain)
  • MICROPHONE PREAMP FREQUENCY RESPONSE: 20 Hz - 20 kHz (Unity Gain)
  • MICROPHONE PREAMP GAIN CONTROL RANGE: 80 dB
  • MICROPHONE PREAMP INPUT IMPEDANCE: 1.4 kΩ
  • MICROPHONE PREAMP MAXIMUM INPUT LEVEL: +16 dBu, Minimum Gain
  • MICROPHONE PREAMP TOTAL HARMONIC DISTORTION: 0.005% (1 kHz, 0dBu, Unity Gain)

Outputs

  • HEADPHONE OUTPUTS DYNAMIC RANGE: 103 dB (A-weighted, 1 kHz, Unity Gain)
  • HEADPHONE OUTPUTS FREQUENCY RESPONSE: 20 Hz - 20 kHz (Unity Gain)
  • HEADPHONE OUTPUTS IMPEDANCE WORKING RANGE: 32Ω to 600Ω
  • HEADPHONE OUTPUTS MAXIMUM OUTPUT: 150 mW/Channel (60Ω Load)
  • HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION: 0.250% (1 kHz, 150 mW, Unity Gain)
  • LINE OUTPUTS CONNECTION TYPE: 1/4" TRS Female
  • MAIN AND LINE OUTPUTS DYNAMIC RANGE: 108 dB (A-Weighted, Unity Gain)
  • MAIN AND LINE OUTPUTS FREQUENCY RESPONSE: 20 Hz - 20 kHz (Unity Gain)
  • MAIN AND LINE OUTPUTS MAXIMUM LEVEL: +18 dBu (Balanced)
  • MAIN AND LINE OUTPUTS TOTAL HARMONIC DISTORTION: 0.004% (1 kHz, -1 dBFS, Unity Gain)
  • MAIN OUTPUTS CONNECTION TYPE: 1/4" TRS Female

Hardware

  • MIDI IO: Dual 5-Pin Female DIN

Measurements

  • DIMENSIONS: 1.80x19.00x5.50 IN
  • SHIPPING WEIGHT: 4.80 LB
  • PRODUCT DEPTH: 5.5" (140 mm)
  • PRODUCT HEIGHT: 1.75" (44.45 mm)
  • PRODUCT WIDTH: 19" (483mm)
  • SHIPPING LENGTH: 5.50 IN
  • SHIPPING HEIGHT: 1.80 IN
  • SHIPPING WIDTH: 19.00 IN

Miscellaneous

  • COMMODITY CODE: 8517620000
  • POWER CABLE: 12 VDC, External Power Supply
  • SUPPORTED SAMPLE RATES: 44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)

Lisainformatsioon

Tootja PRESONUS
Mudel 2777706402
