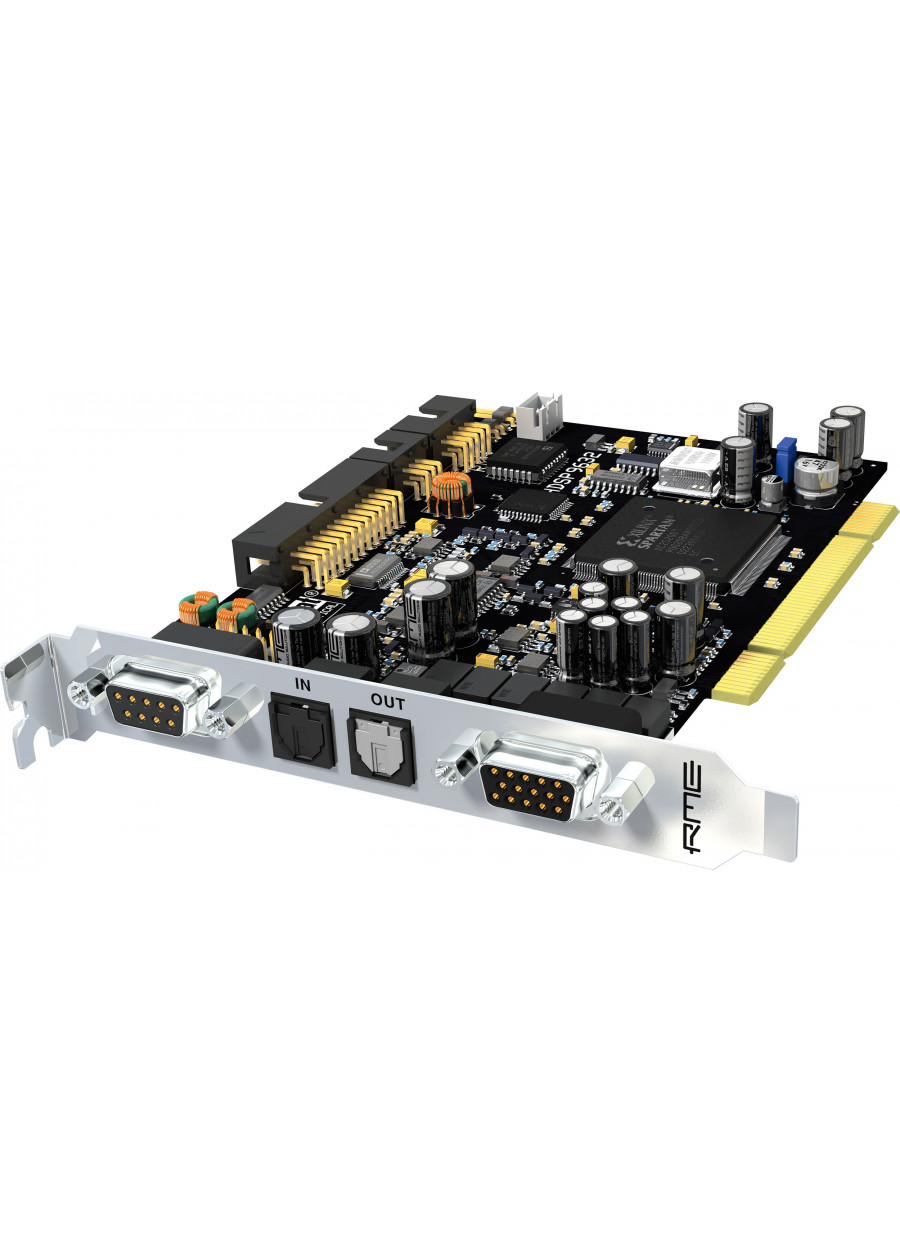

RME HDSP9632 - PCI heliliides / 32 kanalit

RME Hammerfall DSP 9632 on maailma kõige mitmekülgsem kõik-ühes PCI heliliides.

  • Balanced stereo analog in- and output, 24-Bit/192kHz, > 110 dB SNR
  • Optional analog expansion boards with 4 balanced in- or outputs
  • All analog I/Os capable of 192 kHz, constant number of available channels
  • 1 ADAT digital I/O, supporting 96 kHz S/MUX operation
  • 1 SPDIF digital I/O, 192 kHz-capable
  • 1 Breakout cable for coaxial SPDIF*
  • Up to 16 I/Os can be used simultaneously!
  • 1 Stereo headphone output, parallel to the analog out, additional level settings
  • 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
  • DIGICheck, RMEs unique metering- and analysing tool
  • HDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardware
  • TotalMix: 512 channel Mixer with 40 Bit internal resolution
365,00 €

Saadavus: Laos

Tootja: RME

Mudel: HDSP9632

SKU: INV07689

Laos

Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional hi-quality analog expansion boards, the famous TotalMix FX, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long.

  • Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz
  • 8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
  • All settings changeable in real-time
  • Automatic and intelligent master/slave clock control
  • Enhanced Mixed mode: All inputs and outputs simultaneously operational
  • TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
  • Unique status windows for record and playback, showing mode and sample rate
  • DIGICheck, RMEs unique metering and analysing tool
  • Digital inputs and outputs ground-free transformer coupled
  • 3-stage hardware level control for analog inputs and outputs
  • Balanced analog input and output, DC-coupled signal path
  • 192 kHz / 24-Bit converters. SNR 110 dB RMS unweighted, 113 dBA
  • Maximum input and output level (0 dBFS @ HiGain): +19 dBu
  • Low impedance headphone output (75 ohm), stepless output level through software faders
  • Headphone Speaker Protection minimizes noise during power on/off
  • All inputs and outputs simultaneously operational
  • Super low jitter design: < 1 ns in all clock modes

Lisainformatsioon

Tootja RME
Mudel HDSP9632
