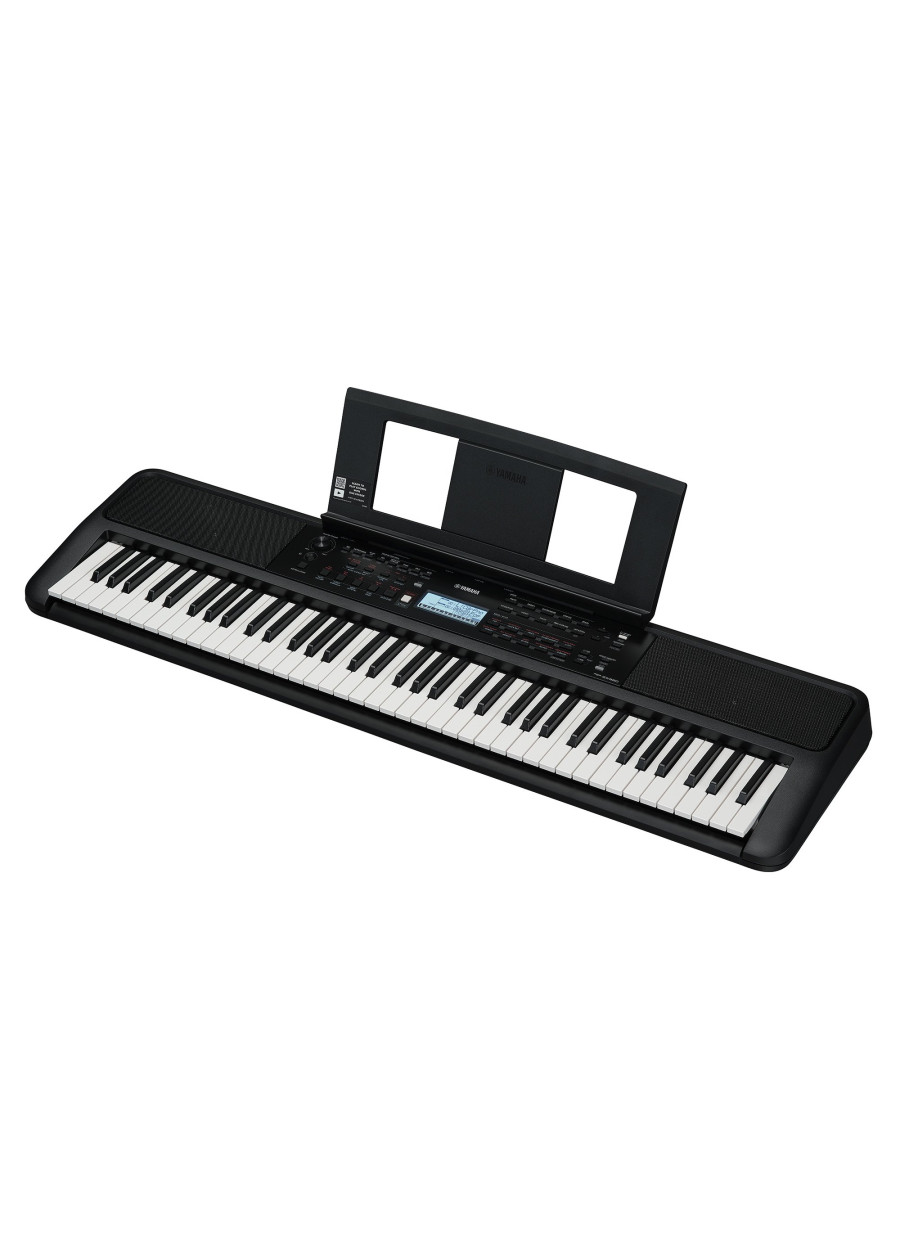

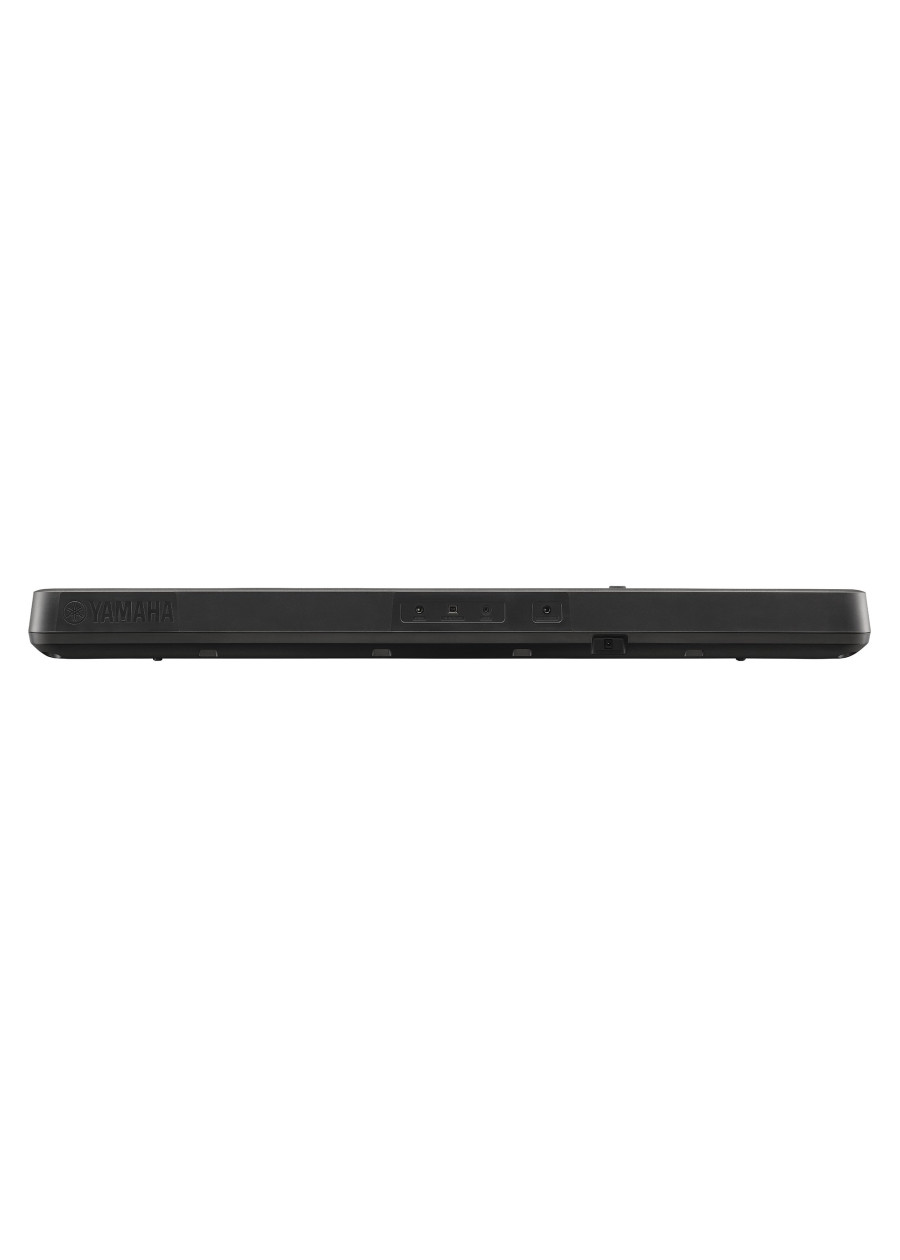

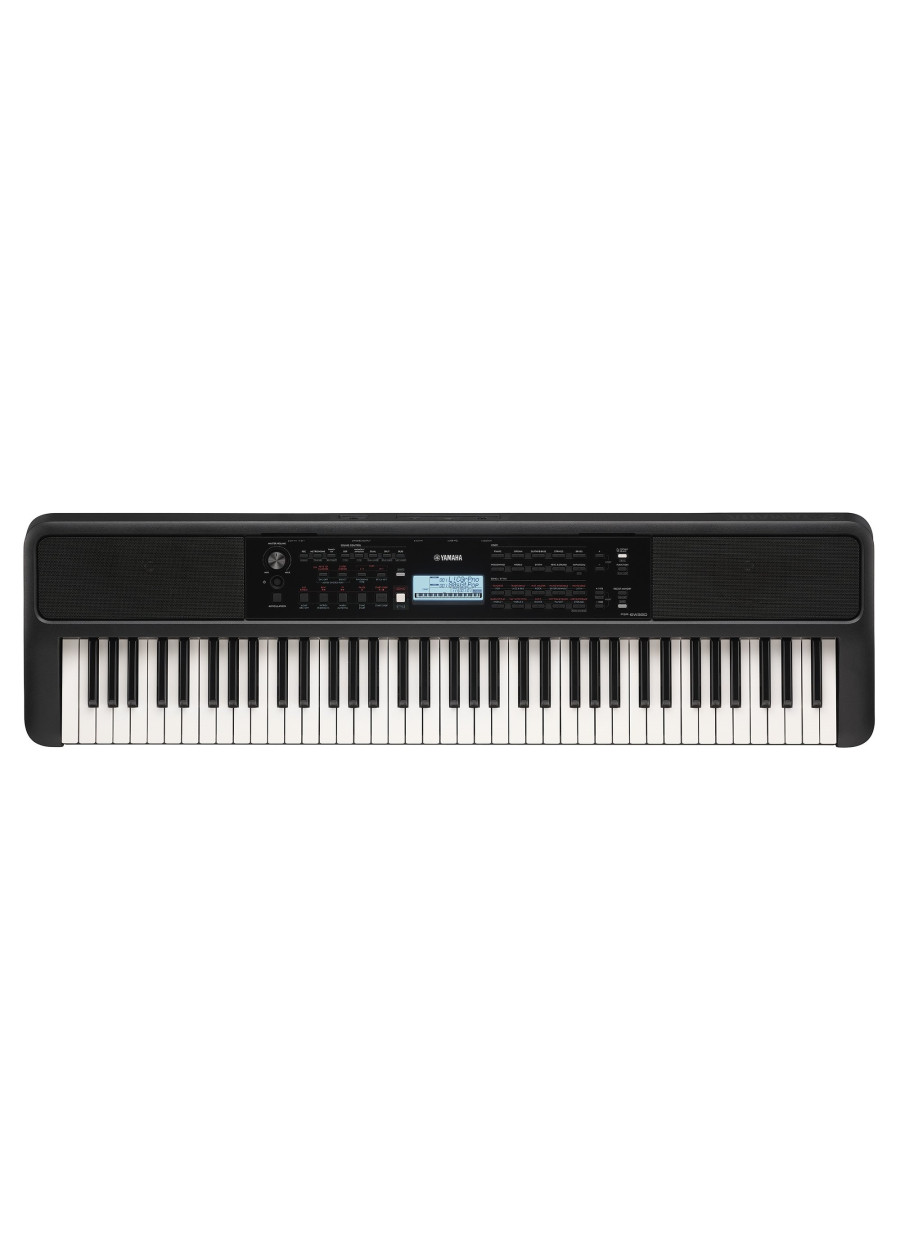

| PSR-EW320 | ||
|---|---|---|
| Color/Finish | ||
| Cabinet | Color | Black |
| Size/Weight | ||
| Dimensions | Width | 1,148 mm (45-3/16”) |
| Height | 105 mm (4-1/8”) | |
| Depth | 317 mm (12-1/2”) | |
| Weight | Weight | 5.2 kg (11 lb, 7 oz) (not including batteries) |
| Control Interface | ||
| Keyboard | Number of Keys | 76 |
| Type | Organ-style | |
| Touch Response | Yes (Soft, Medium, Hard, Off) | |
| Display | Type | LCD |
| Backlight | Yes | |
| Language | English | |
| Panel | Language | English |
| Voices | ||
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 48 |
| Preset | Number of Voices | 650 (258 Panel Voices + 25 Drum/SFX kits + 20 Arpeggio + 347 XGlite Voices) |
| Compatibility | GM | Yes |
| XGlite | Yes | |
| Effects | ||
| Types | DSP | 41 types |
| Reverb | 15 types | |
| Chorus | 7 types | |
| Master EQ | 5 types | |
| Harmony | 26 types | |
| Functions | Dual | Yes |
| Split | Yes | |
| Arpeggio | 152 types | |
| Melody Suppressor | Yes | |
| Accompaniment Styles | ||
| Preset | Number of Preset Styles | 260 |
| Fingering | Smart Chord, Multi finger | |
| Style Control | ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL | |
| File Format | Style File Format (SFF) | |
| Other Features | Music Database | 200 |
| One Touch Setting (OTS) | Yes | |
| Auto Chord Play | 50 Chord Progressions | |
| Expandability | Expansion Style | 10 |
| Songs | ||
| Preset | Number of Preset Songs | 125 |
| Recording | Number of Songs | 5 |
| Number of Tracks | 2 | |
| Data Capacity | Approx. 10,000 notes | |
| Compatible Data Format | Playback | SMF Formats 0 & 1 |
| Recording | Original File Format | |
| Functions | ||
| Lesson | KEYS TO SUCCESS, 3-Step Lesson (Listening, Timing, Waiting), A-B Repeat, Rhythm & Touch Tutor | |
| USB audio interface | 44.1 kHz, 16 bit, stereo | |
| Registration | Number of Memories | 10 |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 - 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0–440.0–453.0 Hz (approx. 0.2 Hz increments) | |
| Duo | Yes | |
| Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
| Storage and Connectivity | ||
| Storage | Internal Memory | Approx. 1.4 MB |
| Connectivity | DC IN | 12 V |
| Headphones | Standard stereo phone jack (PHONES/OUTPUT) | |
| Sustain Pedal | Yes | |
| AUX IN | Yes (Stereo mini jack) | |
| USB TO HOST | Yes (MIDI/AUDIO) | |
| Amplifiers and Speakers | ||
| Amplifiers | 2.5 W + 2.5 W | |
| Speakers | 12 cm × 2 | |
| Power Supply | ||
| Power Supply | Adaptors | PA-130 or an equivalent recommended by Yamaha |
| Batteries | Six “AA” size alkaline (LR6), manganese (R6), or Ni-MH rechargeable batteries (HR6) | |
| Power Consumption | 5 W (When using PA-130 AC adaptor) | |
| Auto Power Off | Yes | |
| Accessories | ||
| Included Accessories | Music Rest | Yes |
| Song Book | Download from Yamaha web site | |
Lisainformatsioon
| Tootja | YAMAHA |
|---|---|
| Mudel | PSREW320 |
