| Size/Weight | ||
|---|---|---|
| Dimensions | Width | 1320 mm |
| Height | 405 mm | |
| Depth | 168 mm | |
| Weight | Weight | 13.9kg |
| Control Interface | ||
| Keyboard | Number of Keys | 88 |
| Initial Touch | Yes | |
| Tone generator | ||
| Tone Generator | AWM2 | |
| Maximum Polyphony | 128 notes | |
| Multi Timbral Capacity | 16 parts (Internal) | |
| Wave | Approx.166 MB (when converted to 16-bit linear format) | |
| Voices | Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits | |
| Performance | User: 128 (16 parts) | |
| Effects | Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands) | |
| Sequencer | ||
| Tempo (BPM) | 5 – 300 | |
| Songs | 27 Demo Songs | |
| Patterns | 208 Patterns | |
| Arpeggio | 999 types | |
| Sequence formats | SMF Format 0 (playback only) | |
| Other | ||
| Sequence Software compatible with the Remote Control function | For Windows®: Cubase 8 or later, SONAR X2 Producer For Mac®: Cubase 8 or later, Logic Pro X, Digital Performer 9 *Functions to be controlled differ depending on the software | |
| Controllers | Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1 | |
| Display | 3 digit LED + 20 x 2 line character LCD (backlit) | |

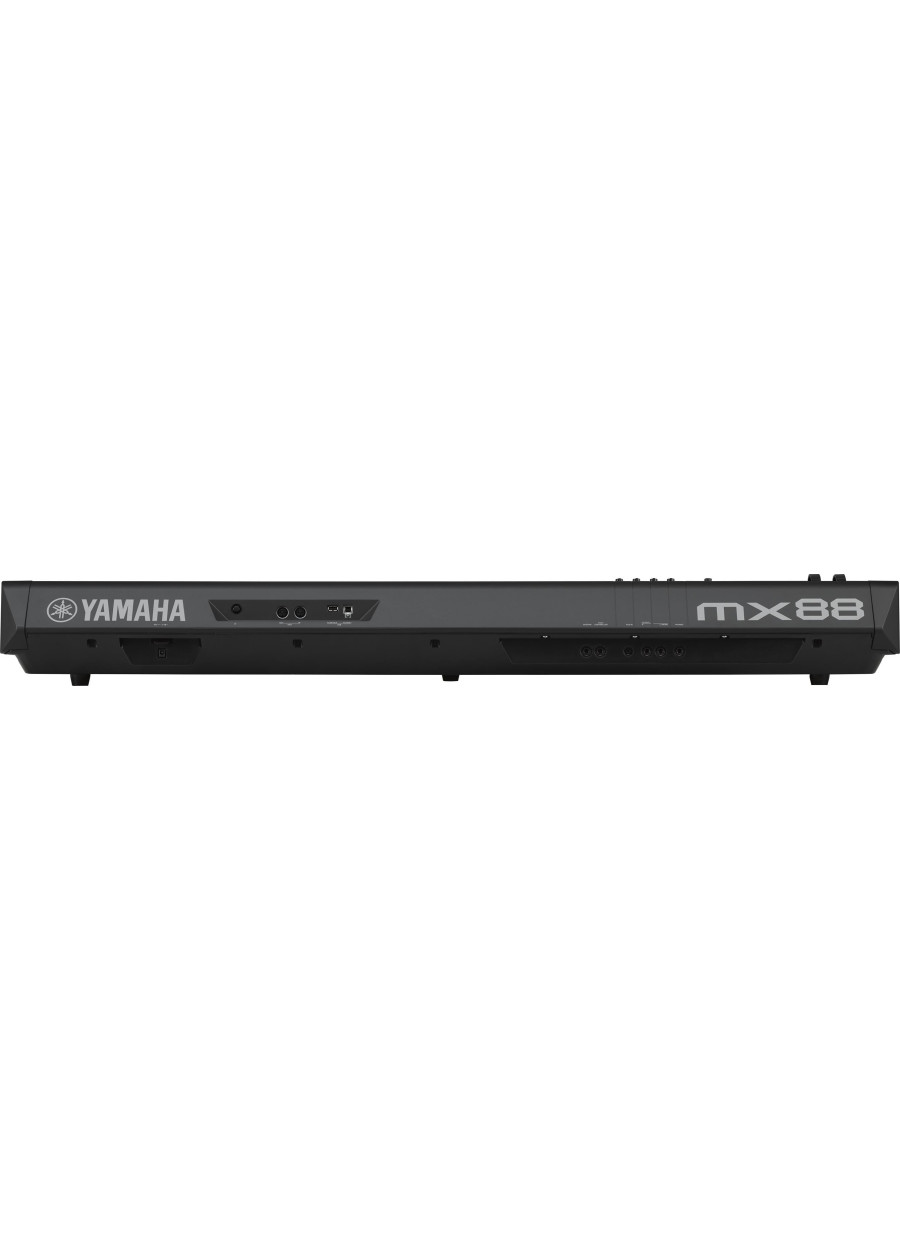

| Connectors | OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] (Class Compliant support)/ [TO DEVICE], [AUX IN], DC IN | |
| Power Supply | 9 W | |
| Accessories | AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner' Manual, Cubase AI Download Information | |
Lisainformatsioon
| Tootja | YAMAHA |
|---|---|
| Mudel | MX88 |
