SPECS
| GENERAL | |
|---|---|
| Recording media: |
16MB–2GB SD cards, 4GB–32GB SDHC cards |
| Built-in memory: |
Up to 1 minute in 96kbps MP3 format |
| Mic arrangements: |
90˚ X/Y stereo, MS stereo with adjustable side mic level |
| Recording modes: |
MS, XY, MS+XY (2ch), MS+XY (4ch) |
| Microphone types: |
Directional (XY, MS mid mics) |
| Maximum sound pressure input: |
120 dB spl (directional) |
| FILE FORMATS | |
| Stereo uncompressed PCM: |
44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) |
| Compressed MP3 (recording): |
44.1kHz, 48kHz |
| Compressed MP3 (playback): |
44.1kHz, 48kHz |
| 4ch uncompressed PCM: |
44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) |
| DIGITAL PROCESSING | |
| A/D conversion: |
24-bit 128× oversampling |
| D/A conversion: |
24-bit 128× oversampling |
| Signal processing: |
32-bit |
| Recording time (2GB card): |
3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3) |
| ADDITIONAL FEATURES | |
| Lo cut: |
80Hz high-pass filter |
| Comp/Limiter: |
3 types of compressors and 3 types of limiters |
| Auto gain: |
Automatic input gain adjustment (3 levels) |
| Pre rec: |
2 seconds of pre-recording |
| Auto rec: |
Automatic recording start/stop, continuous standby |
| Tuner: |
Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detection |
| Metronome: |
40–250 BPM range, five tones, pre-count |
| Speed: |
Playback speed adjustable between 50–150% |
| Key control: |
Playback pitch adjustable ±6 semitones |
| AB repeat: |
Repeats playback between selected points in a file |
| File divide: |
Divides a file into two |
| File normalize: |
Maximizes file volume |
| File MP3 encode: |
Converts WAV files to MP3 formats at fixed bit rates |
| Mark: |
Up to 99 marks |
| Surround mixer: |
Adjusts mix balance when playing back 4ch surround recordings |
| OTHER | |
| Display graphic: |
128×64 pixels backlit LCD |
| Input gain: |
0 to +39 dB |

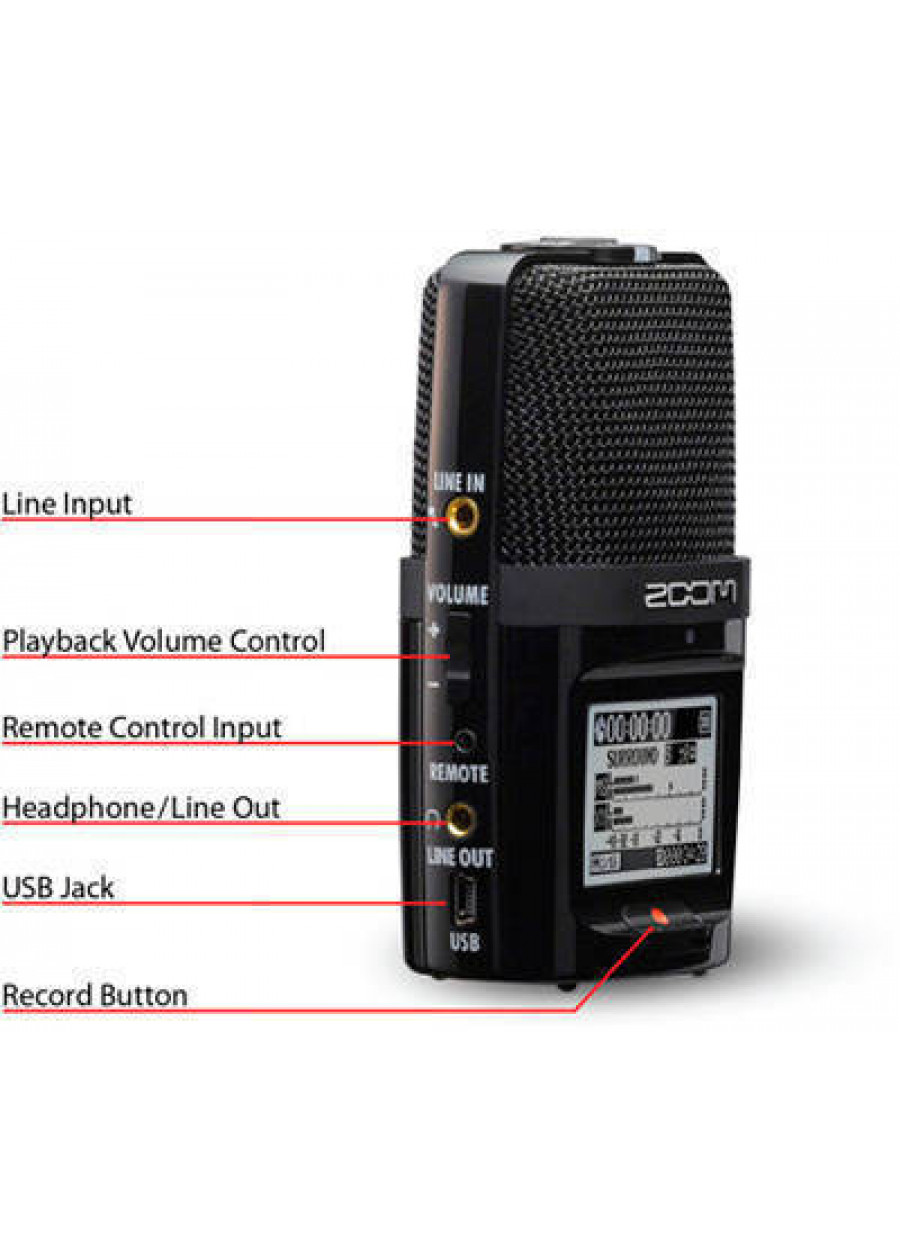

| Input jack: |
Line/mic stereo mini jack with plug-in power |
| Output jack: |
Line/headphone stereo mini jack |
| Rated output level: |
−10 dBm (output impedance 10 kΩ or more) |
| Headphones: |
20 mW + 20 mW (into 32 Ω load) |
| Built-in speaker: |
400mW, 8Ω, mono |
| USB: |
Mini-B type |
| USB 2.0 high speed: |
Audio interface operation |
| USB 1.0 full speed: |
Supports 44.1 / 48kHz sampling rates and 16-bit rate |
| Power: |
Two AA batteries, AD-17 USB to AC adapter (DC 5V
1A) |
| Physical features: |
Tripod mounting socket, strap attachment |
| Dimensions: |
67.6mm (W) × 113.85mm (H) × 42.7mm (D) |
| Weight: |
130 g (without batteries) |
Lisainformatsioon
| Tootja | ZOOM |
|---|---|
| Mudel | H2n |
