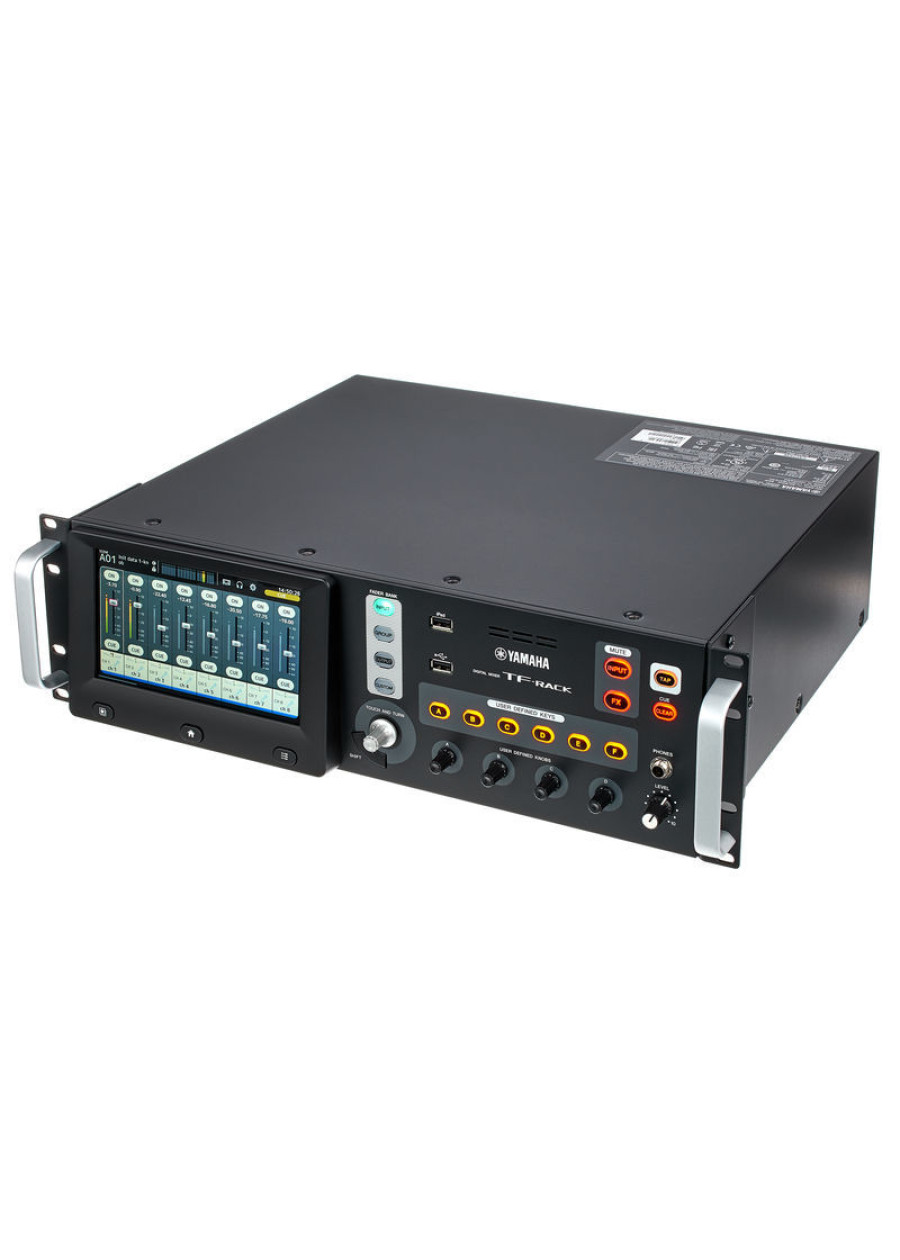

YAMAHA Digital Mixing Console TF-RACK

The new TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.

€1,839.00

Availability: Out of stock

Manufacturer: YAMAHA

Model: TFRACK

SKU: INV05416

Out of stock
Outline TF-RACK
Mixing Capacity Input Channels 40 (32 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/O Inputs 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
Outputs 16 (8 XLR + 8 TRS phone)
Expansion slots 1 (for NY64-D)
On-board processors DSP 8 Effects + 10 GEQ
General specifications TF-RACK
Sampling frequency rate Internal 48 kHz
Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements 100–240 V 50/60 Hz
Power consumption 85 W
Dimensions W 480 mm (18-7/8 in)
H 132 mm (5-1/4 in)
D 409 mm (16-1/8 in)
Net weight 9.2 kg (20.3lb)
Accessories Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)
Options Audio Interface Card (NY-64D), Foot Switch (FC5)
Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Recording/ Playback

PC/Mac (USB2.0) Recording 34 tracks, Playback 34 tracks
USB Storage Device Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive)

*Please note - USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.

Analog input characteristics

Input Terminals GAIN Load
Impedance
For Use With
Nominal
Input Level Connector balanced /
Unbalanced
Sensitivity*1 Nominal Max. before clip
INPUT1-16 +66dB 7.5KΩ  50-600Ω Mics
or 600Ω Lines
-82dBu (61.6μV) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 10kΩ 600Ω Lines -30dBV (31.6μV) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*4. In these specifications, 0dBu = 0.775Vrms.
*5. +48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

Output Terminals Source
Impedance
For Use With
Nominal
Output Level Connector balanced /
Unbalanced
Nominal Max. before clip
OMNI OUT 1-8 75Ω 600Ω Lines  +4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
OMNI OUT 9-16 TRS Phone Jack *6
PHONES *5 100Ω 40Ω Phones 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1. 1: GND, 2: HOT, 3: COLD
*2. Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3. In these specifications, 0dBu = 0.775Vrms.
*4. All output DA converters are 24bit, 128times oversampling.
*5. The position of the level control is lowered by 16dB from the maximum.
*6. Tip: HOT, Ring: COLD, Sleeve: GND

Digital input/output specifications

Terminals Format Data length Audio Connector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB Playback: MP3 or WAV file data / Record: WAV file data  USB (A type)



Control I/O specifications

Terminals Format Level Connector
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW TS Phone

Additional Information

Manufacturer YAMAHA
Model TFRACK
