Output Power 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)
Low-Frequency Driver: 15.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω.
High-Frequency Driver: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω.
Crossover Frequency: 2 kHz
Maximum SPL: 135 dB (peak), 132 dB (continuous) (dB-SPL @ 1 m)
Frequency Response: 44 Hz – 20 kHz (+/- 3 dB)
Frequency Range: 33 Hz – 20 kHz (-10 dB)
Horn Coverage: 90° horizontal x 60° vertical (nominal)
Connectors: (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input
Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K
Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
Mic/Inst. Gain/Volume Control Range: -∞ to +50 dB
USB Charging Port: 5V 2.1A

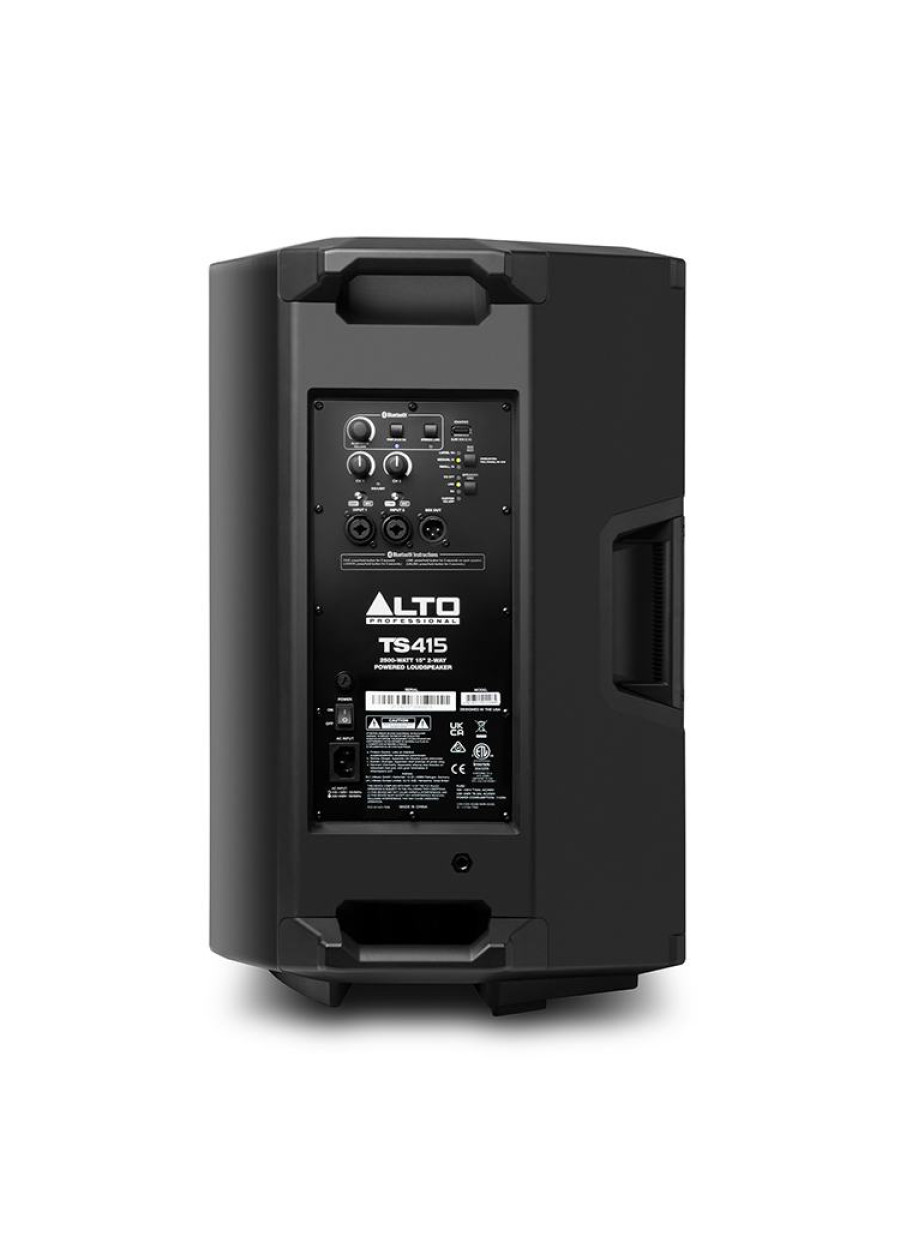

Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
Indicators:(1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
Power Connection: IEC
Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
Consumption: 1100W
Fuse: 100-120V T15AL AC250V; 220-240V T6.3AL AC250V
Protection: Electronic clip, thermal, and transducer overdrive protection

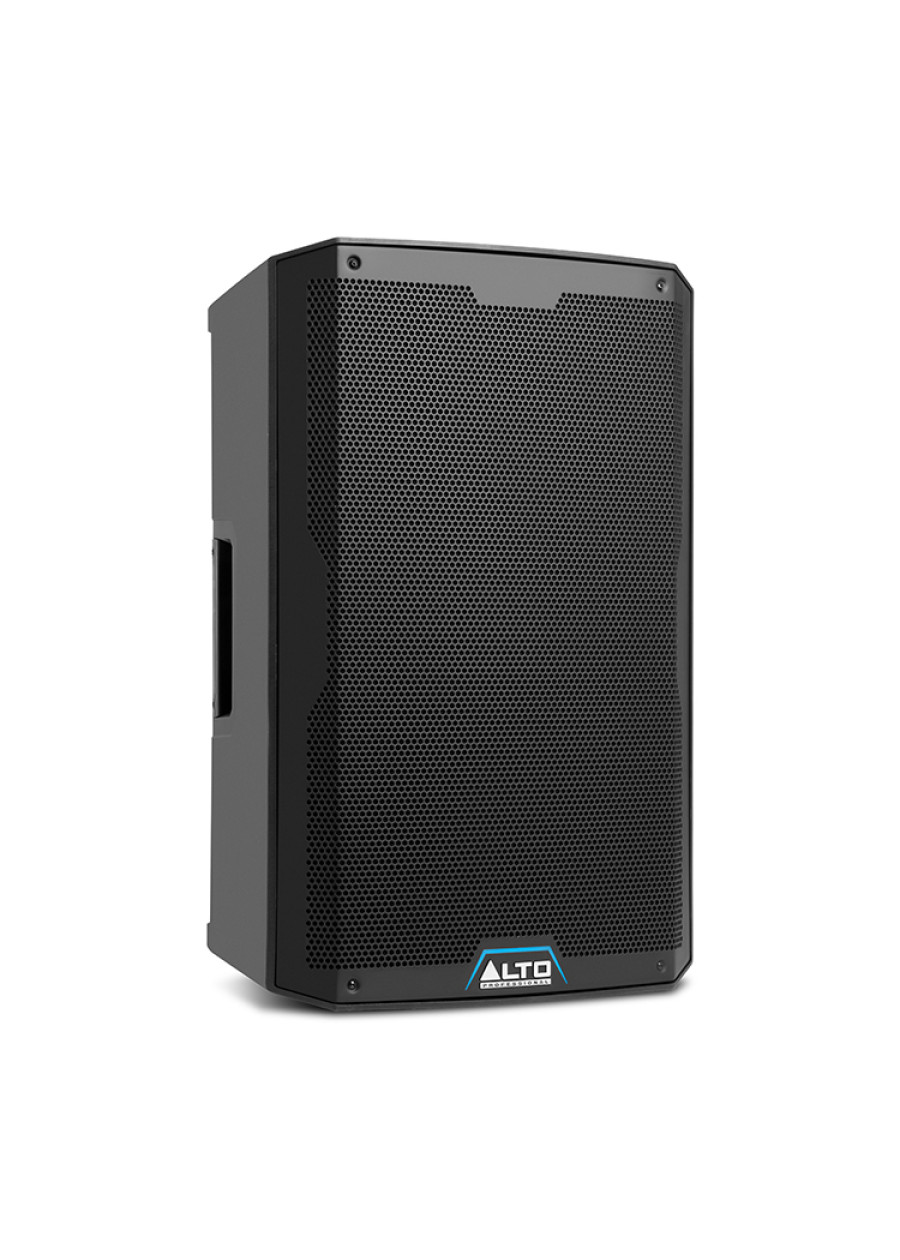

Enclosure: Injected Molded Enclosure and Perforated Metal Grille

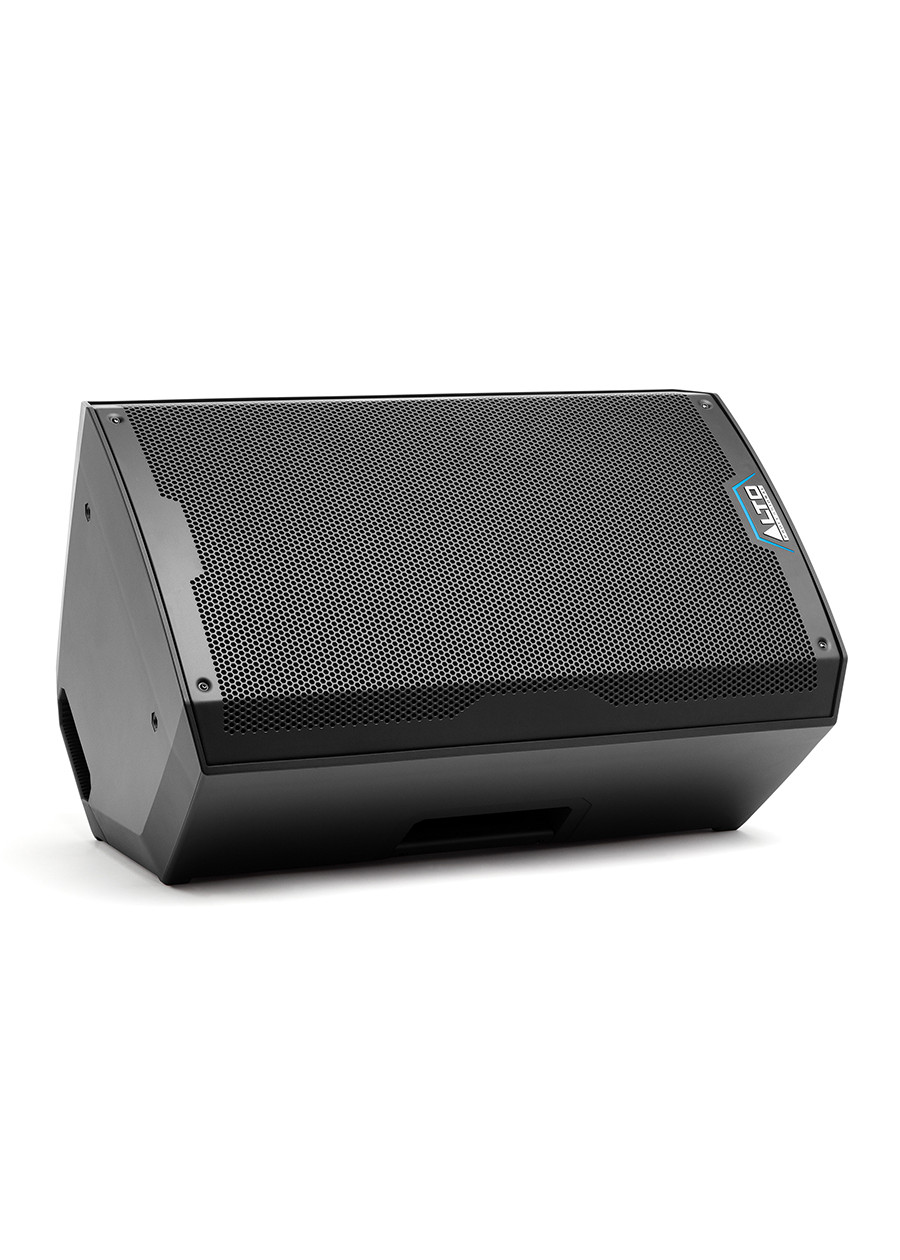

Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
Operating Temperature: -10°C to 45°C (14°F to 113°F)
Dimensions: (height x width x depth) 25.3” x 16.4” x 15.8” / 643 x 417.5 x 402 mm
Weight: 38.0 lbs. / 17.2 kg
Дополнительная информация
| Производитель | ALTO |
|---|---|
| Модель | TS415 |
