CONTROLS
- GAIN
- THRESHOLD
- RATIO
- ATTACK
- RELEASE
- VOLUME
- ON/OFF SWITCH

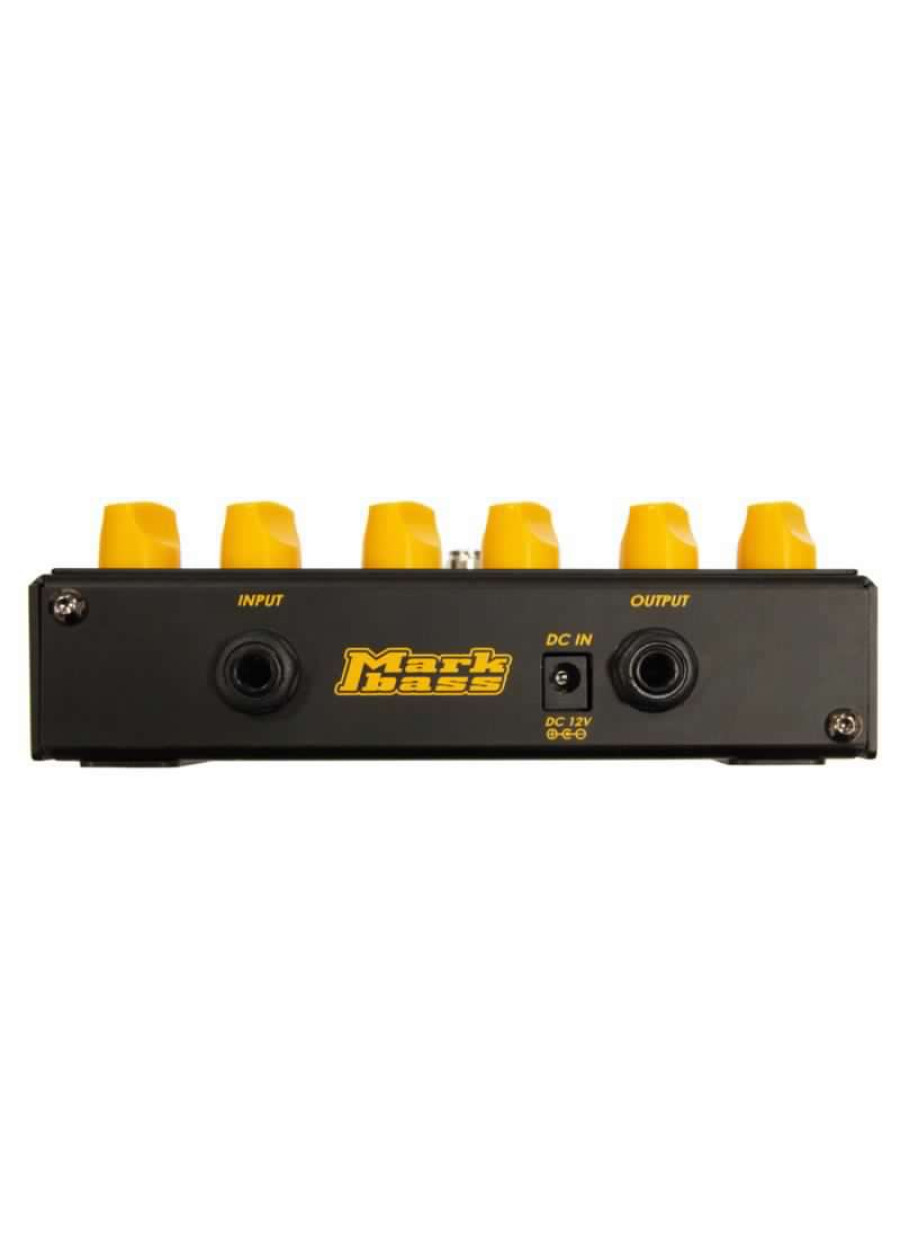

REAR PANEL
- INPUT jack
- OUTPUT jack
- POWER jack (DC 12V)
TECHNICAL SPECS
- Input Impedance: 300 Kohm
- Gain: 0 ÷ +16dB
- Threshold: 30mVp ÷ 1,8 Vp
- Ratio: 1:1 ÷ 1:? (hard limiter)
- Attack: 2 ÷ 50 ms
- Release: 100 ÷ 750 ms
- Output Impedance: 100 ohms
- Power Requirements – DC input: +12VDC / 600mA minimum*
- TUBE: 1x ECC81
- Dimensions: 6.53”x 5.59”x 2.08” / 166 x 142 x 53 mm
- Weight: 1.55 lbs / 700 gr
- * 12VDC power supply included
Дополнительная информация
| Производитель | MARKBASS |
|---|---|
| Модель | COMPRESSORE |
