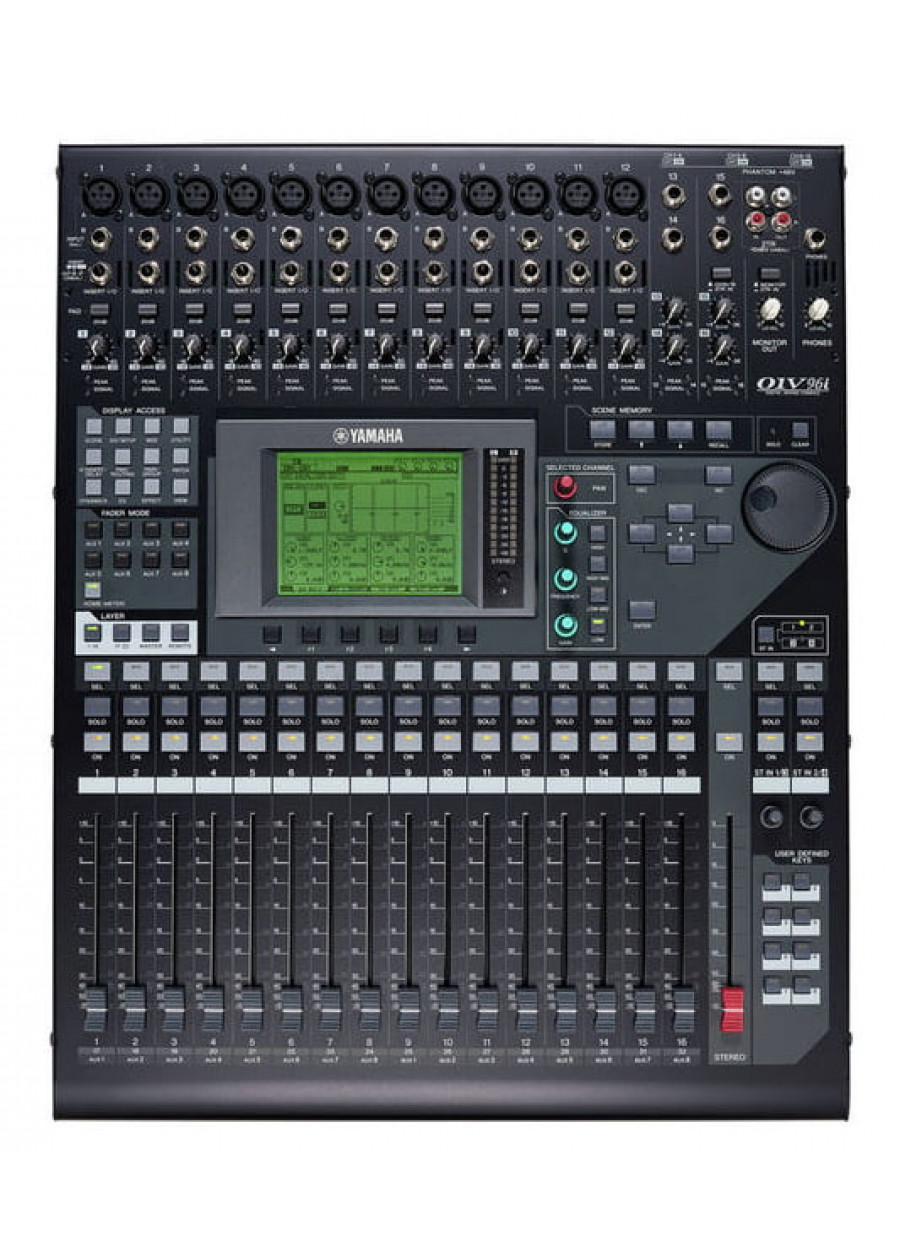

Outline
|
01V96i
|
|
Mixing capability
|
Mixing channels
|
32 Mono + 4 Stereo
|
|
GROUP
|
8
|
|
AUX
|
8
|
|
MAIN
|
Stereo
|
|
Input channel functions
|
Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan
|
|
Output channel functions
|
Attenuator, 4-band PEQ, Compressor, Delay
|
|
On-board processors
|
4x SPX multi effectors
|
|

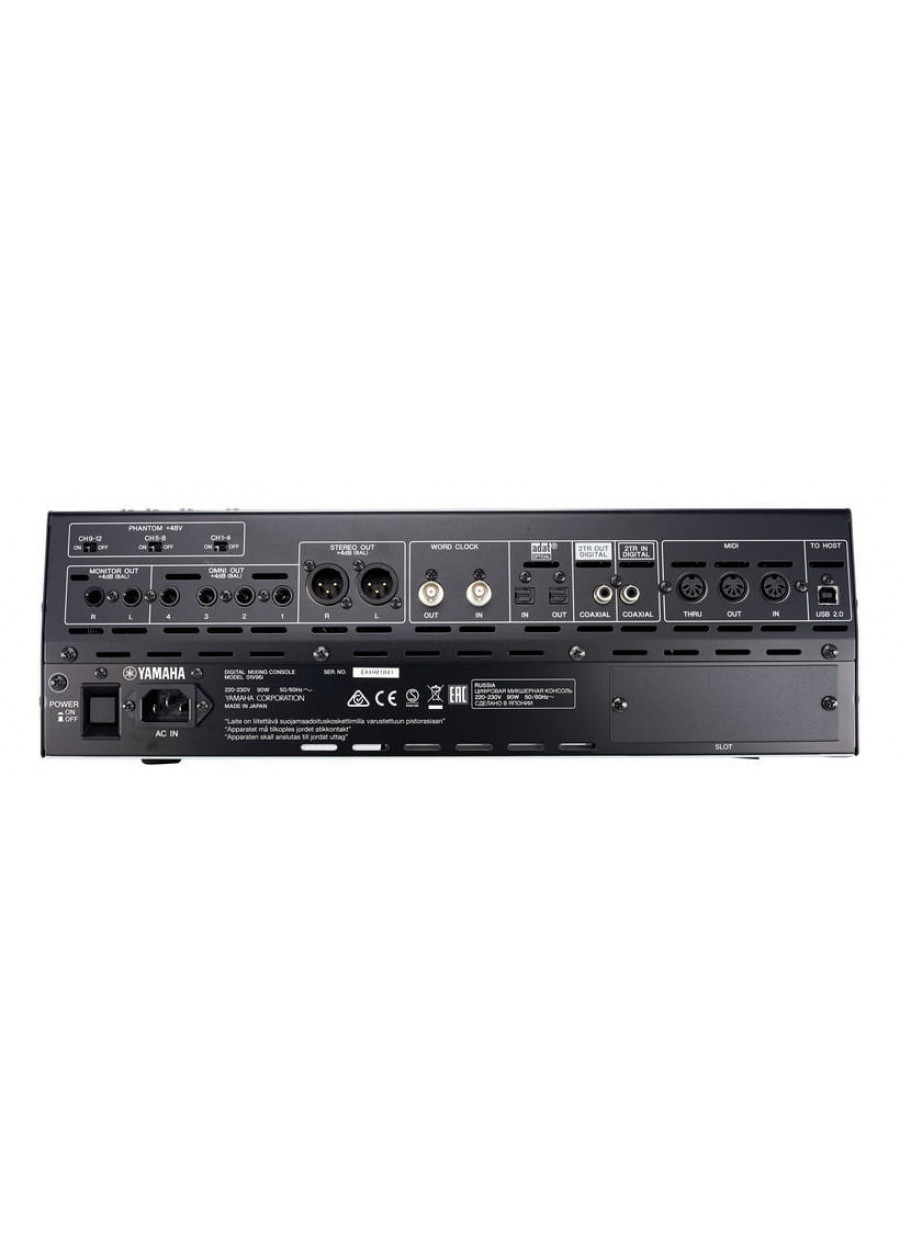

I/O
|
Mic inputs
|
12
|
|
Phantom power
|
+48V DC; ON/OFF per 4ch
|
|
Line inputs
|
2x Stereo, 2x 2tr in
|
|
AD converter
|
24-bit; 128-time over sampling
|
|
Line outputs
|
Stereo output, Monitor output, 4x Omni output
|
|
DA converter
|
24-bit; 128-time over sampling
|
|
Digital I/O
|
ADAT (8-in/8-out), 2tr in/out
|
|
Expansion slots
|
Mini-YGDAI (16-in/16-out)
|
|
Control and others
|
To Host(USB), MIDI, Word clock I/O
|
|
General specifications
|
01V96i
|
|
Internal processing
|
32bit, Accumulator: 58bit
|
|
Sampling frequency rate
|
Internal
|
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
|
|
External
|
44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
|
|
Signal delay
|
Less than 1.6ms CH INPUT to STEREO OUT (@SampIing
frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO
OUT (@SampIing frequency = 96kHz)
|
|
Total harmonic distortion
|
CH INPUT to STEREO OUT: Less than 0.05%, 20Hz to 20kHz
@+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into
600Ω (@SampIing frequency = 48kHz) / Less than 0.05%,
20Hz to 40kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz
@+24dBu into 600Ω (@SampIing frequency = 96kHz)
|
|
Frequency response
|
CH INPUT to STEREO OUT: 0.5, -1.5dB, 20Hz - 20kHz @+4dBu
into 600Ω(@SampIing frequency = 48kHz) / 0.5, -1.5dB,
20Hz - 40kHz @+4dBu into 600Ω(@SampIing frequency =
96kHz)
|
|
Dynamic range
|
110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA
(to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO
OUT) @fs=96kHz
|
|
Hum & noise level
|
Equivalent input noise
|
-128dBu Equivalent Input Noise.
|
|
Residual output noise
|
-86dBu residual output noise. STEREO OUT: STEREO OUT off.
/ -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal
level and all CH INPUT faders at minimum level. / -64dBu
(68dB S/N) STEREO OUT: STEREO fader at nominal level and
one CH INPUT fader at nominal level
|
|
Crosstalk
|
-80dB adjacent input channels (CH1-12) / -80dB adjacent
input channels (CH13-16) / -80dB input to output
|
|
Power requirements
|
AC100V, 120V, 220-240V 50/60 Hz
|
|
Power consumption
|
90W
|
|
Dimensions
|
W
|
436mm; 17-1/8in
|
|
H
|
148mm; 5-7/8in
|
|
D
|
548mm; 21-5/8in
|
|
Net weight
|
14kg; 30.86lbs
|
|
Others
|
Fader: 100mm motorized x17
|
