24-Bit / 192 kHz AD/DA converter
20 Input and output channels
SteadyClock FS
Stand-alone functionality
DURec feature: integrated digital recorder for all inputs and
outputs directly to USB storage devices via the rear USB port
(allows recording to
USB sticks or hard disks with up to 2 TB capacity)
TotalMix mixing / routing software
DigiCheck software
Class Compliant
Compatible with optional ARC USB remote control (not
included)
DC-coupled outputs - CV/Gate Voltage Control
+48 V phantom power
Colour display
2 Mic/line combo inputs: XLR/jack 6.3 mm
2 Instrument/line inputs: 6.3 mm jack
4 Line inputs: 6.3 mm jack
Stereo headphone output: 6.3 mm jack
ADAT input and output
Word clock input and output
AES/EBU as well as S/PDIF coax
MIDI input and output
DUrec USB
Enclosure size: 9.5" / 1U
Dimensions (W x H x D): 215 x 44 x 130 mm
Weight: 910 g
Includes external power supply 100V - 240V AC, 12V 2A DC

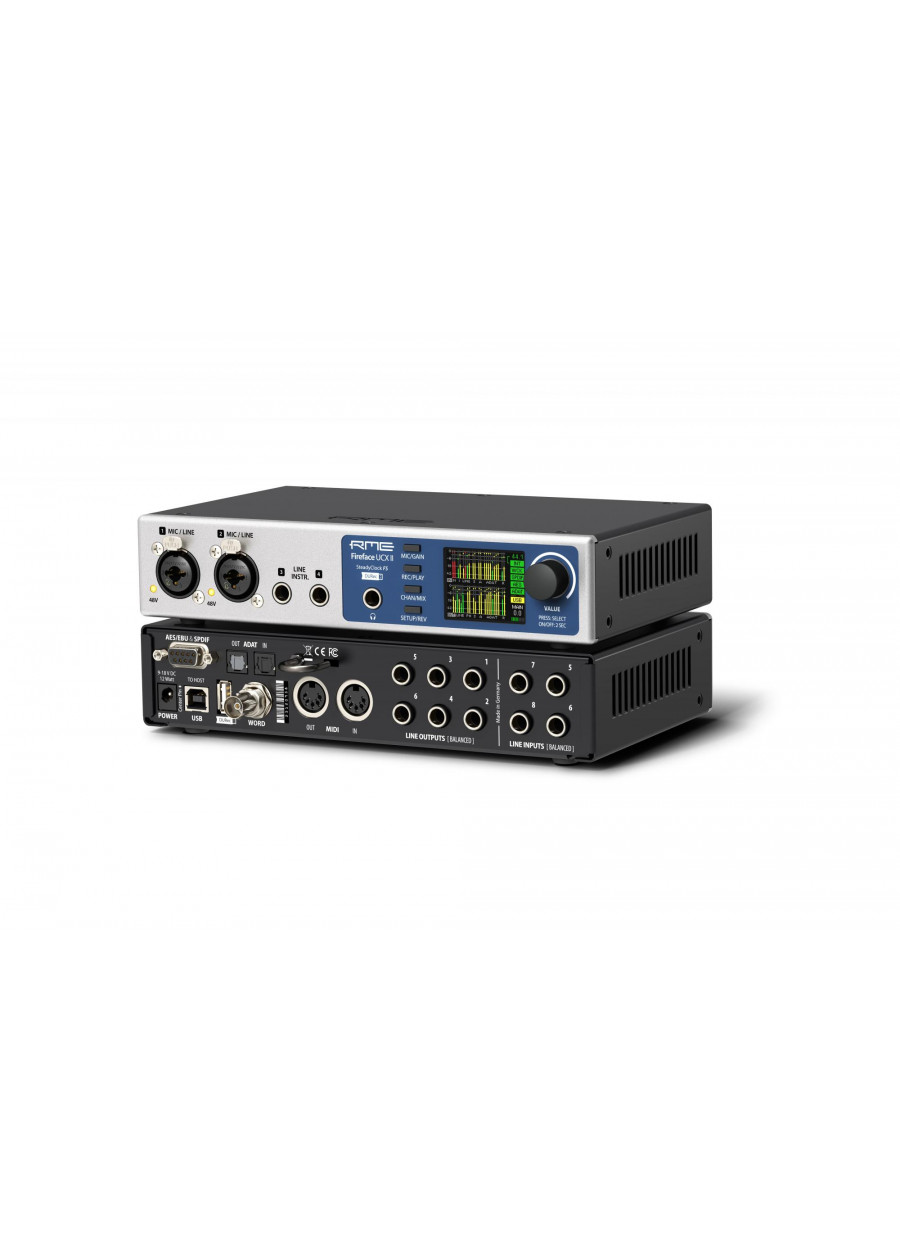

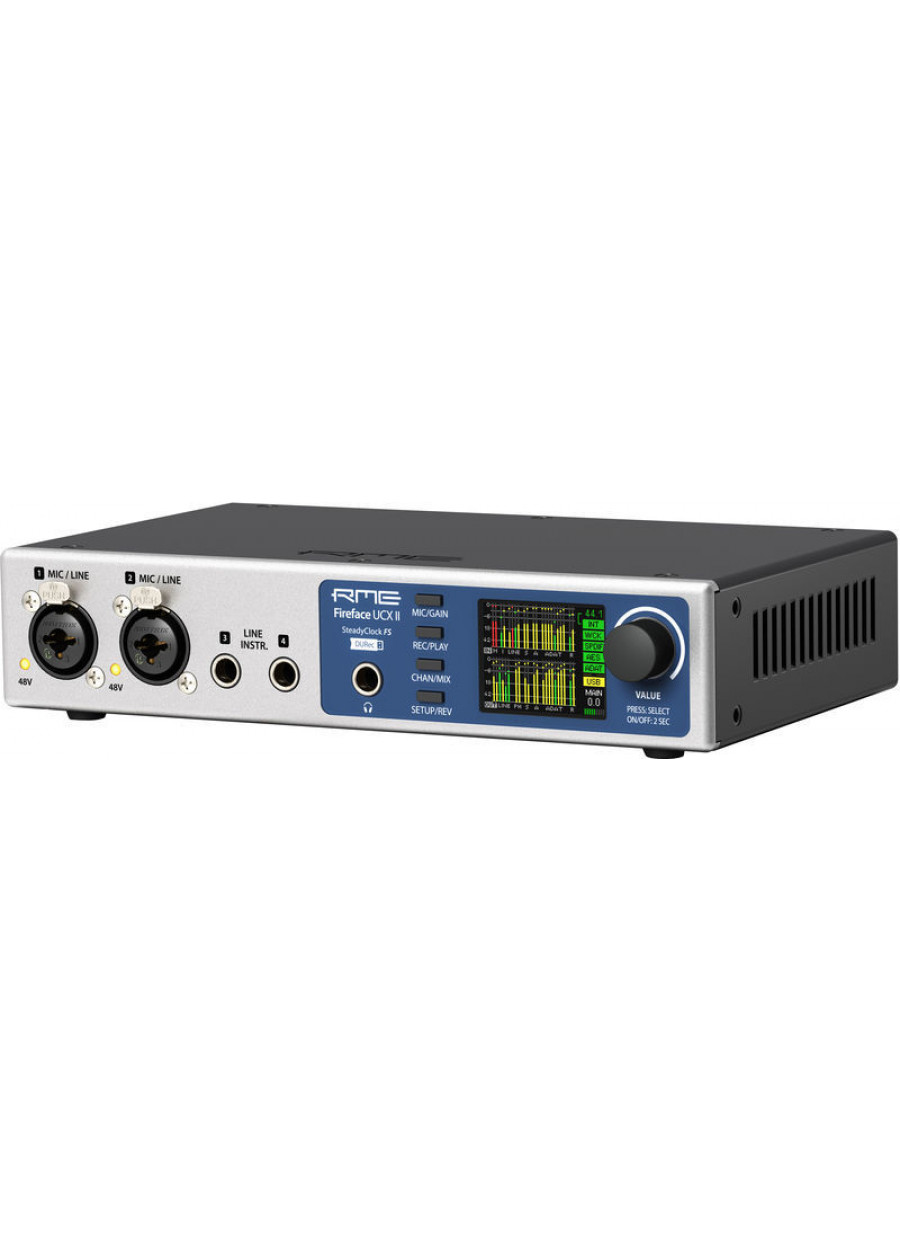

Производитель | RME |
---|---|
Модель | FirefaceUCXII |
