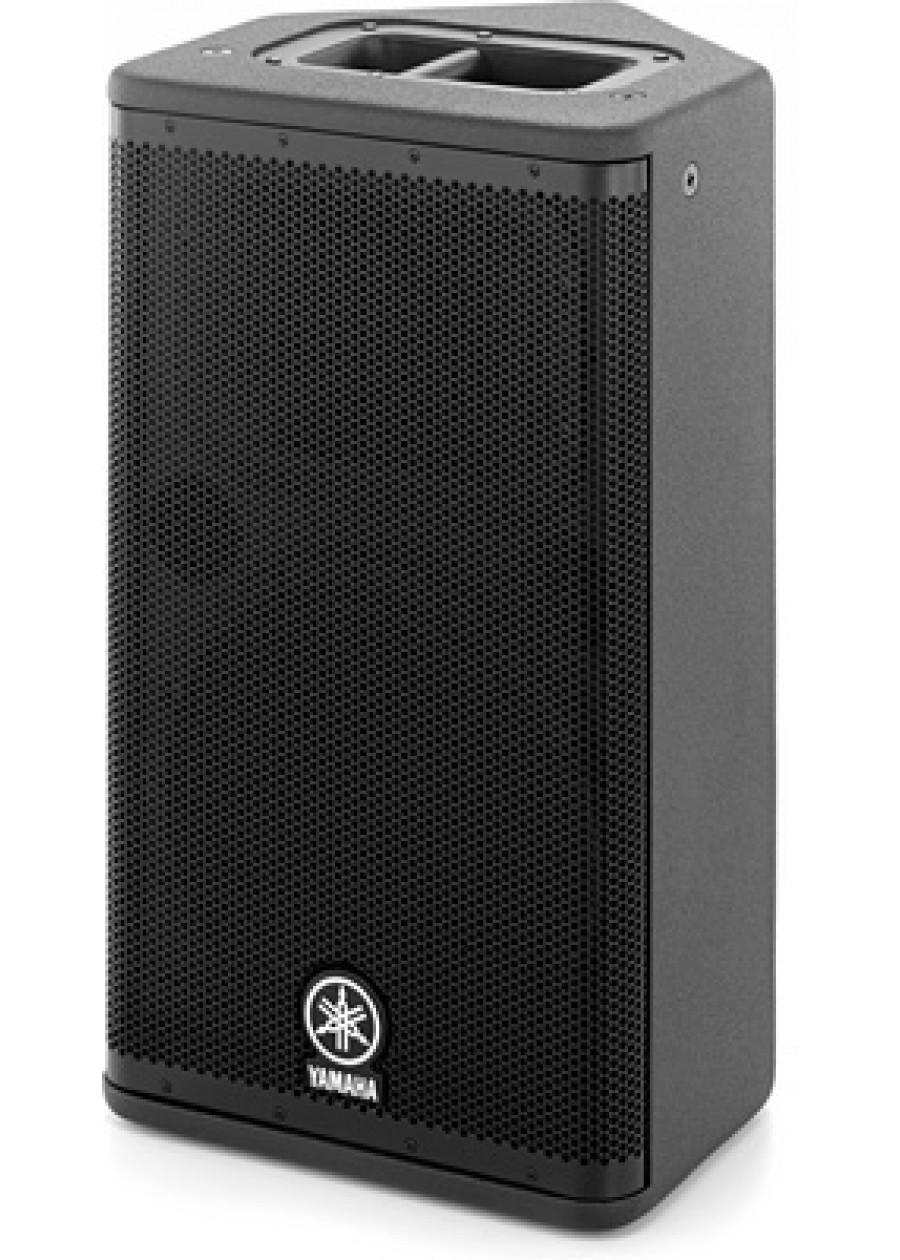

| General specifications | DSR112 | |
|---|---|---|
| Speaker type | 12" 2-way, Bi-amp Powered Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 55Hz ~ 20kHz | |
| Frequency response (-3dB) | 60Hz ~ 18kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 12" cone |
| HF | 2" Titanium diaphragm compression driver | |
| Crossover | FIR-X tuning (linear phase FIR filter) 1.7kHz | |
| Output power | Dynamic: 1500W (LF: 1020W, HF: 480W), Continuous: 1300W (LF: 850W HF: 450W) | |
| Maximum output level (1m; on axis) | 134dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 (Balanced), TRS Phone Jack x1 (Balanced) OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT | |
| Processors | D-CONTOUR (Dynamic CONTOUR) | |
| Power consumption | 100W | |
| Flying and mounting hardware | 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc) | |
| Pole socket | 35mm (Bottom Board) | |
| Dimensions | W | 370mm (14 5/8") |
| H | 638mm (25 2/8") | |
| D | 368mm (14 4/8") | |
| Net weight | 21.2kg (47lbs) | |
Дополнительная информация
| Производитель | YAMAHA |
|---|---|
| Модель | DSR112 |
