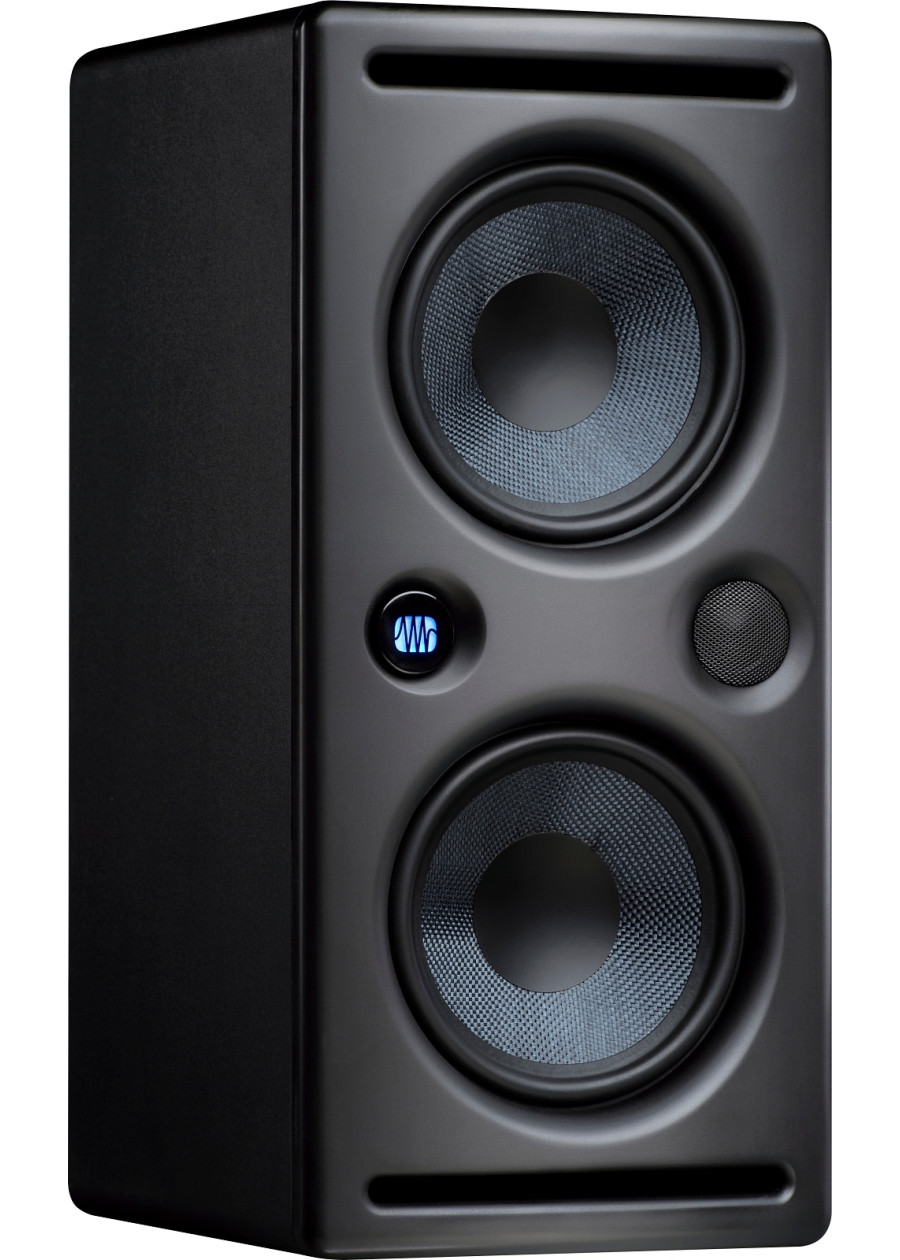

Conventional two-way speaker designs can cause significant early reflections from their surrounding environment. The Eris E66 studio monitor overcomes this by positioning a 1.25-inch, silk dome, high-frequency driver between two 6.5-inch midrange drivers that cover the same frequency range.
The combined signal of the two relatively small drivers propagates forward like a single waveform, behaving like a single, larger driver. This mutual coupling provides a highly dynamic output in a compact footprint resulting in size-defying bass reproduction. At the same time, the two smaller woofers work in parallel to partially contain the dispersion of the tweeter, minimizing phase displacement. The result is incredibly detailed stereo imaging.
Like all Eris studio monitors, the E66 offers flexible connectivity and extensive acoustic tuning controls. The three-position Acoustic Space switch plus High and Mid controls help to mitigate room anomalies. A Low Cutoff filter makes it easy to integrate a Temblor® subwoofer into your monitor setup.
Electronics
- Voltage: 100-120V
- Wattage: LF Amplifier - 80W, HF Amplifier - 65W
Hardware
- Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard
Monitors
- Protections: RF Interference, Output-Current Limiting, Over-Temperature, Turn-On/Off Transient, Subsonic Filter, External Mains Fuse
Audio Controls
- Volume Range: A-Type Taper
- MF Control: Variable (-6 to +6 dB)
- HF Control: Variable (-6 to +6 dB)
- Low Cut: Flat, 80 Hz, 100 Hz
- Acoustic Space: Flat, -2 dB, -4 dB
- Peak SPL: 106 dB (at 1 Meter)
- Crossover Frequency: 2.4 kHz

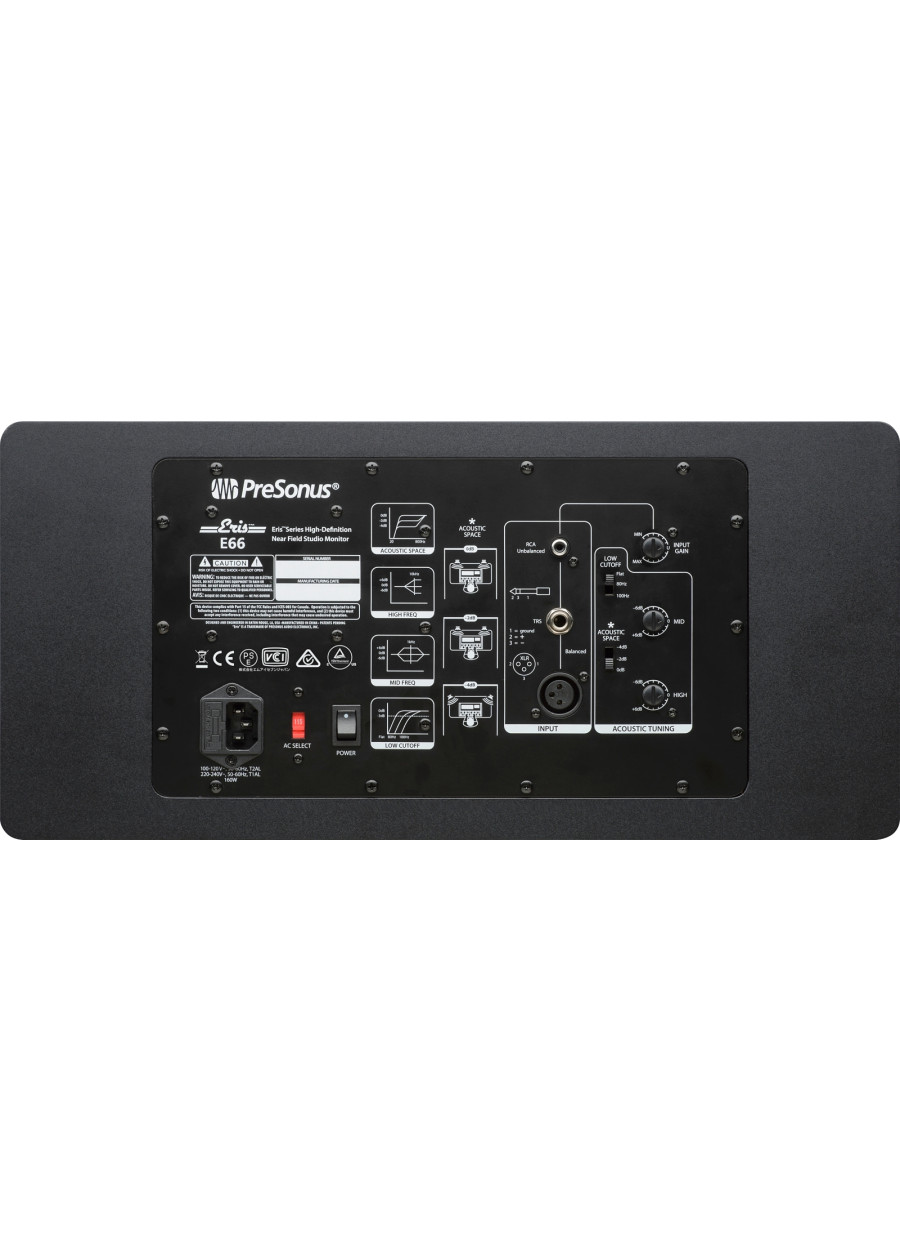

- Monitor Inputs: 1 x Balanced XLR, 1 x Balanced 1/4" TRS, 1 x Unbalanced RCA
- HF Transducers: 1.25” Silk Dome Tweeter
- LF Transducers: Dual 6.5"
- Frequency Response: 45 Hz – 22 kHz
- Input Impedance: 10 kΩ
- Monitor Amplifier Power: LF Amplifier - 80W, HF Amplifier - 65W
- Input Impedance: 10 kΩ
Miscellaneous
- Connection Type: IEC
Дополнительная информация
| Производитель | PRESONUS |
|---|---|
| Модель | 2777506110 |
