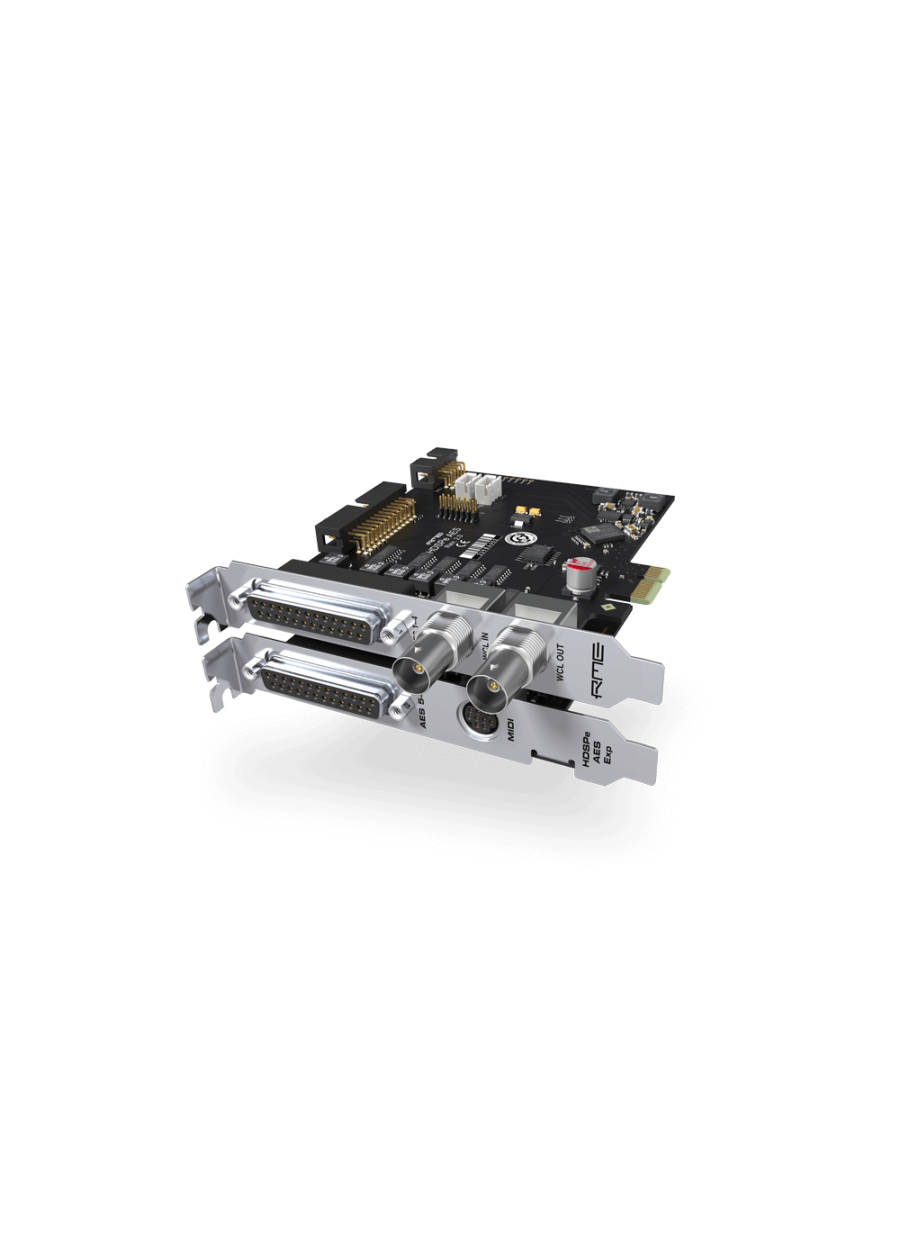

RME HDSPe AES Card HDSPeAES

The HDSPe AES is a short-length PCI Express card with AES/EBU interfaces. It provides eight AES inputs (16 channels) and eight AES outputs (16 channels) at 192 kHz sample rate. The card is also equipped with two MIDI I/O ports, word clock I/O, and can be used with the optional TCO module for synchronization to LTC and video.

  • Support for 192 kHz at full channel count
  • Native support for Double and Quad Wire transfer
  • Direct conversion between these formats
  • SteadyClock for highest jitter suppression and clock regeneration
  • Intuitive and clearly laid-out user interface
  • TotalMix: 512 channel mixer with 42 bit internal resolution
  • 48 level meter Peak/RMS, hardware-computed
899,00 €

Доступность: Есть в наличии

Производитель: RME

Модель: HDSPeAES

Арт.: INV08803

Есть в наличии
  • 1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
  • 2.5 Gbps line speed
  • Packet-based full-duplex communication (up to 500 MB/s transfer rate)
  • All settings: changeable in real-time
  • Automatic and intelligent master/slave clock control
  • Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring
  • Sync sources: 8 x AES, word clock, internal
  • Varipitch: by input signal or word clock
  • Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)
  • Sample rate range: AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz
  • Jitter: < 1 ns, internal and all inputs
  • Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
  • Comes with DIGICheck: the ultimate measurement, analysis and test tool
  • Input 8 x AES, 2 x MIDI, word clock (BNC)
  • Output 8 x AES, 2 x MIDI, word clock (BNC)
  • Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper
  • Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
  • MIDI input and output: via four 5-pin DIN jacks
