Size/Weight
|
|
Dimensions
|
Width
|
1,336 mm [52-5/8"]
|
|
Height
|
145 mm [5-11/16"] (with music rest: 328 mm [12-15/16"])
|
|
Depth
|
376 mm [14-13/16"] (with music rest: 403 mm [15-7/8"])
|
|
Weight
|
Weight
|
22.0 kg [48 lb, 8 oz]
|
|

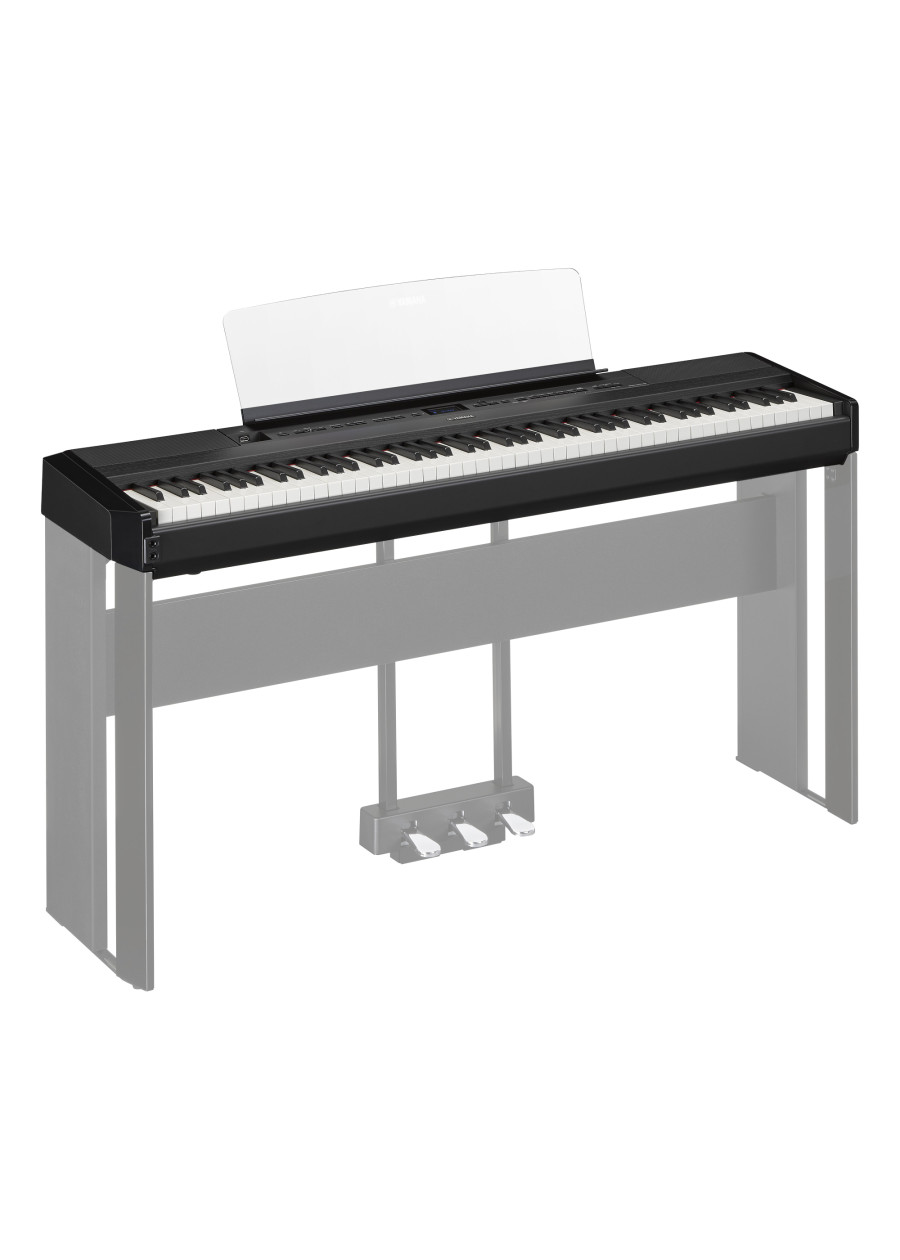

Dimensions (with optional stand)
|
Width
|
1,336 mm [52-5/8"]
|
|
Height
|
757 mm [29-13/16"] (with music rest: 939 mm [37-0"])
|
|
Depth
|
377 mm [14-13/16"] (with music rest: 402 mm [15-13/16"])
|
|
Dimensions of Packing Box
|
W x H x D
|
1,457 mm x 311 mm x 531 mm [57-3/8" x 12-1/4" x 20-7/8"]
|
|

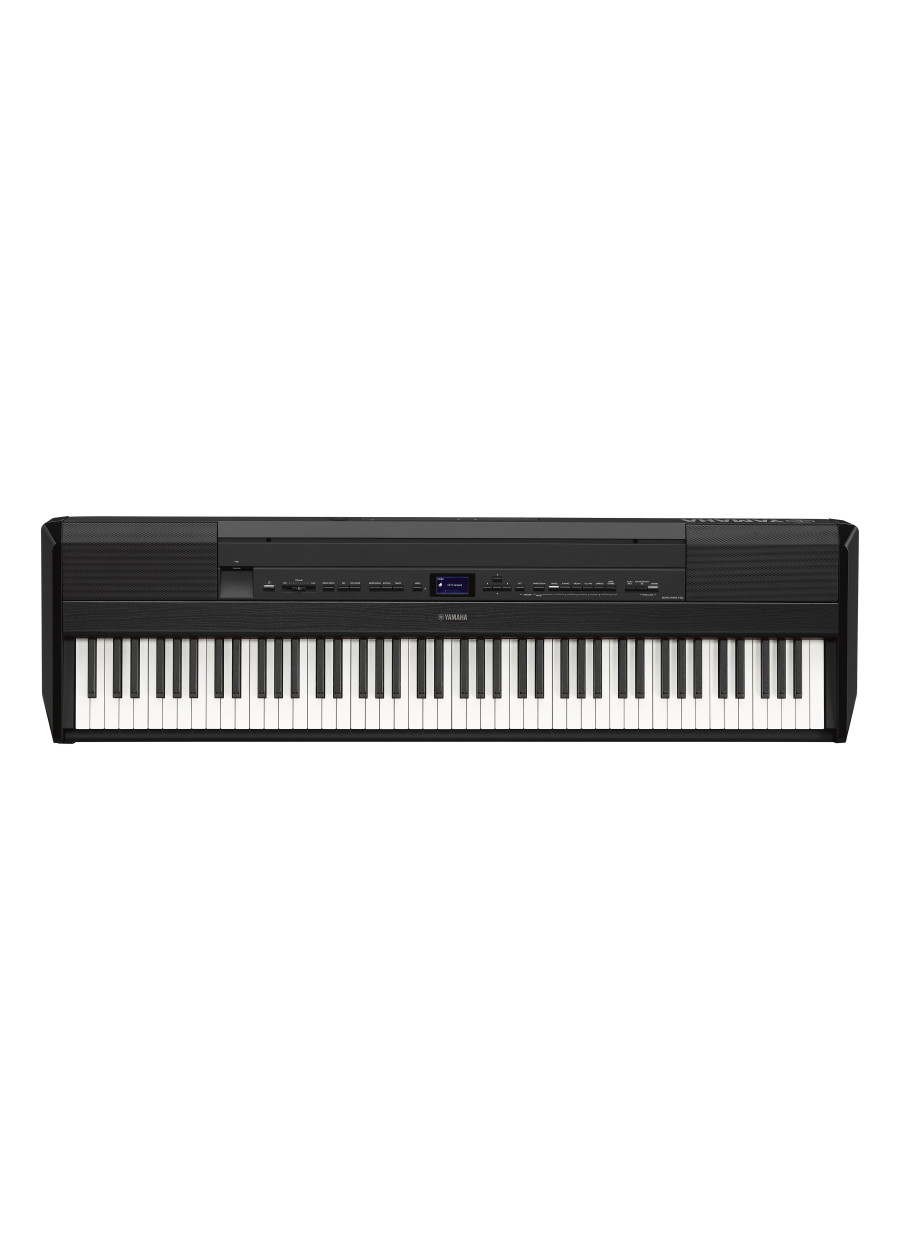

Control Interface
|
|
Keyboard
|
Number of Keys
|
88
|
|
Type
|
GrandTouch-S™ Keyboard: wooden keys (white only), synthetic
ebony and ivory key tops, escapement
|
|
Touch Sensitivity
|
Hard2/Hard1/Medium/Soft1/Soft2/Fixed
|
|
Pedal
|
Number of Pedals
|
3 (when using the pedal unit, LP-1/FC35)
|
|
Assignable Functions
|
Sustain (Switch), Sustain (Continuous), Sostenuto, Soft,
Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor,
Song Play/Pause
|
|
Display
|
Type
|
Full Dots LCD
|
|
Size
|
198 x 100 dots
|
|
Language
|
English, Japanese
|
|
Panel
|
Language
|
English
|
|
Voices
|
|
Tone Generator
|
Piano Sound
|
Yamaha CFX, Bösendorfer Imperial
|
|
Binaural Sampling
|
Yes ("CFX Grand" Voice only)
|
|
Virtual Resonance Modeling (VRM)
|
Yes
|
|
Grand Expression Modeling
|
Yes
|
|
Key-off Samples
|
-
|
|
Damper Resonance
|
-
|
|
Polyphony (max.)
|
256
|
|
Preset
|
Number of Voices
|
44 Voices + 18 Drum/SFX Kits + 480 XG Voices
|
|
Compatibility
|
XG (GM), GS (for Song playback), GM2 (for Song playback)
|
|
Effects
|
|
Types
|
Reverb
|
7 types
|
|
Chorus
|
3 types
|
|
Master EQ
|
3 Preset + 1 User
|
|
Insertion Effect
|
12 types
|
|
Intelligent Acoustic Control (IAC)
|
Yes
|
|
Stereophonic Optimizer
|
Yes
|
|
Sound Boost
|
3 types
|
|
Wall EQ
|
-
|
|
Functions
|
Dual/Layers
|
Yes
|
|
Split
|
Yes
|
|
Duo
|
Yes
|
|
Songs
|
|
Preset
|
Number of Preset Songs
|
21 Voice Demo Songs + 50 Classics
|
|
MIDI Recording
|
Number of Songs
|
250
|
|
Number of Tracks
|
16
|
|
Data Capacity
|
Approx. 500 KB/Song (approx. 22,000 notes)
|
|
Audio Recording (USB memory)
|
Recording Time (max.)
|
80 minutes/Song
|
|
Compatible Data Format
|
Playback
|
SMF (Format 0, Format 1), WAV (44.1 kHz sample rate, 16-bit
resolution, stereo)
|
|
Recording
|
SMF (Format 0), WAV (44.1 kHz sample rate, 16-bit
resolution, stereo)
|
|
Functions
|
|
Piano Room
|
Yes
|
|
Rhythm
|
Number of Rhythms
|
40
|
|
Registration Memory
|
Number of Buttons
|
6 (x 4 banks)
|
|
Overall Controls
|
Metronome
|
Yes
|
|
Tempo Range
|
5 - 500
|
|
Transpose
|
-12 - 0 - +12
|
|
Tuning
|
414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
|
|
Scale Type
|
7 types
|
|
USB Audio Interface
|
44.1 kHz, 24 bit, stereo
|
|
Bluetooth
|
Audio/MIDI (varies by area)
|
|
Storage and Connectivity
|
|
Storage
|
Internal Memory
|
Total maximum size approx. 1.4 MB
|
|
External Drives
|
USB flash drive
|
|

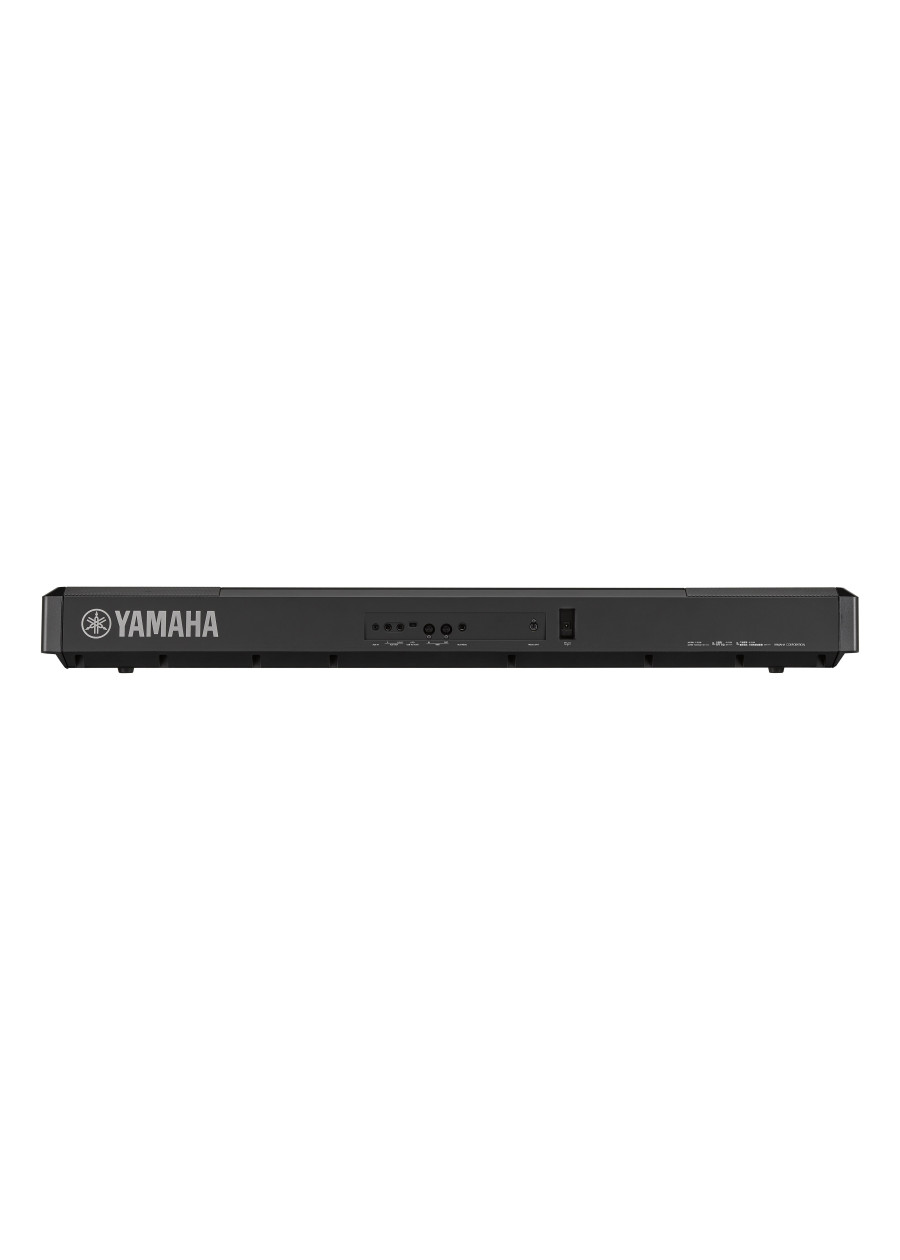

Connectivity
|
Headphones
|
Standard stereo phone jack (x 2)
|
|
MIDI
|
IN, OUT
|
|
AUX IN
|
Stereo mini jack
|
|
AUX OUT
|
Standard phone jack (L/L+R, R)
|
|
USB TO DEVICE
|
Type A
|
|
USB TO HOST
|
Type C
|
|
DC IN
|
16 V
|
|
Sustain Pedal
|
Yes (assignable)
|
|
Pedal Unit
|
Yes
|
|
Amplifiers and Speakers
|
|
Amplifiers
|
(20 W + 6 W) x 2
|
|
Speakers
|
(Oval (12 cm x 6 cm) + 2.5 cm (dome)) x 2
|
|
Power Supply
|
|
AC Adaptor
|
PA-300C (Output: DC 16 V, 2.4 A)
|
|
Power Consumption
|
18 W (when using PA-300C AC adaptor)
|
|
Accessories
|
|
Included Accessories
|
Owner’s Manual, Online Member Product Registration, Music
rest, Foot pedal (FC3A), Power cord*/AC adaptor* (PA-300C)
*Varies by area
|
|
Separately Sold Accessories
|
Headphones (HPH-150, HPH-100, HPH-50), Keyboard stand
(L-515), Pedal unit (LP-1, FC35), Foot pedal (FC3A),
Footswitches (FC4A, FC5), AC adaptor* (PA-300C), USB
wireless LAN adaptor (UD-WL01) *Varies by area
|
