SPECIFICATIONS

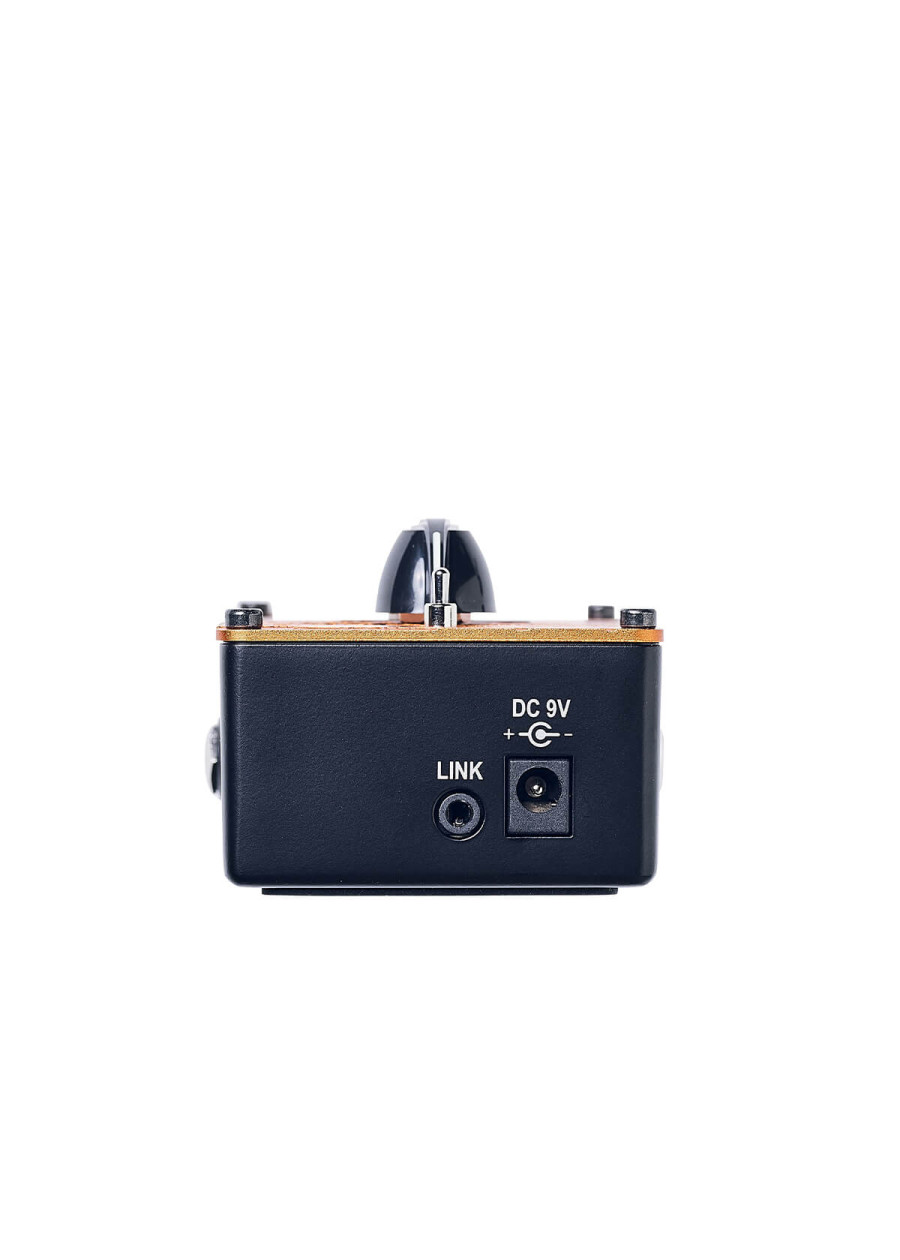

- INPUTS/OUTPUTS: INPUT terminal (monaural phone jack), OUTPUT terminal (monaural phone jack), DC.9V terminal

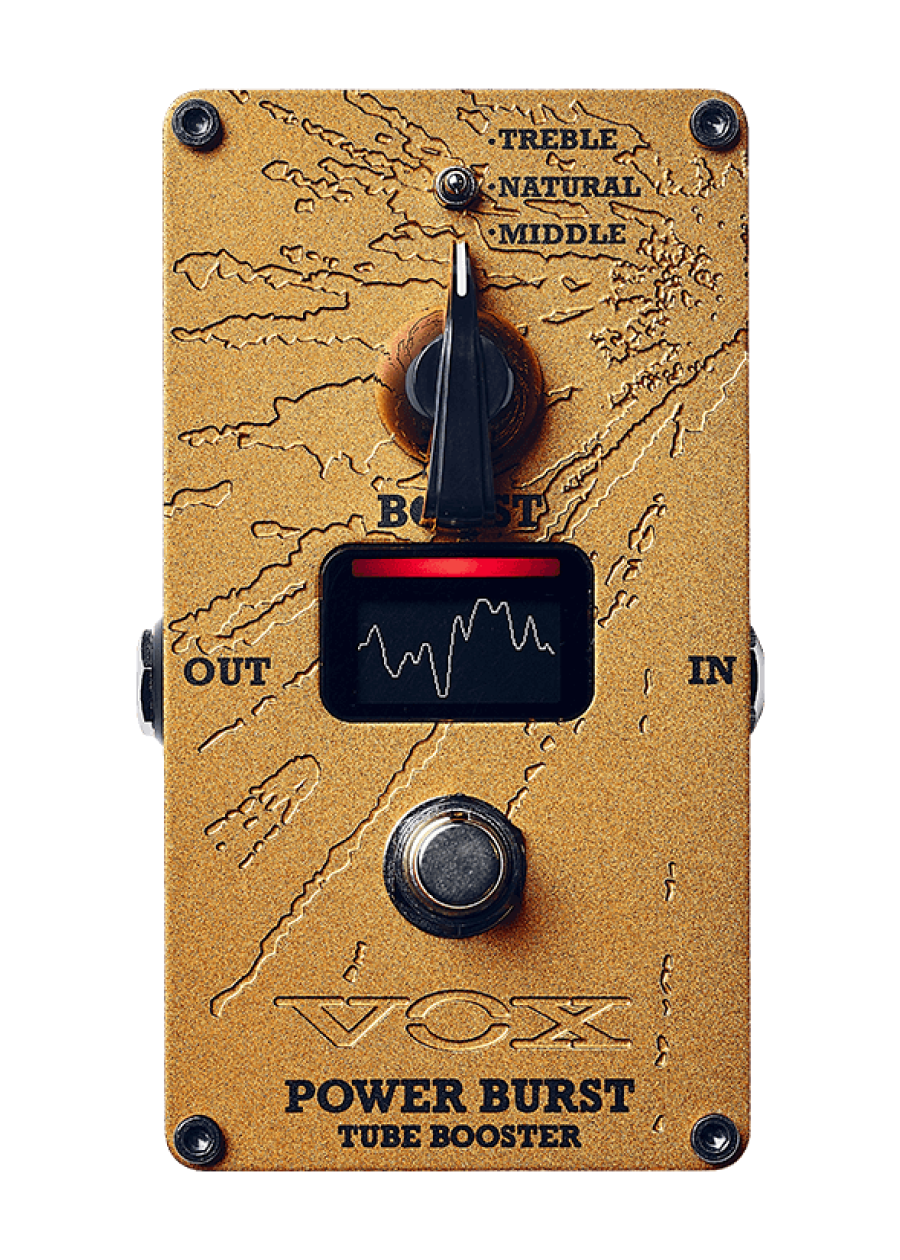

- CONTROLS:
- BOOST Knob: Adjusts the amount of boost. Turning it to the right adds the distinctive saturation and compression typical of vacuum tubes.
- Mini Switch: Offers three modes based on personal preference.
- TREBLE: Emphasizes the high frequencies, suitable for situations where you want to highlight the treble.
- NATURAL: Natural tube sound mode, serving as the standard mode.
- MIDDLE: Emphasizes the mid-range frequencies, ideal for producing a thick sound or during solo performances.
- POWER SUPPLY*: 9V alkaline batteries (6LF22/6LR62) or DC.9V AC adapter (both sold separately)
*: The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.
- DIMENSIONS (W X D X H): 72mm x 120mm x 55mm (plug retracted/ VE-TS H:54mm)
- WEIGHT: 300 g (excluding batteries)
Additional Information
| Manufacturer | VOX |
|---|---|
| Model | VEPB |
