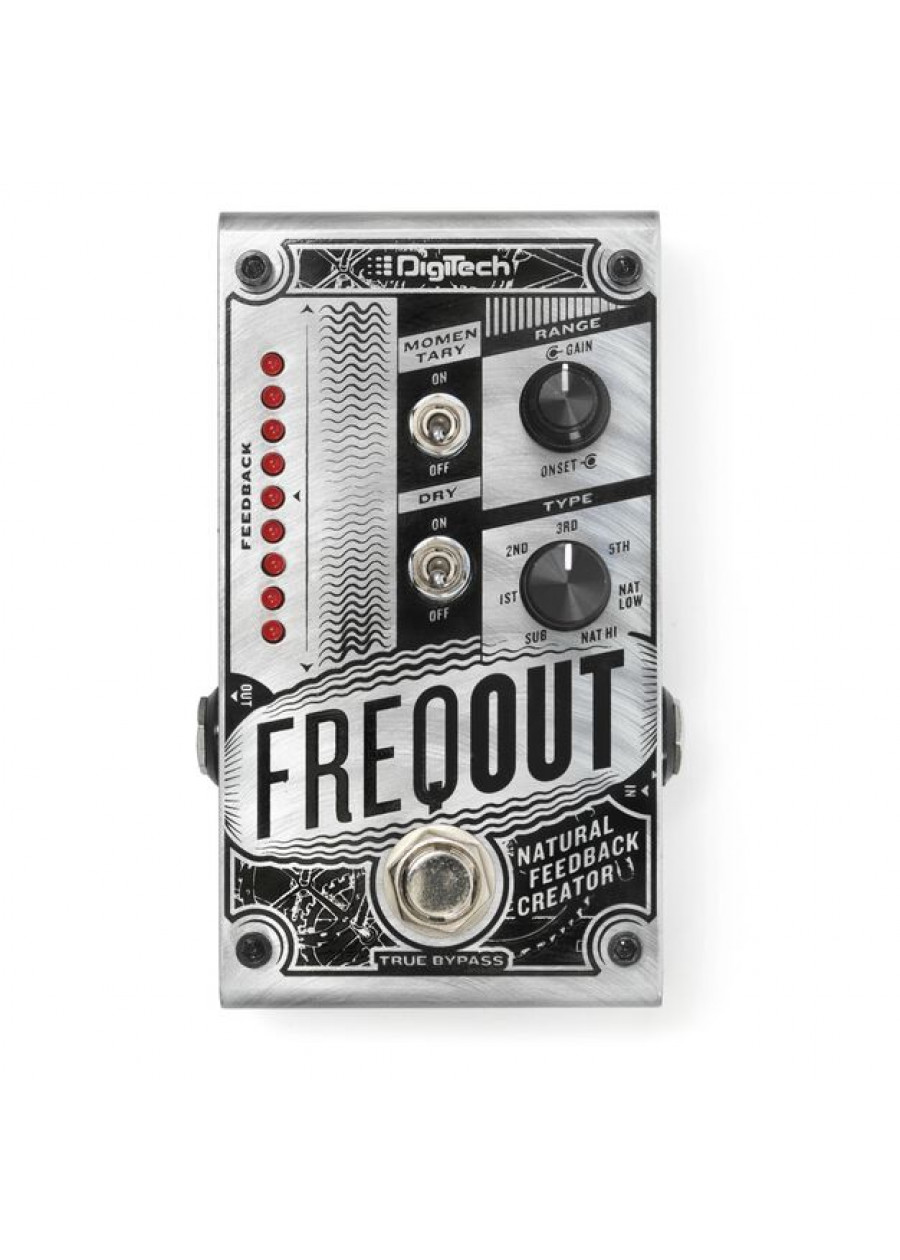

- Controls: Feedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
- Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
- THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
- A/D/A Conversion: 24-bit
- Power Consumption: 2.1 Watts (235 mA typical @ 9 VDC)
- Power Requirements: 9 VDC External Adapter (sold separately)
- Power Adapter (Sold Separately): PS0913DC-04 (US, JA, EU, AU, UK)
- Power Adapter Output: 9 VDC 1.3 A
Audio Output
Output
Type: 1/4” Unbalanced TS
(Tip-Sleeve)
Max Output
Level: +10 dBu
Output
Impedance: 1 kΩ (Effect enabled
or effect bypassed w/ Momentary switch on) ; True Bypass
(Effect bypassed w/ Momentary switch off)
Audio Input
Input
Type: 1/4” Unbalanced TS
(Tip-Sleeve)
Max Input
Level: +5 dBu
Input
Impedance: 1 MΩ (Effect
enabled or effect bypassed w/ Momentary switch on) ; True
Bypass (Effect bypassed w/ Momentary switch off)
Dimensions
Length: 4.75"
Width: 2.875"
Height: 1.75"
Weight: 0.8
lbs.
Additional Information
| Manufacturer | DIGITECH |
|---|---|
| Model | Freqout |
