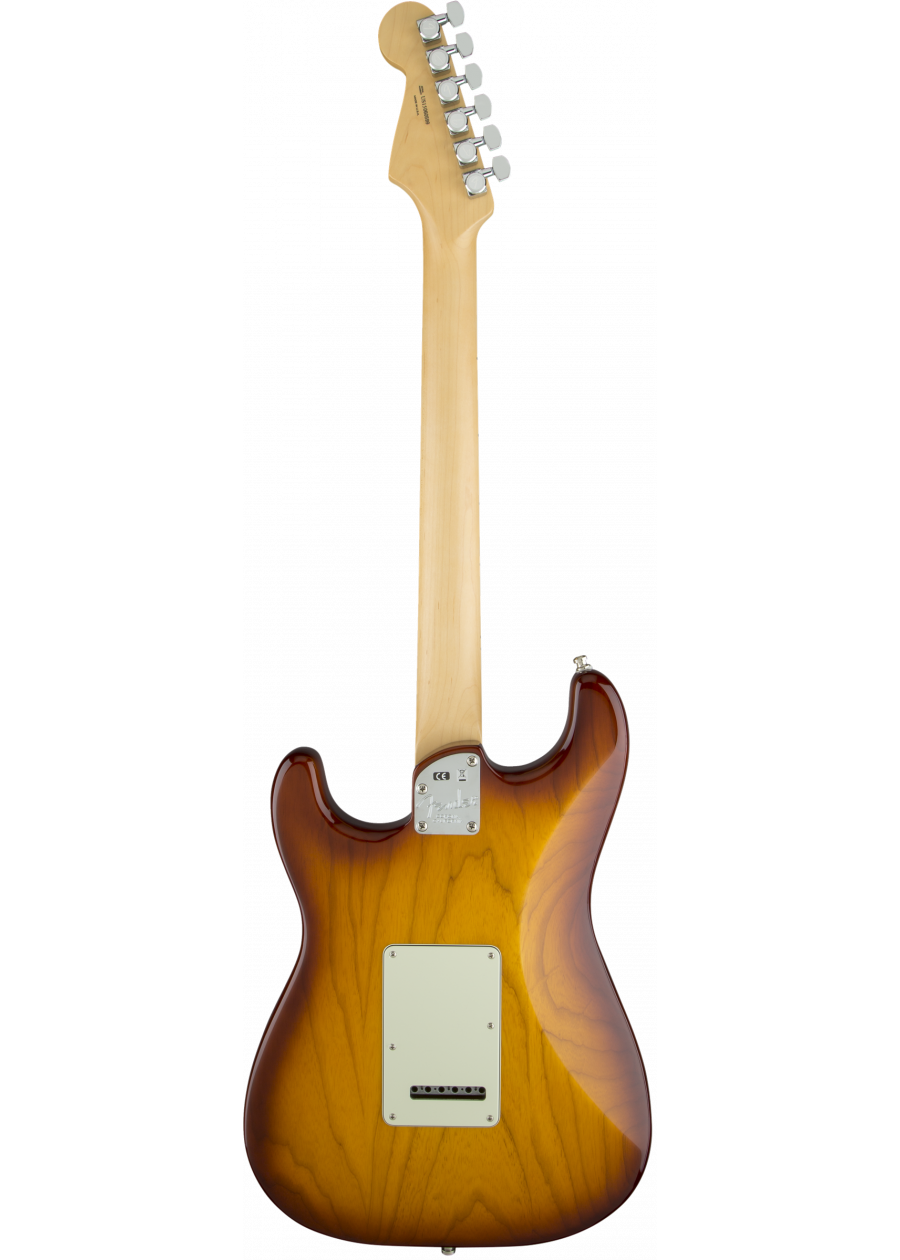

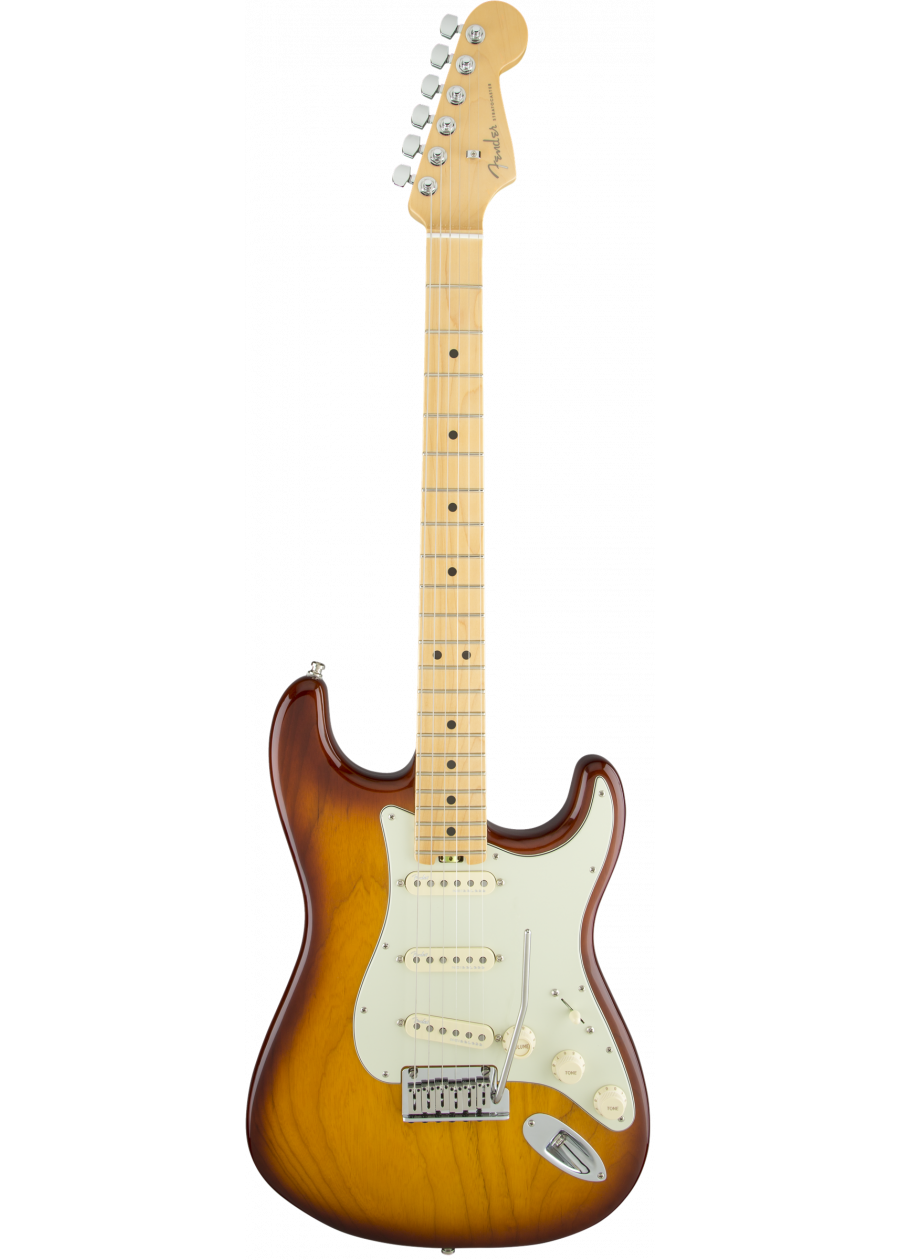

- Model NameAmerican Elite Stratocaster®, Maple Fingerboard, Tobacco Sunburst (Ash)
- Model #0114002752
- SeriesAmerican Elite
- Country Of OriginUS
- ColorTobacco Sunburst
- BodyAsh
- Body FinishGloss Polyurethane
- Body ShapeStratocaster®
- Neck MaterialMaple
- Neck FinishSatin Urethane with Gloss Urethane Headstock Face
- Neck ShapeCompound Back Shape, Modern "C" to "D"
- Scale Length25.5" (648 mm)
- FingerboardMaple
- Fingerboard Radius9.5" to 14" Compound Radius (241 mm-355.6 mm)
- Number of Frets22
- Frets SizeMedium Jumbo
- String NutBone
- Nut Width1.685" (42.8 mm)
- Position InlaysLarge Black Pearloid Dots
- Truss Rods2-Way Adjustable
- Bridge PickupNew 4th Generation Noiseless™
- Middle PickupNew 4th Generation Noiseless™
- Neck PickupNew 4th Generation Noiseless™
- ControlsMaster Volume (with S-1™ Switch), Tone 1. (Neck Pickup), Tone 2. (Middle and Bridge Pickups; No-Load™ Tone control)
- Pickup Switching5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
- Pickup ConfigurationSSS
- Bridge2-Point Deluxe Synchronized Tremolo with Pop-In Arm
- Hardware FinishChrome
- Tuning MachinesDeluxe Cast/Sealed Locking (all short posts)
- Pickguard3-Ply Mint Green
- Control KnobsAged White Soft Touch Knobs
- StringsFender® USA, NPS, (.009-.042 Gauges)
- Dimensions6.50x17.00x43.00 IN
- Weight22.00 LB
Additional Information
| Manufacturer | FENDER |
|---|---|
| Model | 0114002752 |
