- Product Specs

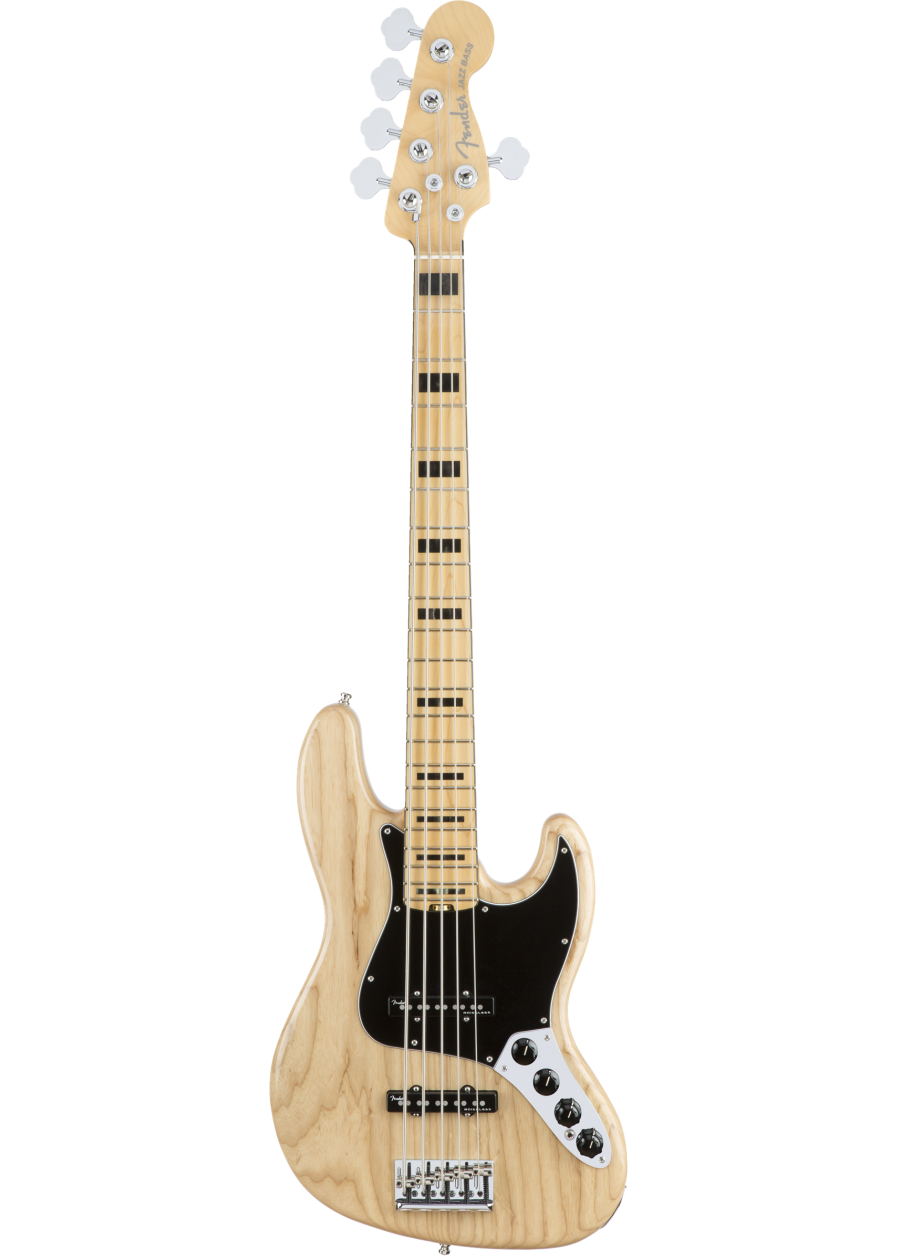

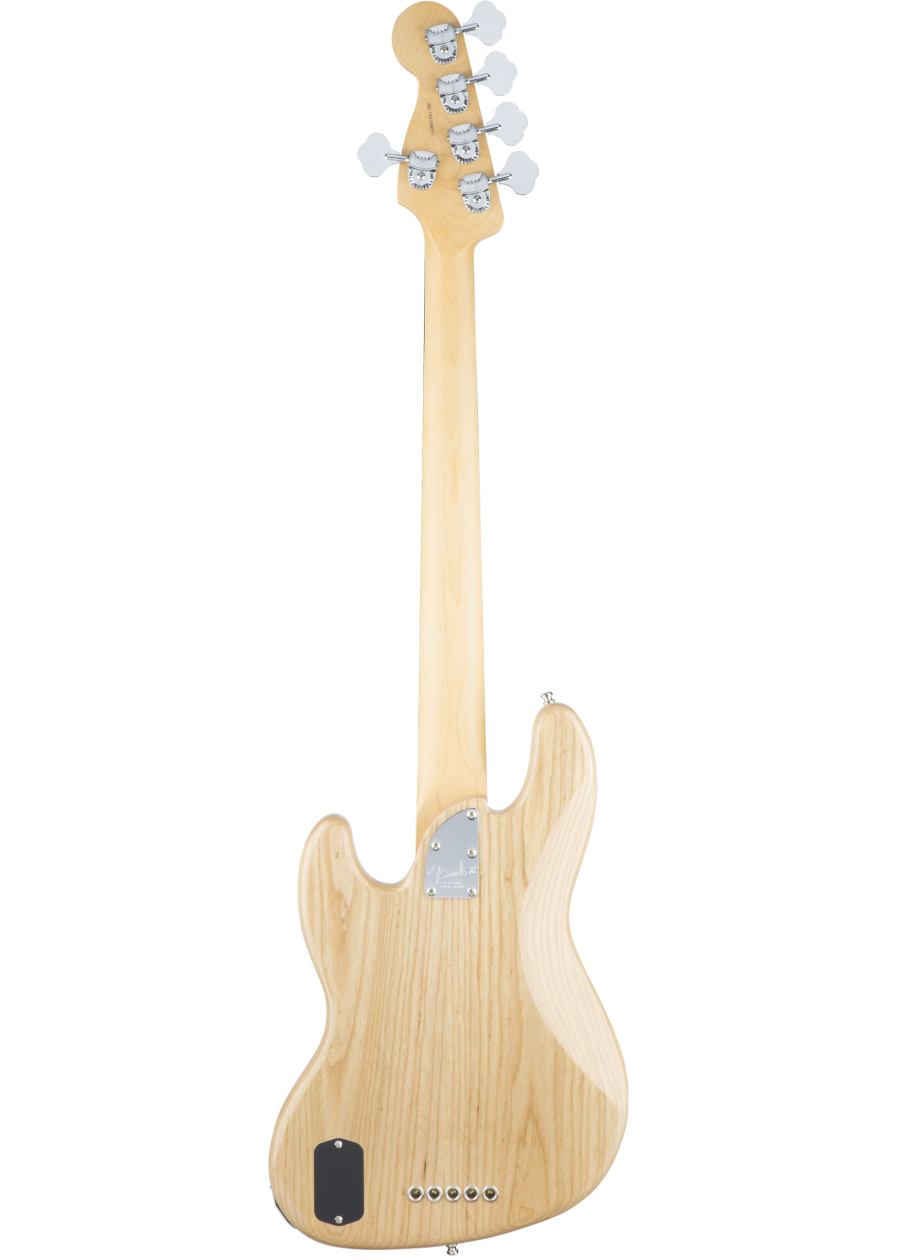

- Model NameAmerican Elite Jazz Bass® V Ash, Maple Fingerboard, Natural
- Model #0197102721
- SeriesAmerican Elite
- Country Of OriginUS
- ColorNatural
- BodyAsh
- Body FinishGloss Polyurethane
- Body ShapeJazz Bass®
- Neck MaterialMaple
- Neck FinishSatin Urethane with Gloss Urethane Headstock Face
- Neck ShapeCompound Back Shape, Modern "C" to "D"
- Scale Length34" (864 mm)
- FingerboardMaple
- Fingerboard Radius9.5" to 14" Compound Radius (241 mm-355.6 mm)
- Number of Frets21
- Frets SizeMedium Jumbo
- String NutBone
- Nut Width1.875" (47.6 mm)
- Position InlaysBlack Block
- Truss RodsDual-Action
- Bridge PickupNew 4th Generation Noiseless™
- Neck PickupNew 4th Generation Noiseless™
- ControlsMaster Volume, Pan Pot (Pickup Selector), Treble Boost/Cut, Midrange Boost/Cut, Bass Boost/Cut, Active/Passive Mini Toggle
- Pickup Switching2-Way Mini Toggle Switch for Active/Passive Mode. In Passive Mode, Only The Volume, Pan and Passive Tone Controls Function. In Active Mode, All Controls Function.
- Pickup ConfigurationSS
- Bridge5-Saddle HiMass™ Vintage (String-Through-Body or Topload)
- Hardware FinishNickel/Chrome
- Tuning MachinesFender® "F" Light-Weight Vintage-Paddle Keys with Tapered Shafts
- Pickguard3-Ply Black/White/Black
- Control KnobsVintage Style Black Plastic Jazz Bass®
- StringsFender® USA NPS, (.45-.125 Gauges)
- Dimensions6.00x17.50x52.00 IN
- Weight27.00 LB
Additional Information
| Manufacturer | FENDER |
|---|---|
| Model | 0197102721 |
