Outline
|
Type
|
Powered subwoofer with a line array speaker
|
Mixing capability
|
Mixing channels
|
5 (Mono x3 + Stereo x1)
|
Input channel functions
|
Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
|
Output channel functions
|
MODE (SPEECH/MUSIC/CLUB)
|
I/O
|
Inputs
|
Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line),
Link in x1
|
Outputs
|
Link out x1, Monitior out x1
|
Bluetooth
|
Bluetooth Ver.5.0, A2DP (SBC, AAC)
|
Control and others
|
Reverb foot switch, STAGEPAS Controller (iOS/Android app)
|
On-board processors
|
DSP
|
SPX digital reverb (4 program, parameter control)
|
General specifications
|
Speaker type
|
Powered subwoofer: Bass-reflex type, Line array speaker:
Enclosed
|
Frequency range (-10dB)
|
37 Hz - 20 kHz
|
Coverage area
|
H170゚ x V30゚
|
Crossover
|
240 Hz
|
Maximum output level (1m; on axis)
|
125 dB SPL
|
Components
|
LF
|
Powered subwoofer: 12” (30 cm) Cone
|
HF
|
Line array speaker: 1.5” (3.8 cm) Cone x 10
|
Amplifier class
|
Class-D
|
Power rating
|
Dynamic
|
1100 W
|
Power consumption
|
25 W (Idle), 91 W (1/8 power)
|
Power requirements
|
Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V
60 Hz, 220 V-240 V 50 Hz/60 Hz
|
Handle
|
Top of powered subwoofer x1
|
Dimensions (W x H x D)
|
System: 334 x 2,000 x 418 mm (maximum), Line array speaker:
67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm,
Spacer: 67 x 555 x 86 mm (each)
|
Weight
|
System: 23.0 kg (maximum), Line array speaker: 1.8 kg,
Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
|
Accessories
|

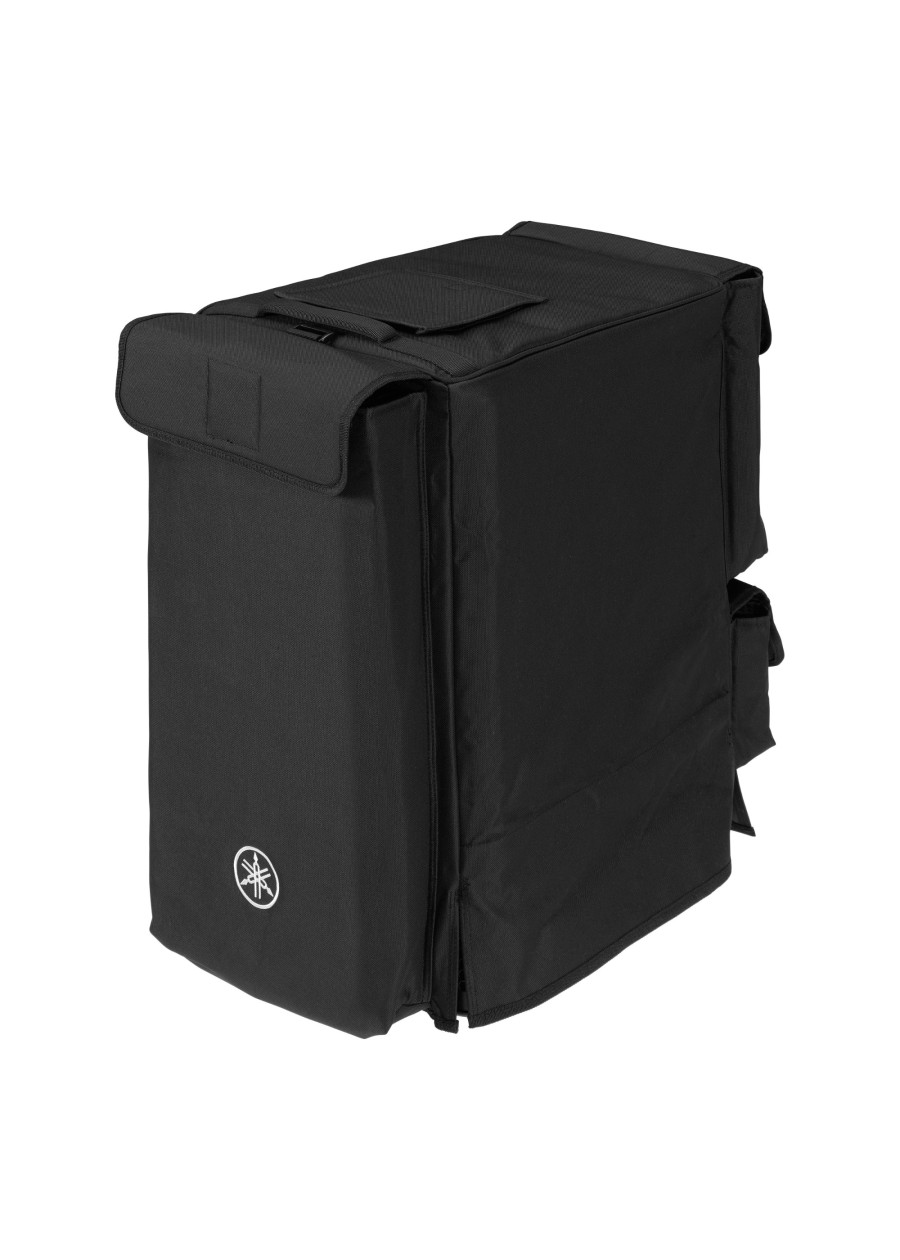

Power cord x 1, Cover x 1
|
Options
|
Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for
reverb ON/OFF)
|
