| PSR-E283 | ||
|---|---|---|
| Size/Weight | ||
| Dimensions | Width | 37" (940 mm) |
| Height | 4-1/8" (104 mm) | |
| Depth | 12-1/2" (317 mm) | |
| Weight | Weight | 8 lb (4.0 kg, 13 oz) (not including batteries) |
| Control Interface | ||
| Keyboard | Number of Keys | 61 |
| Display | Type | LCD display |
| Language | English | |
| Panel | Language | English |
| Voices | ||
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 32 |
| Preset | Number of Voices | 392 Voices + 18 drum/SFX kits |
| Effects | ||
| Types | Reverb | 9 types |
| Chorus | 5 types | |
| Master EQ | 6 types | |
| Ultra-Wide Stereo | 3 types | |
| Functions | Panel Sustain | Yes |
| Accompaniment Styles | ||
| Preset | Number of Preset Styles | 150 |
| Fingering | Smart Chord / Multi Finger | |
| Style Control | ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit, MAIN/AUTO FILL | |
| Other Features | One Touch Setting (OTS) | Yes |
| Songs | ||
| Preset | Number of Preset Songs | 122 (including 10 Rhythm Tutor and 12 Chord Study Songs) |
| Recording | Number of Songs | 1 |
| Number of Tracks | 1 | |
| Data Capacity | Approx. 300 notes | |
| Functions | ||
| Lesson/Guide | Lesson/Guide | [1 LISTEN & LEARN], [2 TIMING], [3 WAITING] |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 - 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0 - 440.0 - 453.0 Hz (approx.0.2Hz Increments) | |
| Duo | Yes | |
| Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
| Storage and Connectivity | ||
| Connectivity | DC IN | 12 V |
| Headphones | Standard stereo phone jack (PHONES/OUTPUT) | |
| Sustain Pedal | Yes | |
| AUX IN | Stereo mini jack | |
| Amplifiers and Speakers | ||
| Amplifiers | 2.5 W + 2.5 W | |
| Speakers | 4.72" (12 cm) x 2 | |
| Power Supply | ||
| Power Consumption | 6 W (When using PA-130 or an equivalent AC adaptor recommended by Yamaha) | |
| Auto Power Off Function | Yes | |
| Power Supply | Adaptors | AC Adaptor PA-130 (Included), or an equivalent recommended by Yamaha |
| Batteries | Six 1.5 V "AA" size alkaline (LR6), manganese (R6) or six 1.2 V "AA" size Ni-MH rechargeable batteries (HR6) (Not Included) | |
| Accessories | ||

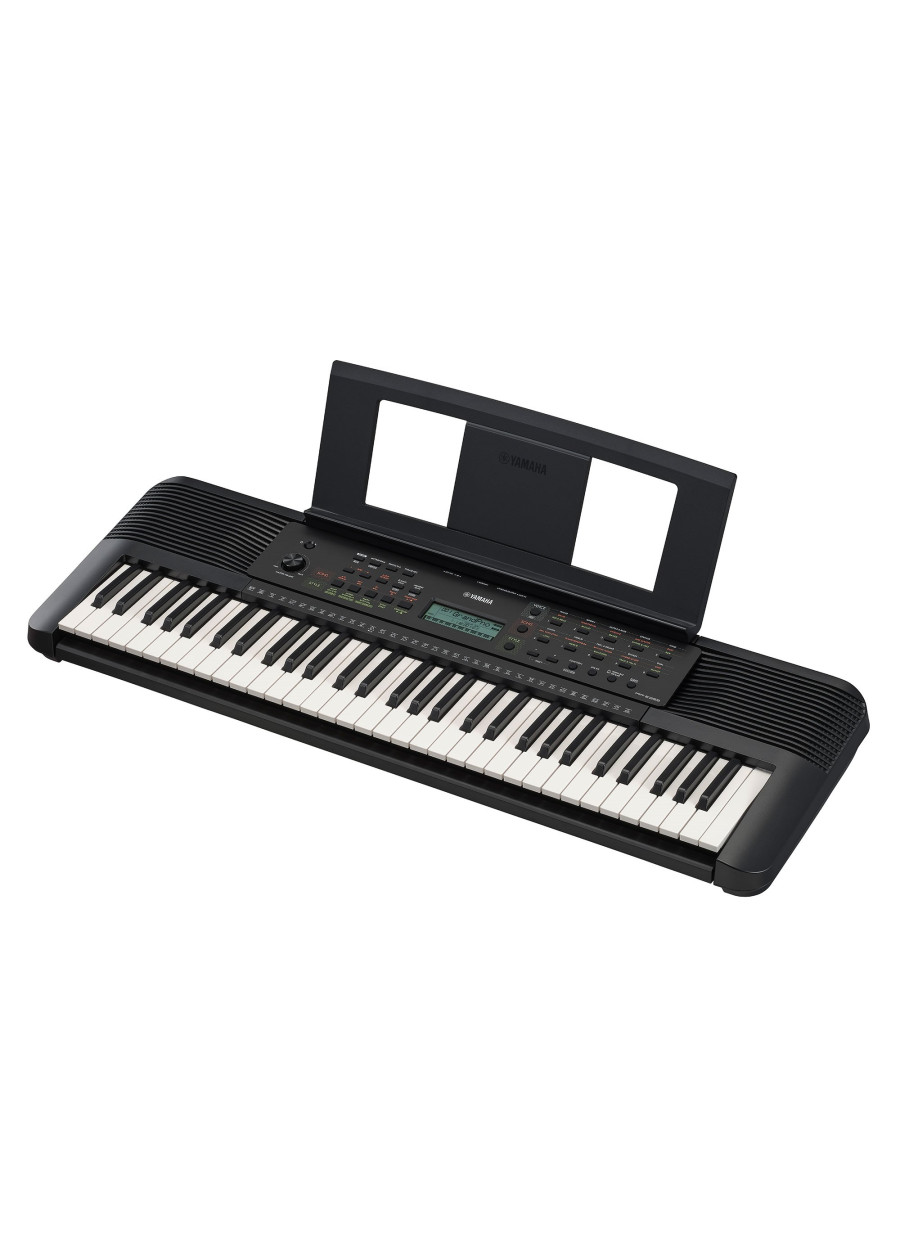

| Included Accessories | Music Rest | Yes |
Additional Information
| Manufacturer | YAMAHA |
|---|---|
| Model | PSRE283 |
