Color/Finish
|
|
Body
|
Color
|
Black
|
|
Size/Weight
|
|
Dimensions
|
Width
|
1,234 mm (48-9/16")
|
|
Height
|
151 mm (5-15/16")
|
|
Depth
|
456 mm (17-15/16")
|
|
Weight
|
Weight
|
14.2 kg (31 lb, 5 oz)
|
|
Packing Box
|
Width
|
1,460 mm (57-1/2")
|
|
Height
|
270 mm (10-5/8")
|
|
Depth
|
540 mm (21-1/4")
|
|
Control Interface
|
|
Keyboard
|
Number of Keys
|
76
|
|
Type
|
Organ (FSX), Initial Touch/Aftertouch
|
|
Touch Response
|
Normal, Easy1, Easy2, Soft1, Soft2, Hard1, Hard2
|
|
Other Controllers
|

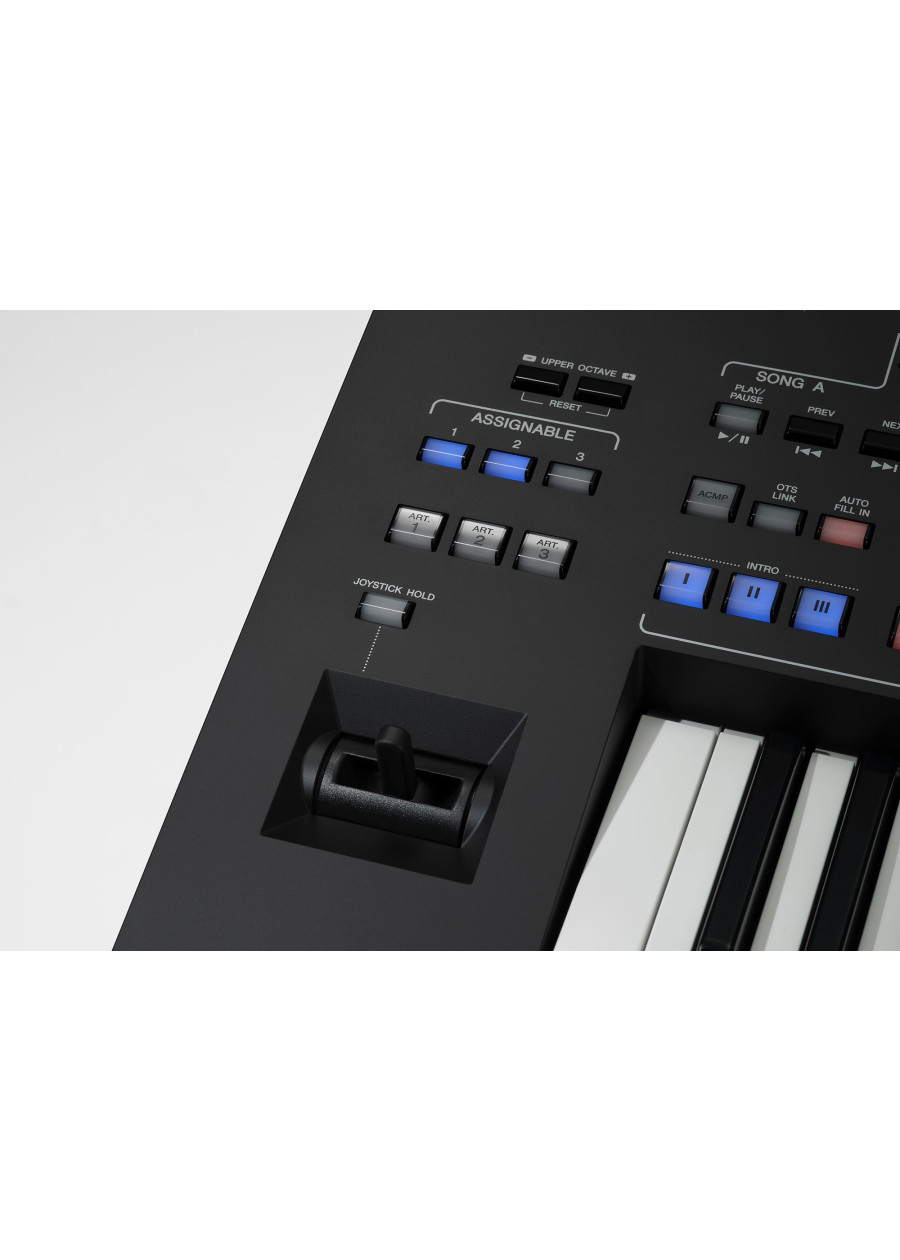

Joystick
|
Yes (Assignable)
|
|
Control Knobs
|
6 (Assignable, with LED gauge)
|
|

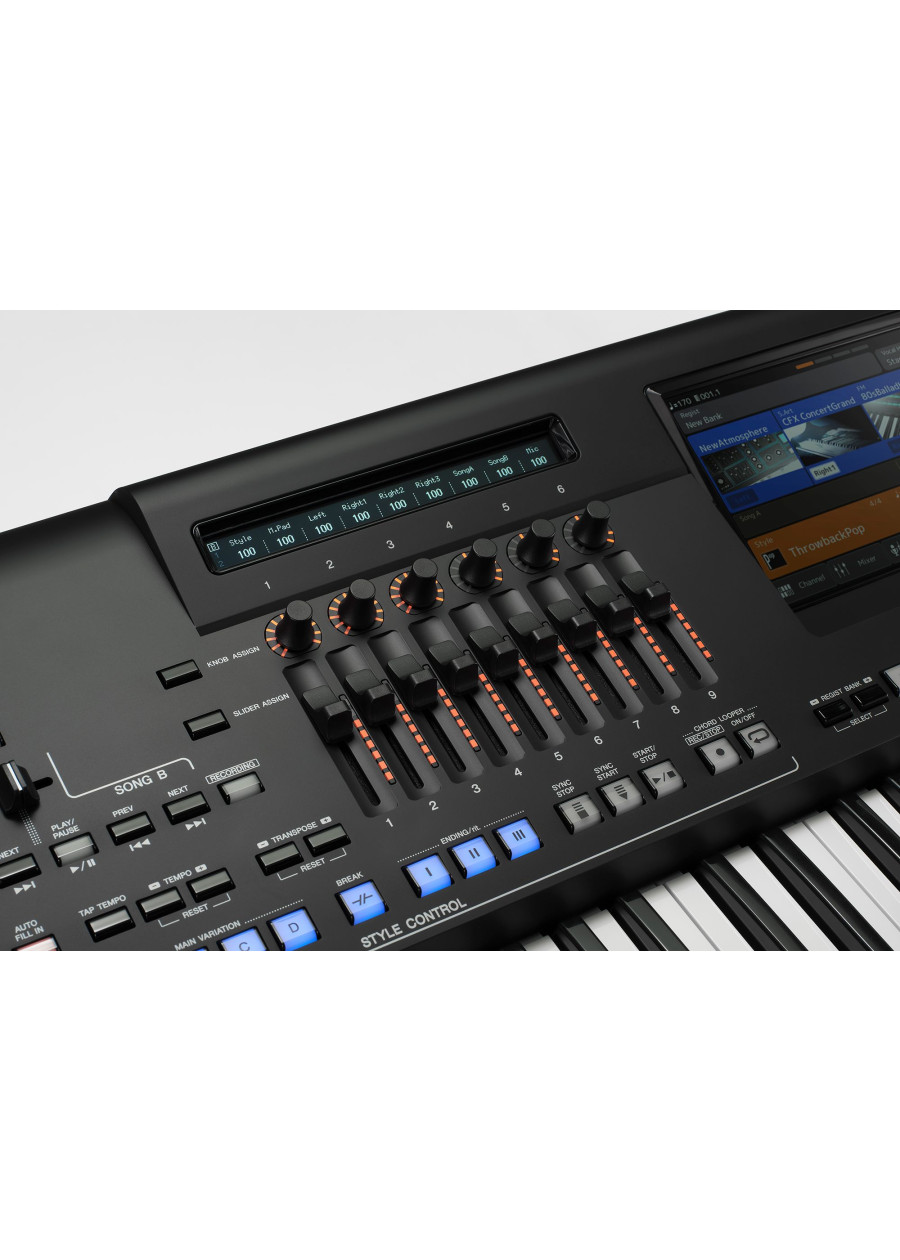

Sliders
|
9 Live Control sliders (Assignable, with LED gauge), Cross
Fader
|
|
Art. Switches
|
3
|
|
Display
|
Type
|
Main Display : TFT Color Wide VGA LCD | Sub Display: VA
(Live Control view)
|
|
Size
|
Main Display : 800 x 480 dots (9 inch) | Sub Display: 512 x
48 dots
|
|
Touch Screen
|
Main Display : Yes
|
|
Color
|
Color
|
|
Language
|
Main Display: English, German, French, Spanish, Italian |
Sub Display: English
|
|
Panel
|
Language
|
English
|
|
Voices
|
|
Tone Generation
|
Tone Generating Technology
|
FM, AWM Stereo Sampling, AEM technology
|
|
Polyphony
|
Number of Polyphony (Max.)
|
384 (128 for Preset AWM Voices + 128 for Expansion AWM
Voices + 128 for FM Voices)
|
|
Preset
|
Number of Voices
|
1,991 Voices + 75 Drum/SFX Kits
|
|
Featured Voices
|
106 S.Articulation2, 437 S.Articulation, 141 FM, 40 Sweet!,
81 Cool!, 188 Live!, 25 OrganFlutes, 123 MegaVoice, 11
Ambient Drums/SFX, 11 Revo Drums/SFX
|
|
Compatibility
|
XG
|
Yes (for Song playback)
|
|
GM
|
Yes (for Song playback)
|
|
GM2
|
Yes (for Song playback)
|
|
Expandability
|
Expansion Voice
|
Yes (approx. 3 GB)
|
|
Editing
|
Voice Set
|
|
Part
|
Right 1, Right 2, Right 3, Left
|
|
Effects
|
|
Types
|
Reverb
|
85 Preset + 30 User
|
|
Chorus
|
107 Preset + 30 User
|
|
DSP
|
363 Preset (with VCM) + 30 User
|
|
Insertion Effect
|
1-28: 363 Preset (with VCM) + 30 User
|
|
Master Compressor
|
5 Preset + 30 User
|
|
Master EQ
|
9 Preset + 30 User
|
|
Part EQ
|
28 Parts
|
|
Others
|
Mic effects: Noise Gate, Compressor, 3 Band EQ, Vocal
Effect: 23
|
|
Arpeggio
|
Yes
|
|
Vocal Harmony
|
Number of Presets
|
Vocal Harmony: 54, Synth Vocoder: 20
|
|
Number of User Settings
|
60 *The number is the total of Vocal Harmony and Synth
Vocoder
|
|
Accompaniment Styles
|
|
Preset
|
Number of Preset Styles
|
800
|
|
Featured Styles
|
720 Pro, 69 Session, 11 Free Play
|
|
Fingering
|
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI
Fingered, Full Keyboard, AI Full Keyboard
|
|
Style Control
|
INTRO × 3, MAIN VARIATION × 4, FILL × 4, BREAK, ENDING × 3
|
|
Other Features
|
One Touch Setting (OTS)
|
4 for each Style
|
|
Chord Looper
|
Yes
|
|
Style Section Reset
|
Yes
|
|
Expandability
|
Expansion Style
|
Yes (Internal Memory)
|
|
Expansion Audio Style
|
Yes (Internal Memory)
|
|
Compatibility
|
Style File Format (SFF), Style File Format GE (SFF GE)
|
|
Songs
|
|
Preset
|
Number of Preset Songs
|
9 Demo Songs, 1 Preset Song
|
|
Recording
|
Number of Songs
|
Unlimited (depends on the drive capacity)
|
|
Number of Tracks
|
16
|
|
Data Capacity
|
Approx. 3 MB/Song
|
|
Recording Function
|
Quick Recording, Multi Recording, Step Recording
|
|
Compatible Data Format
|
Playback
|
SMF (Format 0 & 1), XF
|
|
Recording
|
SMF (Format 0)
|
|
Multi Pads
|
|
Preset
|
Number of Multi Pad Banks
|
507 Banks x 4 Pads
|
|
Audio
|
Audio Link
|
Yes
|
|
Functions
|
|
Registration
|
Number of Buttons
|
10
|
|
Control
|
Registration Sequence, Freeze
|
|
Playlist
|
Number of Records
|
2500 (max.) Records per Playlist file
|
|
Lesson/Guide
|
Lesson/Guide
|
Follow Lights, Any Key, Karao-Key, Your Tempo
|
|
Search
|
Yes
|
|
Demo/Help
|
Demonstration
|
Yes
|
|
Overall Controls
|
Metronome
|
Yes
|
|
Tempo Range
|
5 - 500, Tap Tempo
|
|
Transpose
|
-12 – 0 – +12
|
|
Tuning
|
414.8 – 440 – 466.8 Hz (approx. 0.2 Hz increments)
|
|
Octave Button
|
Yes
|
|
Scale Type
|
9 types
|
|
Sub Scale Setting
|
Yes
|
|
USB Audio Interface
|
Yes
|
|
Bluetooth
|
Yes (Audio) * May not have this functionality depending on
the country
|
|
Miscellaneous
|
Direct Access
|
Yes
|
|
Text Display Function
|
Yes
|
|
Wallpaper Customization
|
Yes
|
|
Display Out
|
HDMI (1,280 × 720p max.)
|
|
Voices
|
Harmony/Echo
|
Yes (with Arpeggio)
|
|
Panel Sustain
|
Yes
|
|
Mono/Poly
|
Yes
|
|
Voice Information
|
Yes
|
|
Styles
|
Style Creator
|
Yes
|
|
OTS Information
|
Yes
|
|
Songs
|
Score Display Function
|
Yes
|
|
Lyrics Display Function
|
Yes
|
|
Song Creator
|
Yes
|
|
Multi Pads
|
Multi Pad Creator
|
Yes
|
|
Audio Recorder/Player
|
Recording Time (max.)
|
approx. 0.8 GB (80 minutes) per Song
|
|
Recording
|
WAV (44.1 kHz, 16 bit, stereo)
|
|
Playback
|
WAV (44.1 kHz, 16 bit, stereo), MP3 (44.1/48.0 kHz,
64/96/128/256/320 kbps or VBR, mono/stereo)
|
|
Lyrics Display Function
|
Yes
|
|
Time Stretch
|
Yes
|
|
Pitch Shift
|
Yes
|
|
Vocal Cancel
|
Yes
|
|
Storage and Connectivity
|
|
Storage
|
Internal Memory
|
Yes (approx. 15 GB)
|
|
External Drives
|
USB flash drive
|
|

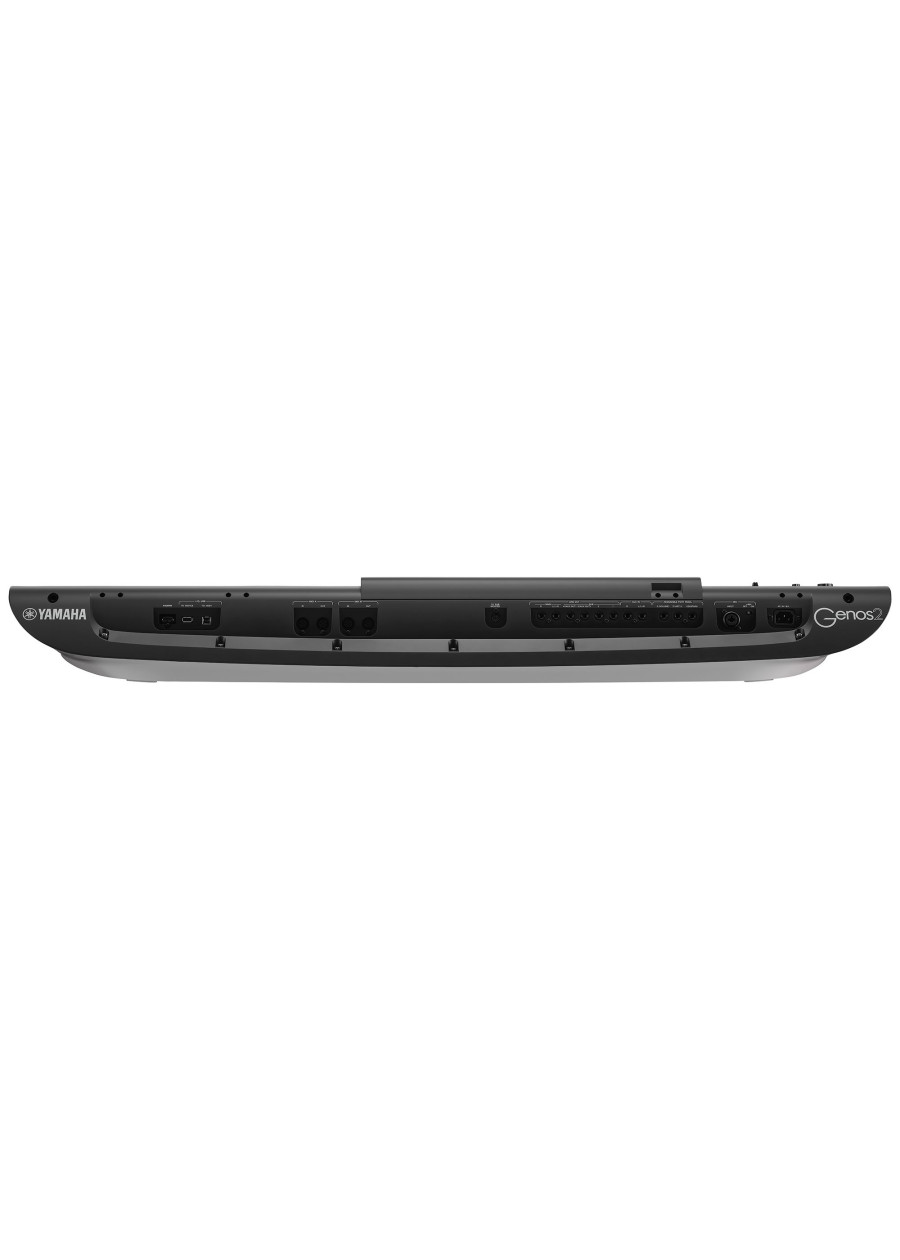

Connectivity
|
Headphones
|
Standard stereo phone jack (PHONES)
|
|
FOOT PEDAL
|
1 (SUSTAIN), 2 (ART.1), 3 (VOLUME), Function assignable
|
|
Microphone
|
Yes (Combo Jack), Phantom Power (+48 V) available
|
|
MIDI
|
MIDI A (IN/OUT), MIDI B (IN/OUT)
|
|
AUX IN
|
L/L+R, R Standard phone jack
|
|
LINE OUT
|
MAIN (L/L+R, R), SUB (1,2), SUB (3,4/AUX OUT) Standard
phone jack
|
|
USB TO DEVICE
|
Yes (x 3)
|
|
USB TO HOST
|
Yes
|
|
Wireless LAN
|
Yes (*) Standards: IEEE802.11b/g/n (IEEE802.11n 5 GHz: not
compatible), Range of transmit frequency (channels): Models
for Europe and Brazil: 2401–2483 MHz (channels 1–13)
Others: 2401–2473 MHz (channels 1–11), Maximum RF output
power: 14 dBm, Security: WEP, WPA-PSK (TKIP), WPA-PSK
(AES), WPA2-PSK (AES), WPA/WPA2 mixed PSK, SAR value: 0.258
W/kg * May not be included, depending on your area. Check
with your Yamaha dealer.
|
|
Amplifiers and Speakers
|
|
Amplifiers
|
-
|
|
Speakers
|
-
|
|
Power Supply
|
|
Power Supply
|
AC power cord
|
|
Power Consumption
|
37 W
|
|
Auto Power Off Function
|
Yes
|
|
Accessories
|
|
Included Accessories
|
Owner’s Manual, AC power cord, Music Rest, two Music Rest
brackets
|
