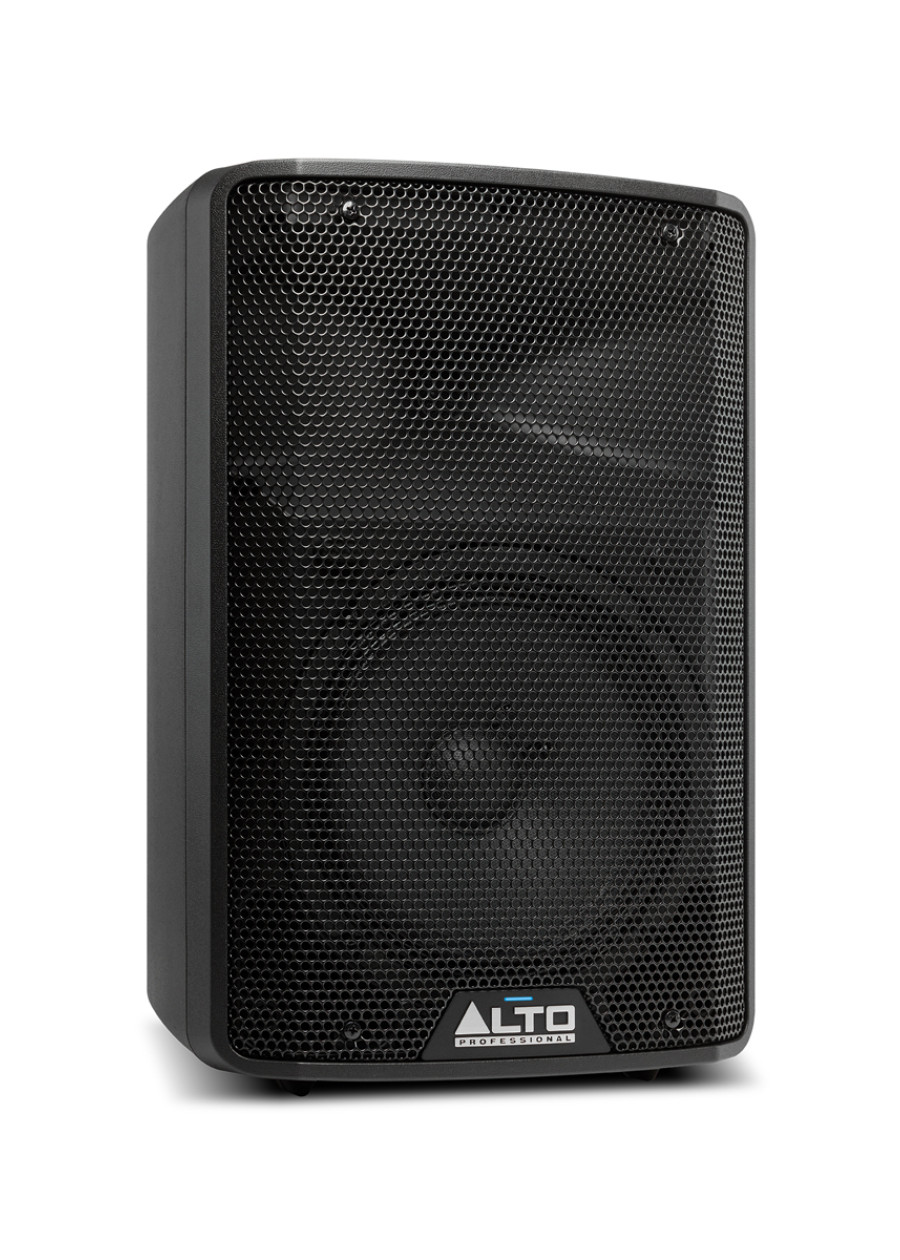

System Type: 2-way active ported loudspeaker
Drivers:
- Low-Frequency: 8.0” (203 mm) driver, 1.4” (35.5 mm) voice coil
- High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil
Amplifier: 350 watts (peak), 175 watts
(continuous), Class D power
Horn Coverage: 90º horizontal x 60º vertical
(nominal)
Frequency Response: 75 Hz – 20 kHz (-3 dB)
Crossover Frequency: 2.5 kHz
Max SPL: 114 dB @ 1 m
Connectors:
- (1) XLR balanced input (Line/Mic)
- (1) XLR output (Link)
- (1) IEC power cable input
Controls: Power switch, volume control knob
Indicators: (2) power LEDs (1 front panel, 1
rear panel), clip limiter LED
Power:
- Connection: IEC
- Voltage: 100–240 V~; 50/60 Hz
- Fuse: T2AL/250V
- Consumption: 150 W
Protection: Thermal, overload analog
limiter/compressor
Enclosure: Injection-molded polypropylene,
multi-angle for main or monitor applications, metal grille,
rubber feet, 1 handle on top
Mounting/Installation: Standard 36 mm pole
socket, wedge monitor
Dimensions (height x width x depth):
- 16.6” x 10.7” x 9.9”
- 422 x 272 x 251 mm
Weight:
- 12.3 lb
- 5.6 kg
Additional Information
| Manufacturer | ALTO |
|---|---|
| Model | TX308 |
