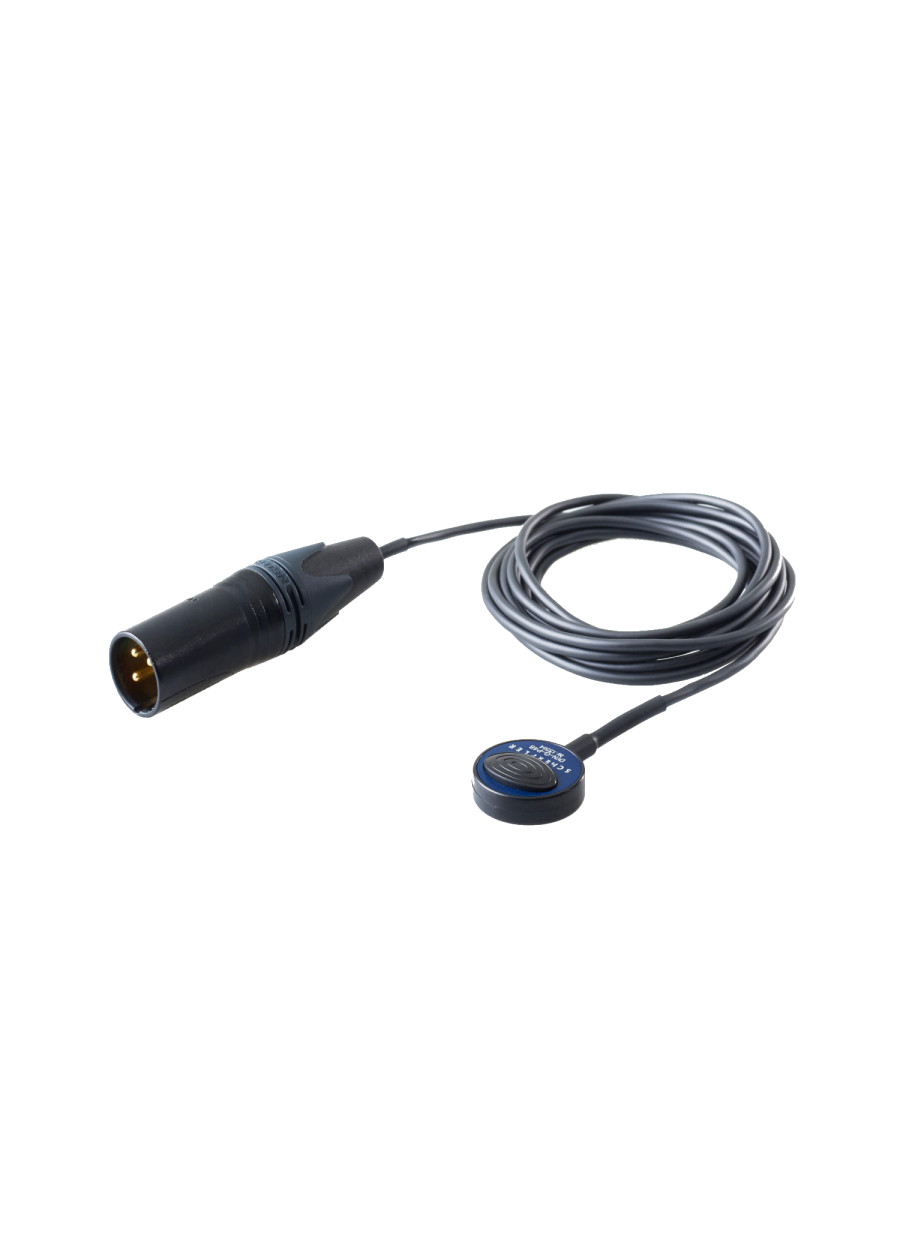

SCHERTLER Contact Microphone for Magnetico Pickup DYNGP48

The DYN G P48 is a fully-balanced, active, dynamic contact microphone for acoustic and classical guitar. Includes padded bag and special adhesive putty.

SCHERTLER DYN P48 series contact microphones are high-end transducers designed for professional applications. Suitable for use on a variety of instruments in both live/amplified and studio environments, these fully-balanced, active, dynamic contact microphones can be safely applied to even the most valuable of instruments using the special adhesive putty provided. The microphones can be quickly transferred between instruments during performances or recording sessions. Once in place, their lightweight design makes them unobtrusive to the performer.

A balanced XLR connector enables direct connection to a microphone input on a mixing console, or a full range amplification system. (Note: these contact microphones require 22-48V phantom power, with the exception of the passive DYN UNI.) The torsion-resistant, Kevlar-reinforced cable is designed to withstand the rigors of daily use while delivering best possible performance results.

SCHERTLER DYN P48 series microphones all feature built-in Class-A preamps and advanced filtering technology that enables each microphone to capture the best tonal qualities of the intended instrument.

€482.00

Availability: In stock

Manufacturer: SCHERTLER

Model: DYNGP48

SKU: INV09239

In stock

TECHNICAL SPECS

  • Transducer type: Electro-dynamic moving coil active contact microphone
  • Mechanical decoupling: Butterworth 2nd order, Q = 0.6
  • Frequency Response (@ ±3dB) - filtered*: 20 to 16 kHz
  • Sensitivity: ca. -30 dBu
  • Dynamic range: 139 dB
  • Output impedance (@ 1 kHz): 280 Ω
  • Operating voltage: 22 - 48 VDC
  • Built in preamp: Yes all Class-A
  • External preamp: No
  • Contacts: All hard gold plated 0.5 mm
  • For fixed installations: No
  • Removable: Yes
  • Connection: XLR balanced
  • Cable Length: 2.2 m
  • Note * Output frequency response is filtered electronically to better match the specific application.

Additional Information

Manufacturer SCHERTLER
Model DYNGP48
