SPECIFICATIONS

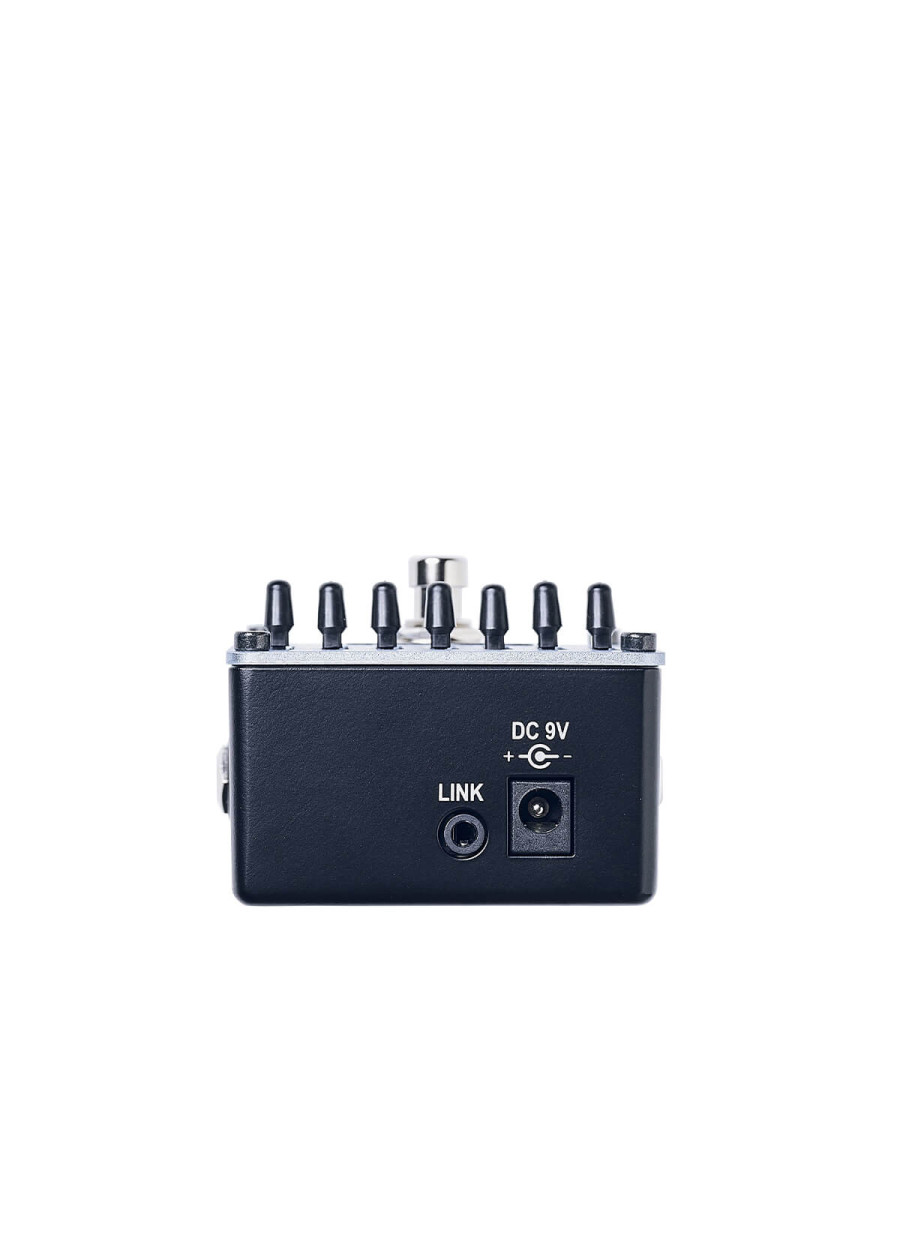

- INPUTS/OUTPUTS: INPUT terminal (monaural phone jack), OUTPUT
terminal (monaural phone jack), DC.9V terminal
- FREQUENCY ADJUSTMENTS: 100Hz to 5.6kHz: ±10dB adjustment for
each
- LEVEL: ±12dB adjustment of the output volume.
- POWER SUPPLY*: 9V alkaline batteries (6LF22/6LR62) or DC.9V
AC adapter (both sold separately)
*: The use of an AC adaptor is recommended as the unit’s power
consumption is relatively high. Should you prefer to use
batteries, please use the alkaline type.
- DIMENSIONS (W X D X H): 72mm x 120mm x 55mm (plug retracted/
VE-TS H:54mm)
- WEIGHT: 300 g (excluding batteries)
- ACCESSORIES: AC adapter KA181(9V) (sold separately)
