GENERAL
Model: SV20C
Range: Studio
ELECTRONICS
Output wattage: 20W (with power reduction option to 5W)
Outputs: 2 x 1/4" jack speaker, selectable 16Ω / 8Ω / 4Ω
load
Inputs: 4 (2 x high, 2 x low) "Lead and Bass"

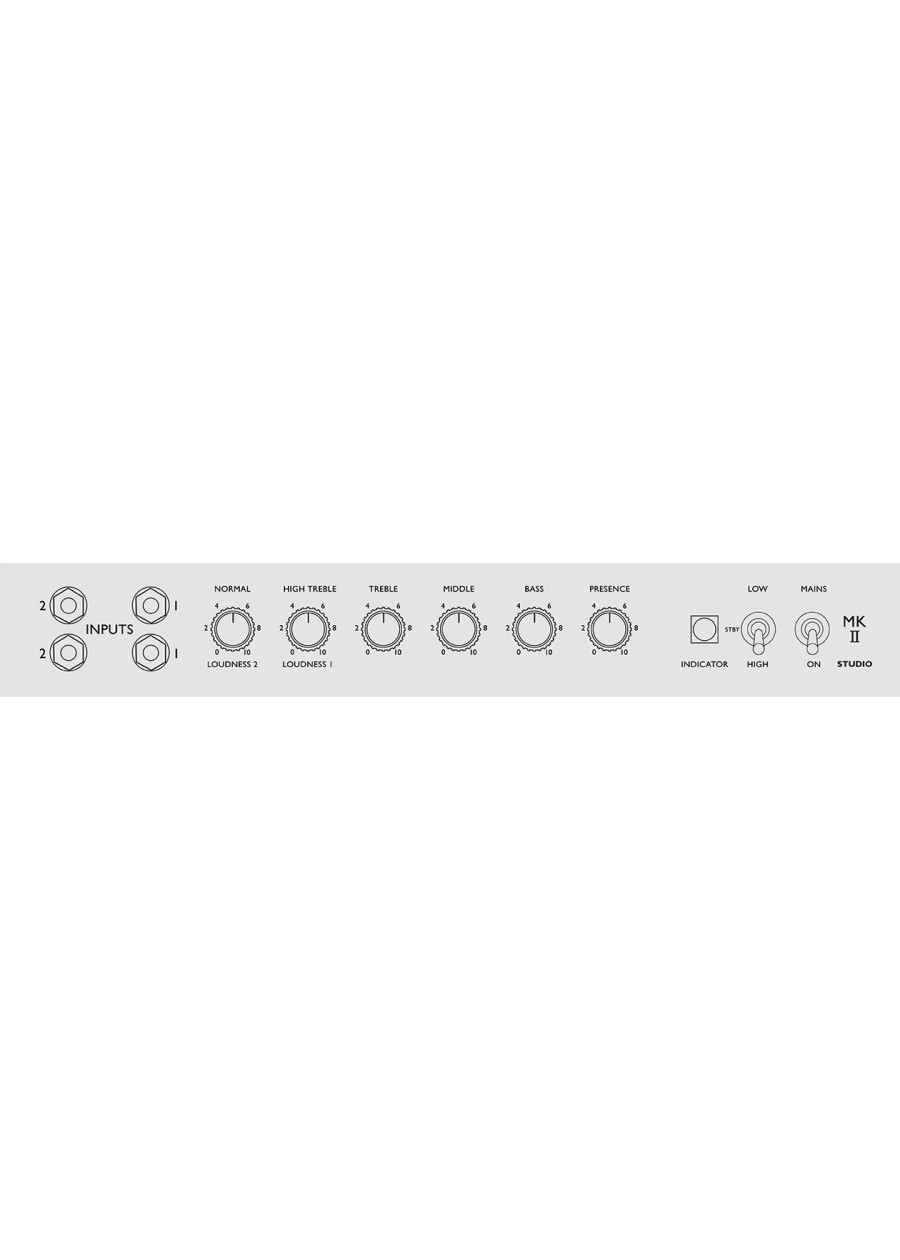

Controls: Low/High power mode selection switch, presence,
bass, middle, treble, high treble/loudness I, normal/loudness
II
Effects: None
Effects loop: Yes, series, send/return
SPEAKERS
Speaker configuration: 1x10"
Speaker model: Celestion VT-Junior (16Ω, 50W)
Unit impedance: 16Ω
VALVES
Preamp valves: 2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves: 2 x EL34
ACCESSORIES
Cable: Detachable power cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 15.9kg
Width: 500mm
Height: 460mm
Depth: 245mm
Additional Information
| Manufacturer | MARSHALL |
|---|---|
| Model | SV20C |
