Since its inception, the DXR Series has long signified a
confluence of raw power and technological innovation that
reliably harnesses and delivers impressively high output with
superior quality and clarity. The DXR mkII Series powered
loudspeakers are the newly upgraded models of the series that add
even more SPL and feature a larger, yet much lighter 1.75”
Neodymium HF compression driver for extremely clear voice
reproduction and musicality. Once again our team worked in tight
collaboration with touring loudspeaker specialists NEXO, adding
crucial insight and expertise that led to design improvements
based on the ever-evolving demands of sound reinforcement
professionals.
Whether for fixed applications or mobile live performances -
whatever direction you want to take your sound - the DXR mkII
Series is up to the task, combining raw power with our own
proprietary advanced DSP functions for all the reliability and
outstanding clarity you’ve come to expect from the DXR Series…
only MORE.
|
|

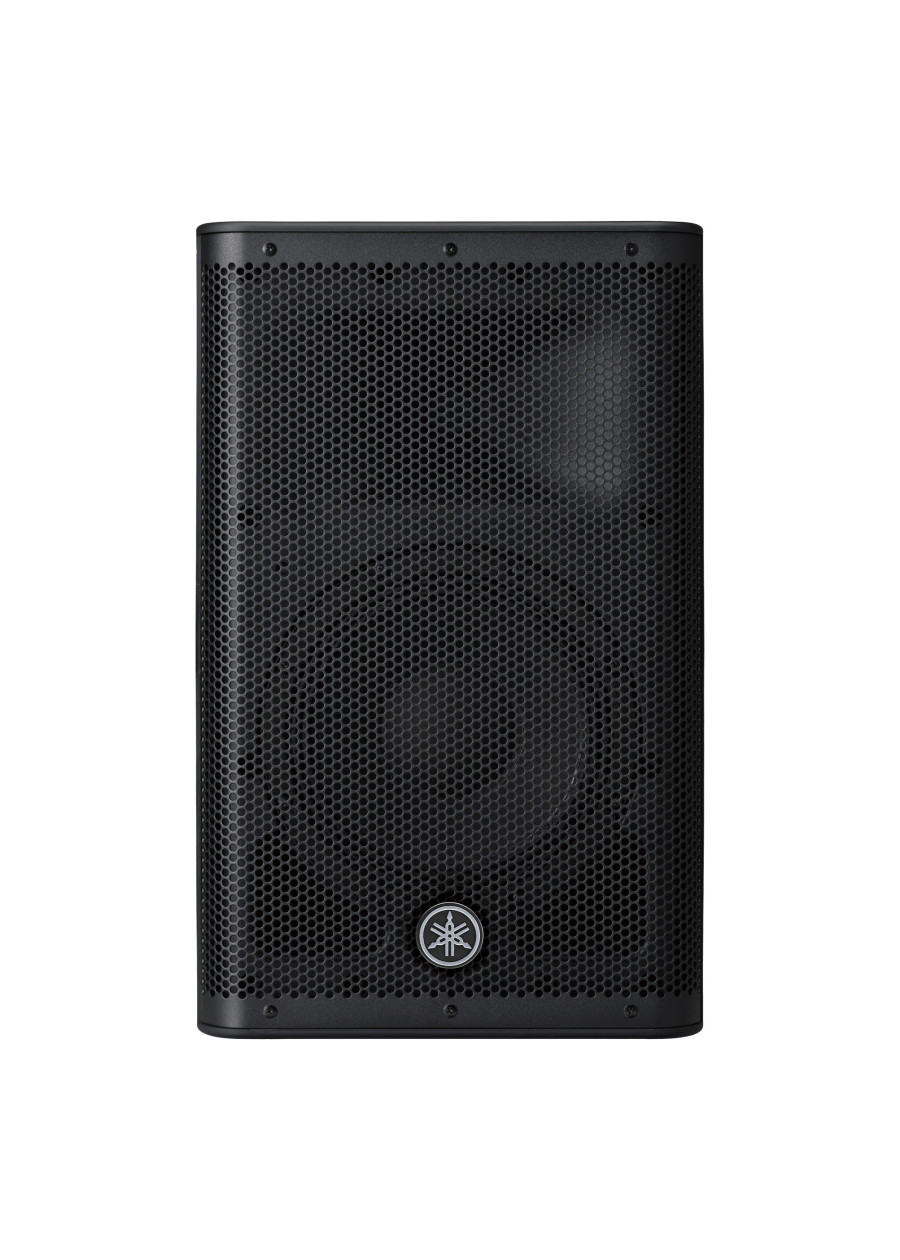

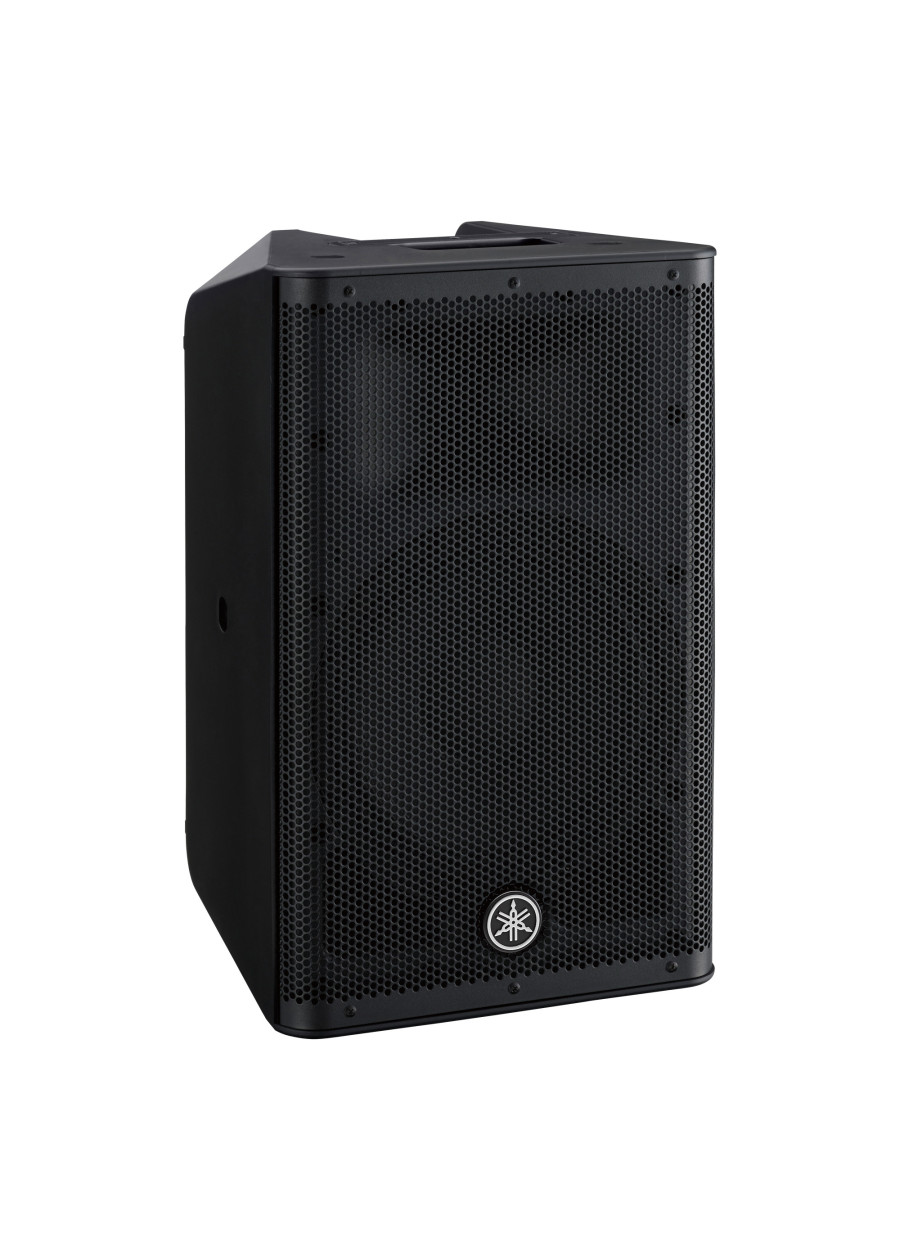

DXR10mkII
|
|
General specifications
|
|
Speaker type
|
10" 2-way, Bi-amp powered speaker, Bass-reflex type
|
|
Frequency range (-10dB)
|
56Hz - 20kHz
|
|
Nominal coverage
|
H
|
90°
|
|
V
|
60°
|
|
Components
|
LF
|
Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
|
|
HF
|
Diaphragm:1.75", Type: 1" throat compression driver,
Magnet:Neodymium
|
|
Crossover
|
FIR-X tuning™ (linear phase FIR filter)
|
|
Output power
|
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF:
600W HF: 100W)
|
|
Maximum output level (1m; on axis)
|
132dB SPL
|
|

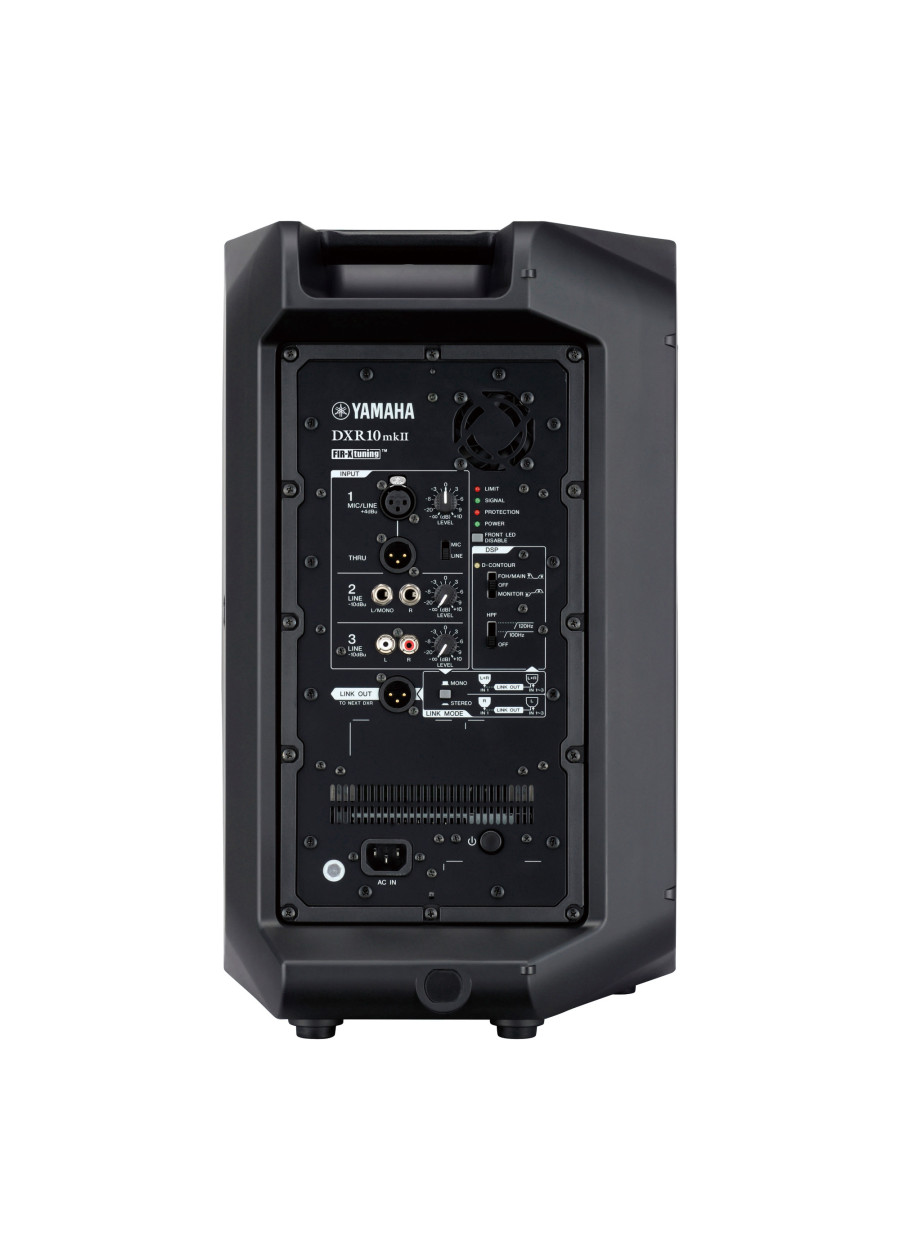

I/O connectors
|
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2,
THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x
1
|
|
Processors
|
D-CONTOUR: FOH/MAIN, MONITOR, OFF
|
|
Power requirements
|
100V - 240V, 50Hz/60Hz
|
|
Power consumption
|
90W
|
|
Flying and mounting hardware
|
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
|
|
Pole socket
|
35mm with 2-way features (0 or 7 degrees)
|
|
Dimensions
|
W
|
305mm (12")
|
|
H
|
502mm (19 6/8")
|
|
D
|
310mm (12 2/8")
|
|
Net weight
|
13.9kg (30.6lbs)
|
|
Accessories
|
UB-DXR10 (U-bracket)
|
|
Others
|
Material: ABS (Matte Finish, Black)
|
