General specifications
|
|
Speaker type
|
2-way, Bi-amped Powered Speaker, Bass-reflex
|
2-way, Bi-amped Powered Speaker, Bass-reflex
|
|
Frequency range (-10dB)
|
39Hz - 20kHz
|
44Hz - 20kHz
|
|
Coverage area
|
H90ﾟ x V60ﾟ (Rotatable)
|
H90ﾟ x V60ﾟ (Rotatable)
|
|

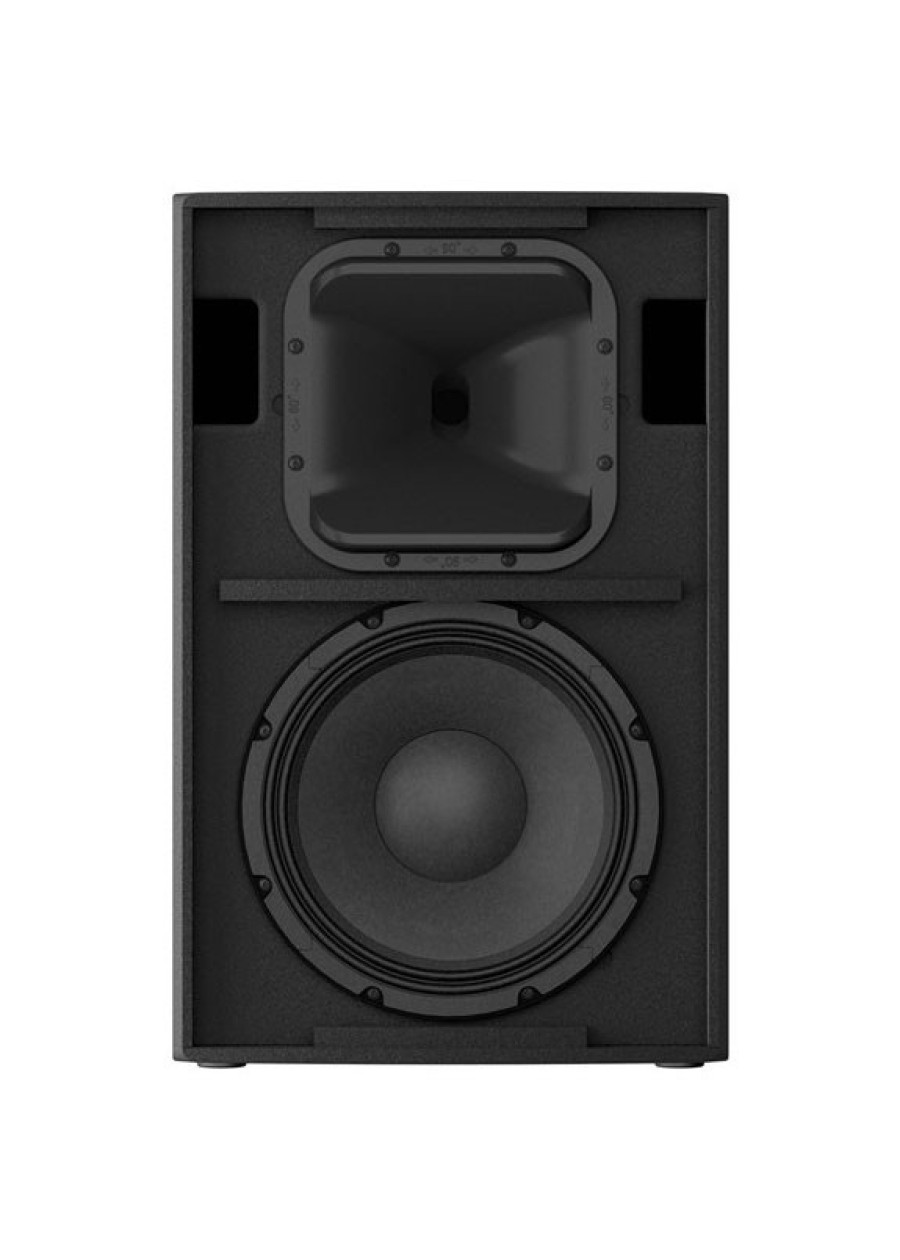

Components
|
LF
|
12" Cone, 3" Voice Coil, Neodymium magnet
|
10" Cone, 3" Voice Coil, Neodymium magnet
|
|
MF
|
-
|
-
|
|
HF
|
2" Voice Coil, 1" Throat Compression Driver, Titanium
diaphragm, Neodymium magnet
|
2" Voice Coil, 1" Throat Compression Driver, Titanium
diaphragm, Neodymium magnet
|
|
Crossover
|
1.8kHz (FIR-X)
|
1.8kHz (FIR-X)
|
|
Sampling frequency rate
|
Internal
|
96kHz and FIR Filter
|
96kHz and FIR Filter
|
|
A/D D/A Converters
|
96kHz AD/DA
|
96kHz AD/DA
|
|
Maximum output level (1m; on axis)
|
139dB SPL *1
|
137dB SPL *1
|
|
Power rating
|
Dynamic
|
2000W (LF: 1000W, MF/HF: 1000W) *2
|
2000W (LF: 1000W, MF/HF: 1000W) *2
|
|
Burst (20ms)
|
1100W (LF: 1000W, MF/HF: 100W)
|
1100W (LF: 1000W, MF/HF: 100W)
|
|
Continuous
|
950W (LF: 850W, MF/HF: 100W)
|
950W (LF: 850W, MF/HF: 100W)
|
|

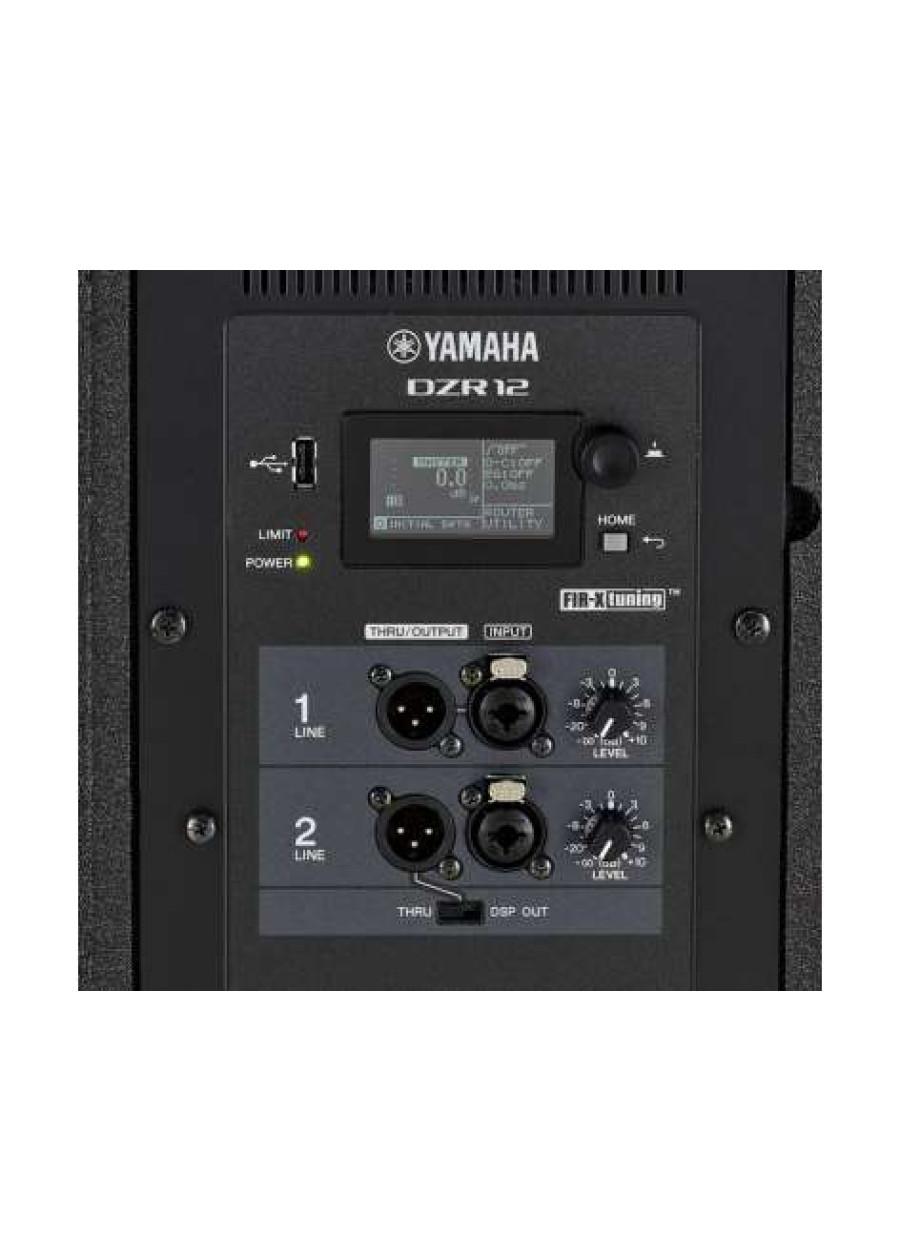

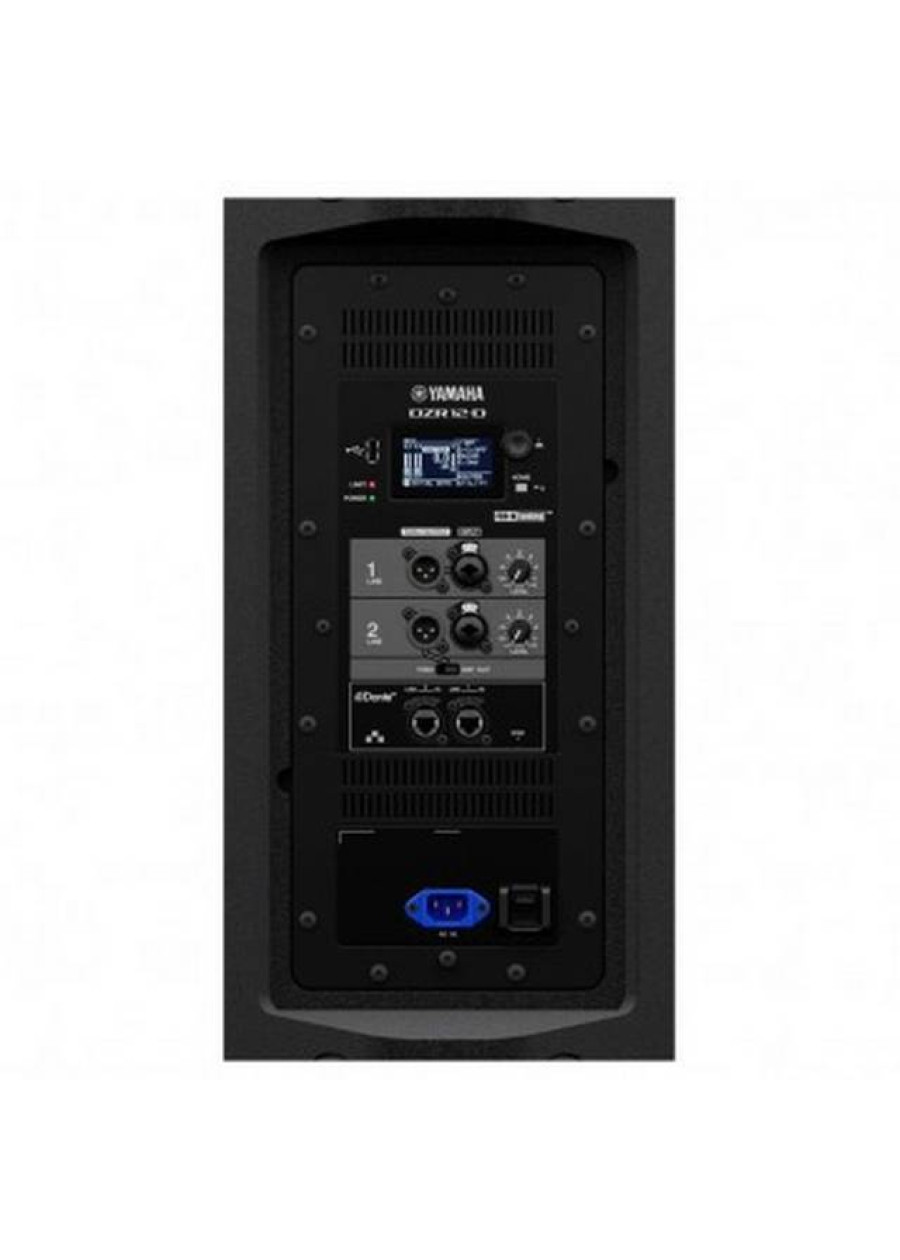

I/O Connectors
|
Analog I/O
|
Analog IN: Combo x2, Line level (Maximum +24dBu), Input
impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix),
CH2: THRU or DSP OUT
|
Analog IN: Combo x2, Line level (Maximum +24dBu), Input
impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix),
CH2: THRU or DSP OUT
|
|
Others
|
USB2.0 Host 5V 500mA for USB memory DATA storage/load
|
USB2.0 Host 5V 500mA for USB memory DATA storage/load
|
|
AC
|
IEC AC inlet x1 (V-Lock)
|
IEC AC inlet x1 (V-Lock)
|
|
Amplifier class
|
Class-D
|
Class-D
|
|
Cooling
|
Fan cooling, Variable speeds
|
Fan cooling, Variable speeds
|
|
Power consumption
|
45W (Idle), 150W (1/8)
|
45W (Idle), 150W (1/8)
|
|
Handle
|
Aluminium die-cast, Side x2
|
Aluminium die-cast, Top x1, Side x1
|
|
Rigging
|
M10 x12
|
M10 x8, M8 x2
|
|
Dimensions
|
W
|
410 mm (16.1")
|
315 mm (12.4")
|
|
H
|
646 mm (25.4") (with rubber feet)
|
537 mm (21.1") (with rubber feet)
|
|
D
|
394 mm (15.5")
|
345 mm (13.6")
|
|
Net weight
|
21.4kg (47.2lbs)
|
17.9kg (39.5lbs)
|
|
Options
|
U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
|
U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
|
|
Others
|
Enclosure Material, Finish, Color: Plywood, Durable
Polyurea Painting, Black
|
Enclosure Material, Finish, Color: Plywood, Durable
Polyurea Painting, Black
|
|

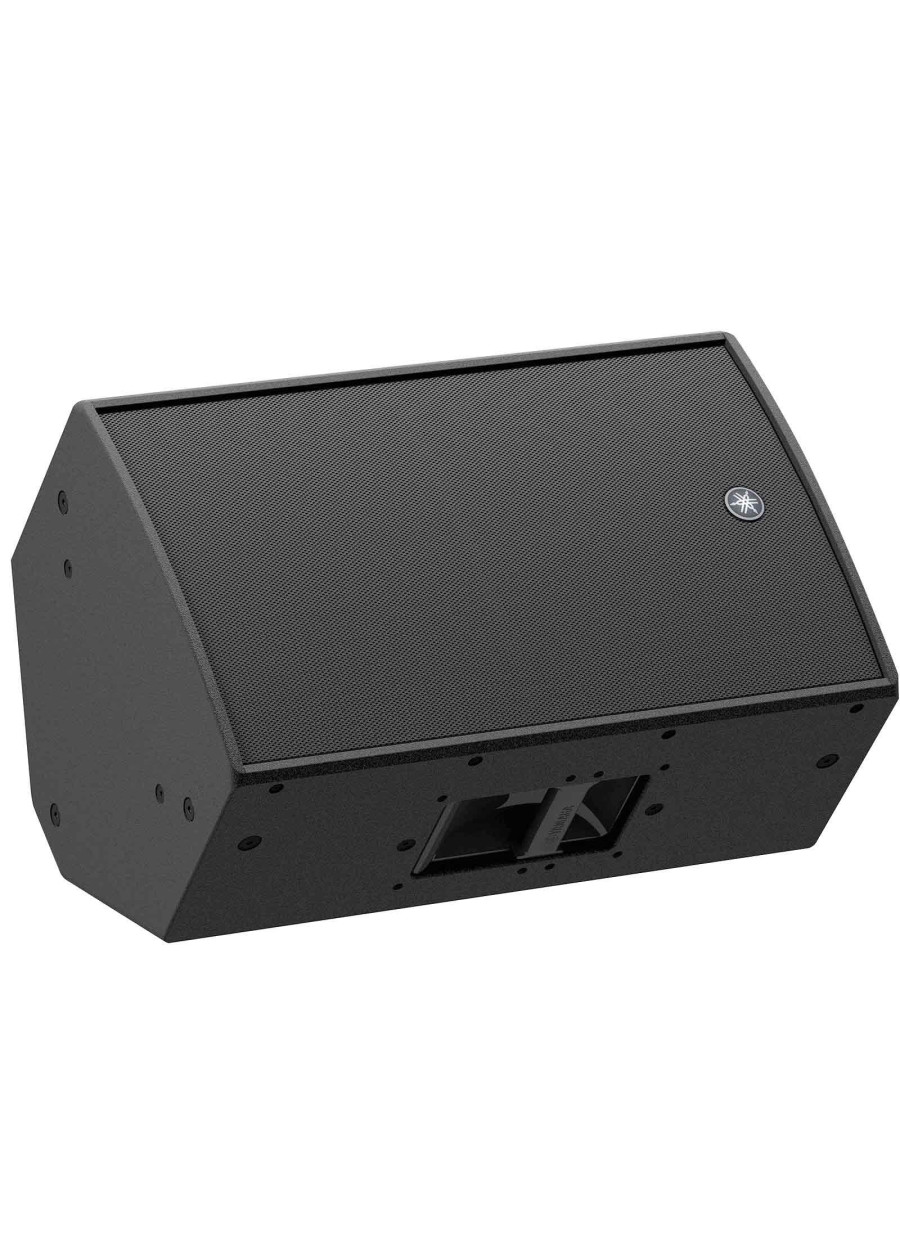

Floor Monitor Angle
|
50° Symmetrical
|
50°
|
|
Pole socket
|
Φ35 mm x2 (0° or -7°)
|
Φ35 mm x2 (0° or -7°)
|
