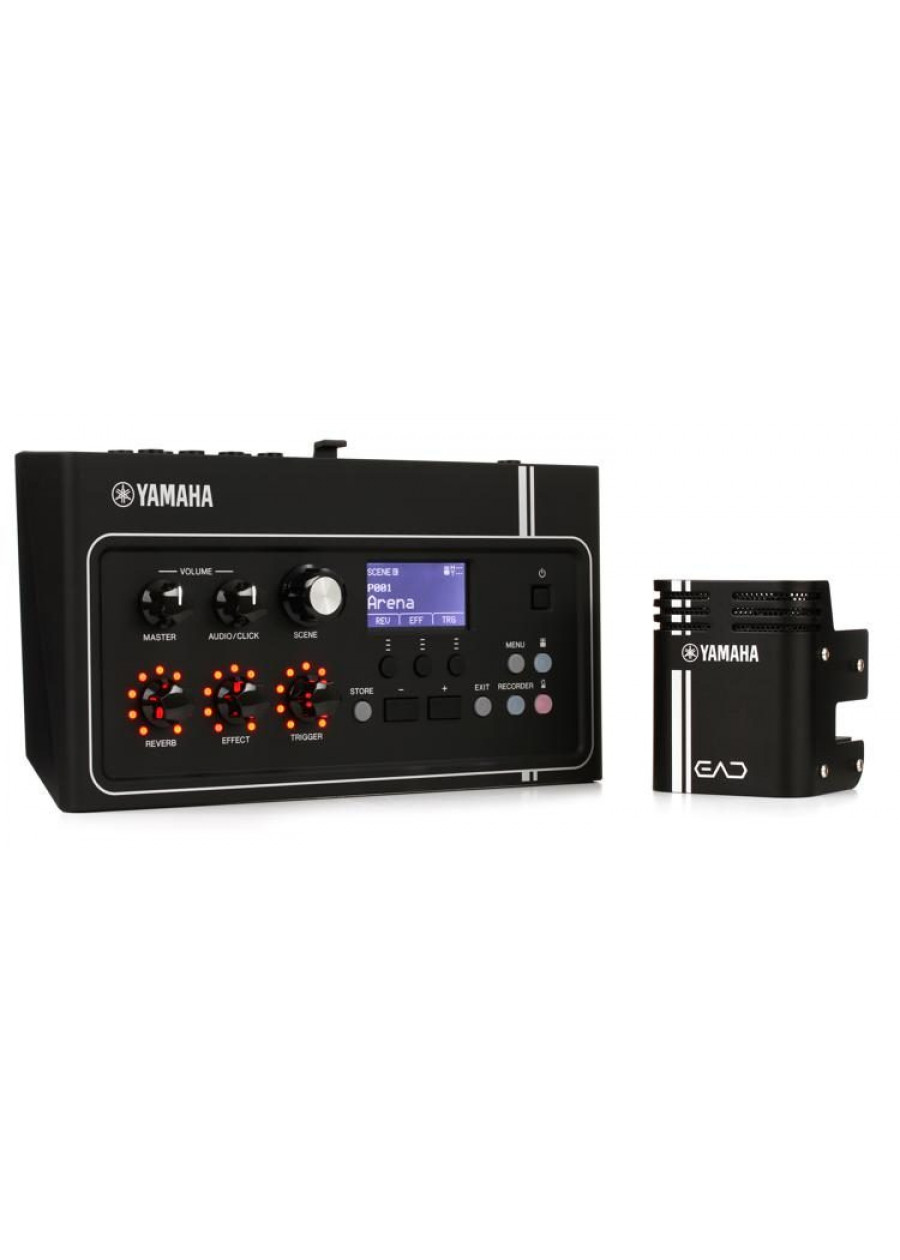

- Drum Module with Mic and Trigger
- Polyphony: 64
- Sounds: 757 voices - Bass Drum, Snare, Cymbal, Tambourine, Cowbell, Other percussion
- Effects: 11 x Reverbs, Distortion, Delay, Wah, Compressor, Flanger
- Module Trigger Inputs: 2 x 1/4" (sensor/kick), 1 x 1/4" (snare), 2 x 1/4" (trigger 5,6)
- Analog Inputs: 1 x 1/8" (aux in)
- Analog Outputs: 2 x 1/4" (main out), 1 x 1/4" (headphones)
- USB : 1 x Type B, 1 x Type A
- Other I/O: 1 x 1/4" (footswitch)
- Storage: 1 minute 30 sec (internal recording), 30 minute (flash drive)
- File Format: WAV (16-bit/44.1kHz)
- Power: 12V DC power supply
- Height: 2.48"
- Depth: 5.43"
- Width: 10.23"
- Weight: 1.44 lbs.
Additional Information
| Manufacturer | YAMAHA |
|---|---|
| Model | EAD10 |
