Color/Finish
|
|
Body
|
Color
|
Black
|
|
Size/Weight
|
|
Dimensions
|
Width
|
1002 mm
|
|
Height
|
148 mm
|
|
Depth
|
437 mm
|
|
Weight
|
Weight
|
11.1 kg
|
|
Control Interface
|
|
Keyboard
|
Number of Keys
|
61
|
|
Type
|
Organ, Initial Touch
|
|
Touch Response
|
Hard1, Hard2, Medium, Soft1, Soft2
|
|
Other Controllers
|
Pitch Bend
|
Yes
|
|
Modulation
|
Yes
|
|
Control Knobs
|
2 (assignable)
|
|
Display
|
Type
|
TFT Color Wide VGA LCD
|
|
Size
|
7 inch
|
|
Color
|
Color
|
|
Language
|
English, German, French, Spanish, Italian
|
|
Panel
|
Language
|
English
|
|
Voices
|
|
Tone Generation
|
Tone Generating Technology
|
AWM Stereo Sampling
|
|
Polyphony
|
Number of Polyphony (Max.)
|
128
|
|
Preset
|
Number of Voices
|
930 Voices + 50 Drum/SFX Kits + 480 XG Voices
|
|
Featured Voices
|
76 S.Art!, 23 Mega Voices, 28 Sweet! Voices, 64 Cool!
Voices, 81 Live! Voices, 20 Organ Flutes!
|
|
Compatibility
|
XG
|
Yes
|
|
GS
|
Yes (for Song playback)
|
|
GM
|
Yes
|
|
GM2
|
Yes
|
|
Expandability
|
Expansion Voice
|
Yes (approx. 280 MB max.)
|
|
Editing
|
Voice Set
|
|
Part
|
Right 1, Right 2, Left
|
|
Effects
|
|
Types
|
Reverb
|
52 Presets + 3 User
|
|
Chorus
|
106 Presets + 3 User
|
|
DSP
|
295 Presets + 10 User
|
|
Master Compressor
|
5 Presets + 5 User
|
|
Master EQ
|
5 Presets + 2 User
|
|
Part EQ
|
27 parts
|
|
Others
|
Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band
EQ x 1
|
|
Arpeggio
|
Yes
|
|
Accompaniment Styles
|
|
Preset
|
Number of Preset Styles
|
433
|
|
Featured Styles
|
387 Pro Styles, 30 Session Styles, 15 DJ Styles, 1 Free
Play
|
|
Fingering
|
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI
Fingered, Full Keyboard, AI Full Keyboard
|
|
Style Control
|
INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
|
|
Other Features
|
Music Finder
|
1,200 Records
|
|
One Touch Setting (OTS)
|
4 for each Style
|
|
Expandability
|
Expansion Style
|
Yes
|
|
Compatibility
|
Style File Format, Style File Format GE
|
|
Songs
|
|
Preset
|
Number of Preset Songs
|
5 Sample Songs
|
|
Recording
|
Number of Songs
|
Unlimited (depends on the drive capacity)
|
|
Number of Tracks
|
16
|
|
Data Capacity
|
approx. 300 KB/Song
|
|
Recording Function
|
Quick Recording, Multi Recording, Step Recording
|
|
Compatible Data Format
|
Playback
|
SMF (Format 0 & 1), XF
|
|
Recording
|
SMF (Format 0)
|
|
Multi Pads
|
|
Preset
|
Number of Multi Pad Banks
|
188 banks x 4 Pads
|
|
Audio
|
Audio Link
|
Yes
|
|
Functions
|
|
Registration
|
Number of Buttons
|
8
|
|
Control
|
Registration Sequence, Freeze
|
|
Lesson/Guide
|
Lesson/Guide
|
Follow Lights, Any Key, Karao-Key, Your Tempo
|
|
Performance Assistant Technology (PAT)
|
Yes
|
|
Demo/Help
|
Demonstration
|
Yes
|
|
Overall Controls
|
Metronome
|
Yes
|
|
Tempo Range
|
5 - 500, Tap Tempo
|
|
Transpose
|
-12 – 0 – +12
|
|
Tuning
|
414.8 – 440 – 466.8 Hz
|
|
Octave Button
|
Yes
|
|
Scale Type
|
9 types
|
|
Miscellaneous
|
Direct Access
|
Yes
|
|
Text Display Function
|
Yes
|
|
Wallpaper Customization
|
Yes
|
|
Voices
|
Harmony/Echo
|
Yes (with Arpeggio)
|
|
Panel Sustain
|
Yes
|
|
Mono/Poly
|
Yes
|
|
Voice Information
|
Yes
|
|
Styles
|
Style Creator
|
Yes
|
|
Style Recommender
|
Yes
|
|
OTS Information
|
Yes
|
|
Songs
|
Song Creator
|
Yes
|
|
Score Display Function
|
Yes
|
|
Lyrics Display Function
|
Yes
|
|
Multi Pads
|
Multi Pad Creator
|
Yes
|
|
Audio Recorder/Player
|
Recording Time (max.)
|
80 minutes/Song
|
|
Recording
|
.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution,
stereo)
|
|
Playback
|
.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution,
stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample
rate, 64-320 kbps and variable bit rate, mono/streo)
|
|
Time Stretch
|
Yes
|
|
Lyrics Display Function
|
Yes (.mp3 only)
|
|
Pitch Shift
|
Yes
|
|
Vocal Cancel
|
Yes
|
|
Storage and Connectivity
|
|
Storage
|
Internal Memory
|
approx. 13 MB
|
|
External Drives
|
USB Flash Memory (via USB to DEVICE)
|
|
Connectivity
|
Headphones
|
Yes
|
|
FOOT PEDAL
|
1 (SUSTAIN), 2 (ARTICULATION), Function Assignable
|
|

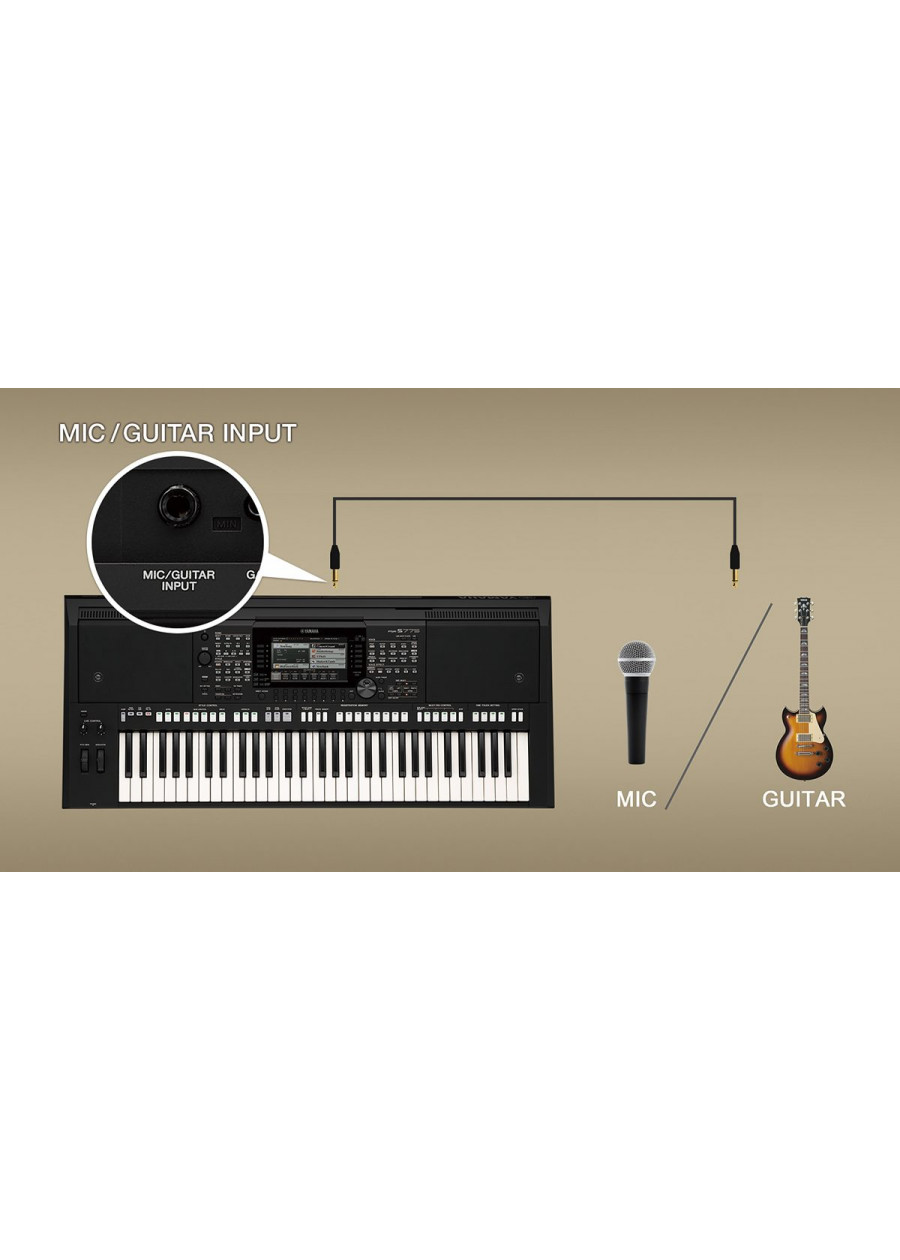

Microphone
|
Microphone/Guitar x 1
|
|
MIDI
|
IN, OUT
|
|
AUX IN
|
Stereo mini jack
|
|
LINE OUT
|
L/L+R, R
|
|
USB TO DEVICE
|
Yes
|
|
USB TO HOST
|
Yes
|
|
Amplifiers and Speakers
|
|
Amplifiers
|
15 W x 2
|
|
Speakers
|
13 cm x 2 + 5 cm x 2
|
|
Power Supply
|
|
Power Supply
|
PA-300C or an equibalent recommended by Yamaha
|
|
Power Consumption
|
19 W
|
|
Auto Power Off Function
|
Yes
|
|
Accessories
|
|
Included Accessories
|
Owner's Manual, Online Member Product Registration, Music
Rest, AC Adaptor(may not be include depending on your area.
Check with your Yamaha dealer.)
|
