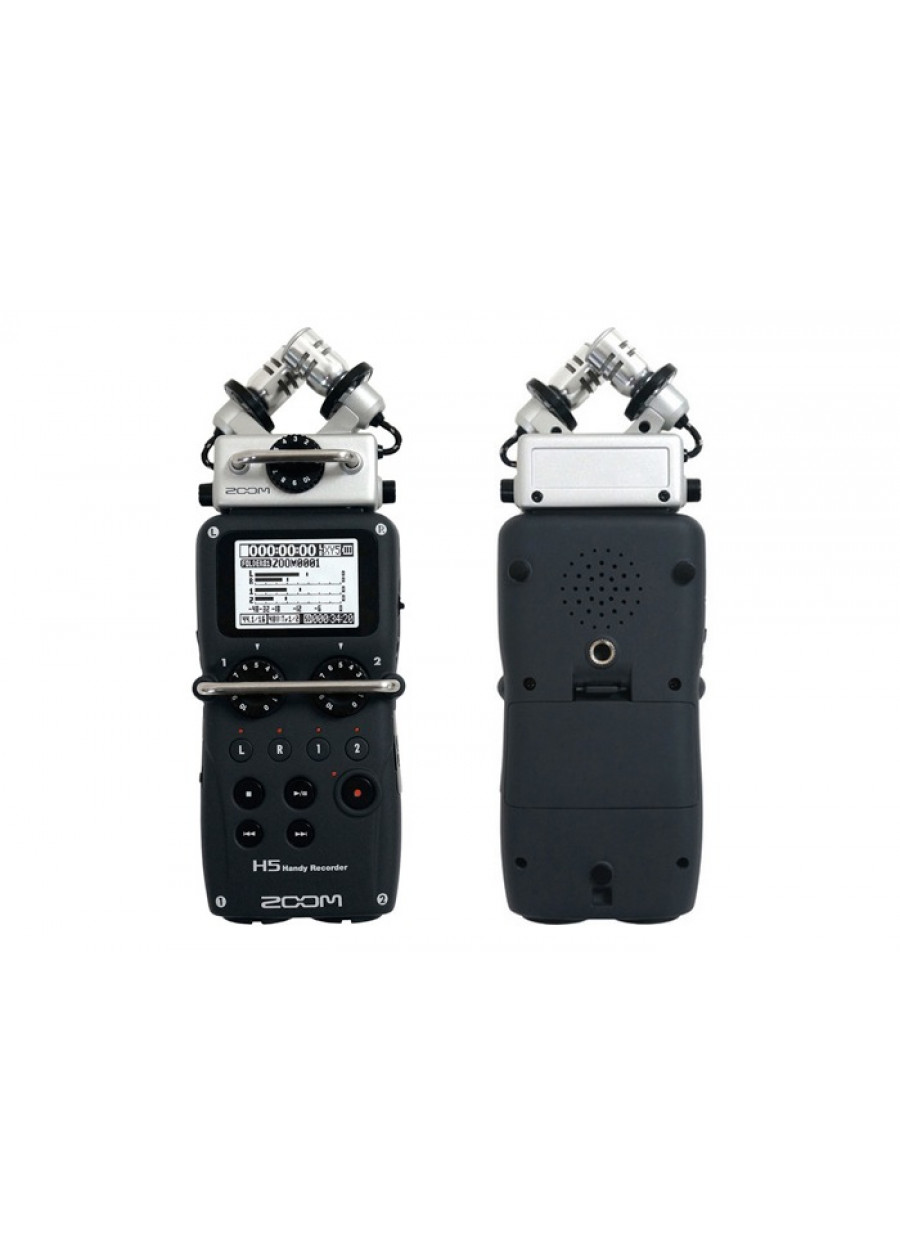

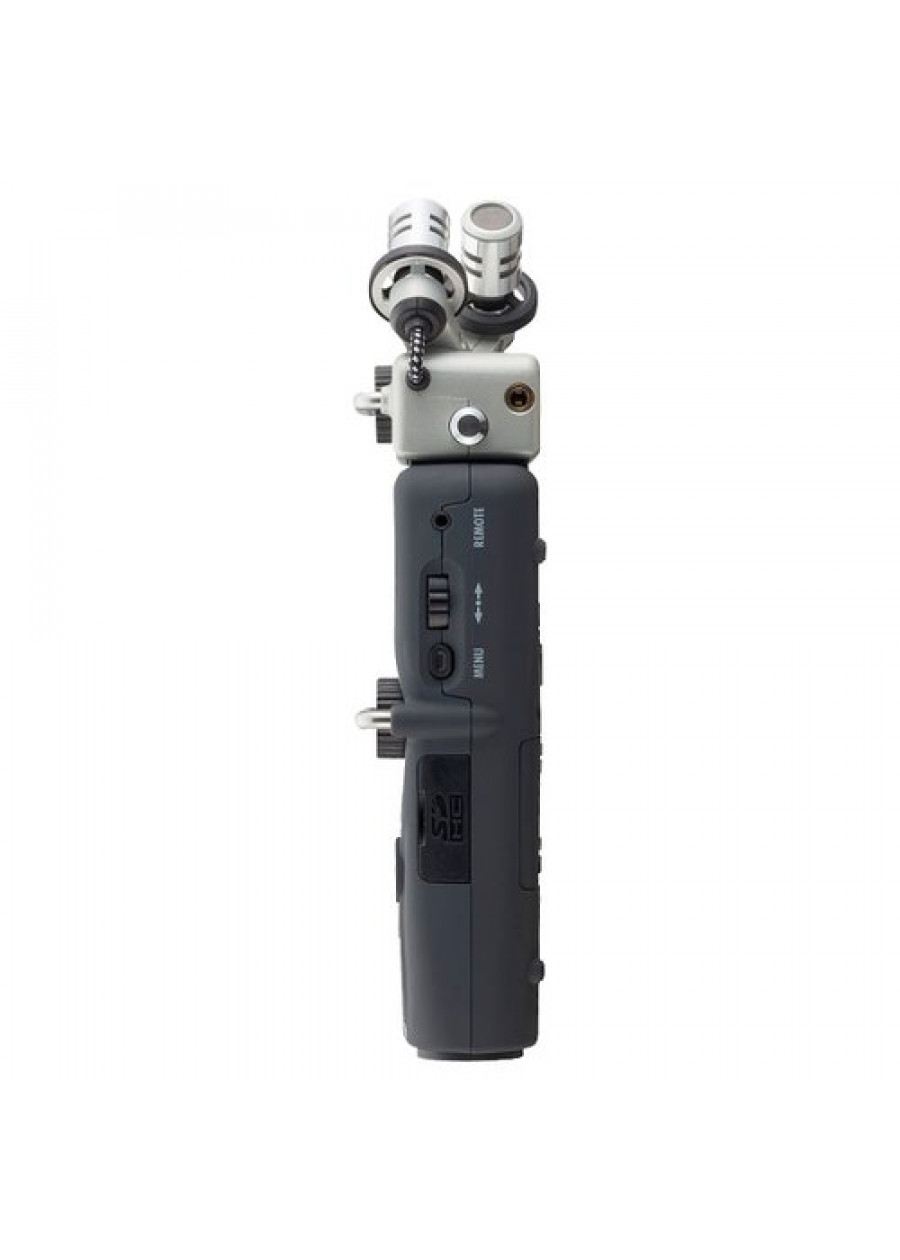

ZOOM Handy Recorder H5

Our products are constantly evolving to meet the needs of the creators who use them. With the H5 Handy Recorder, the tradition continues. The H5 provides four tracks of simultaneous recording and, like our flagship H6, it can use all Zoom interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering.

€299.00

Availability: Out of stock

Manufacturer: ZOOM

Model: H5

SKU: INV03957

Out of stock

SPECS

GENERAL
Recording media:	SD card: 16MB to 2GB , SDHC card: 4GB to 32GB
Display:	Backlit LCD (128 x 64 pixels)
INPUTS
INPUTS L/R [XYH-5 X/Y mic]:	Mic type: Unidirectional Sensitivity: -45 dB, 1 kHz at 1 Pa Input gain: -∞ to 52 dB Max sound pressure input: 140 dB SPL
MIC/LINE IN :	Connector: 1/8" stereo mini jack Input gain: - ∞ to 52 dB Input impedance: 2 k Ω or more Plug-in power: 2.5V supported Backup recording: -12dB lower than set L/R input gain
INPUTS 1/2:	Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot) Input gain (PAD OFF): -∞ to 55.0 dB Input gain (PAD ON): -∞ to 35.0 dB Input impedance: 1.8 k Ω or more Max input level: +22 dBu (PAD ON) Phantom power: +12V /+24V /+48V Equivalent Input Noise (EIN): -120 dBu or less
OUTPUTS
LINE OUT :	Connector: 1/8" stereo mini jack Rated output level: -10 dBm Output load impedance: 10k Ω or more
PHONE OUT :	Connector: 1/8" stereo mini jack Output Level: 20 W +20 W into 32 Ω load
Built-in speaker:	400mw 8 Ω mono
RECORDING FORMATS
STEREO MODE:	WAV (BWF-compliant) Sampling frequency: 44.1/48/96 kHz Bit rate: 16/24 (Stereo) Maximum simultaneous recording tracks: 2 MP3 Sampling frequency: 44.1kHz Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps
MULTITRACK MODE:	WAV (BWF-compliant) Sampling frequency: 44.1/48 kHz Bit rate: 16/24 (Mono/Stereo) Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)
USB
Mass Storage Class operation:	Class: USB 2.0 High Speed
Audio Interface operation: Multitrack mode:	Class: USB 2.0 High Speed Sampling frequency: 44.1/48kHz Bit rate: 16/24 bit Inputs / Outputs: 4 / 2
Audio Interface operation: Stereo mode:	Class: USB 2.0 Full Speed Sampling frequency: 44.1/48kHz Bit rate: 16 bit Inputs / Outputs: 2 / 2 USB bus powered operation possible (iPad operation supported in Stereo mode only)
POWER REQUIREMENTS
	AA size (LR6) battery x 2 AC adapter: AD-17 (DC5V/1A/USB-type) (optional) USB bus power

Additional Information

Manufacturer	ZOOM
Model	H5
